2-7

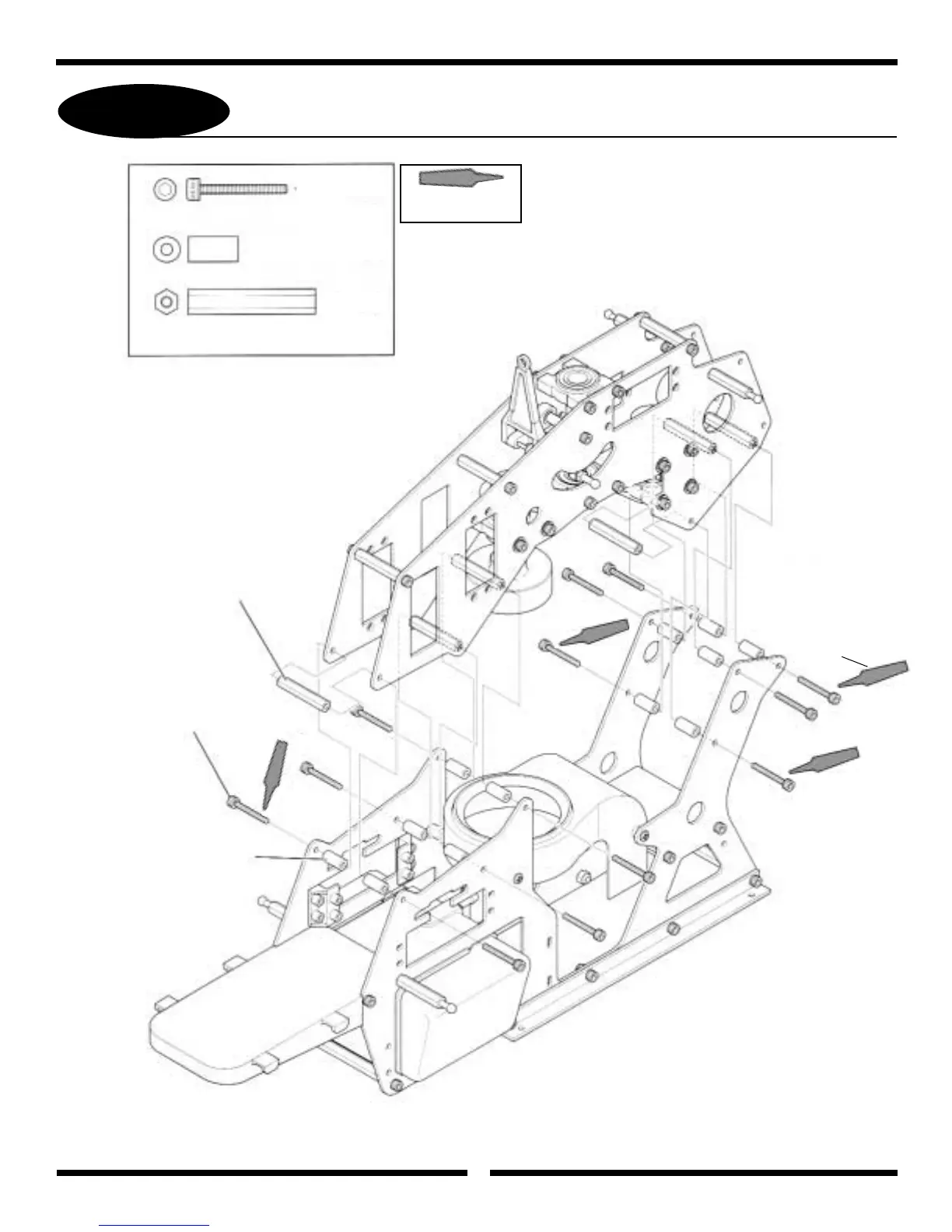

UPPER/LOWER MAIN FRAME ASSEMBLY ATTACHMENT

32mm Main Frame Standoff (6 pcs)

Use Threadlock

32mm Main Frame Standoff

12.5mm Main Frame Spacer

3x22mm Socket Head Bolt

3x22mm Socket Head Bolt (12 pcs)

12.5mm Main Frame Spacer (12 pcs)

Use Blue Threadlock

on all screws

........12 pcs

........6 pcs

Table of Contents2
Introduction3
Ergo .32-.36 & Ergo .46 3D Features4
Items Required to Complete the JR Ergo4
Hardware Identification7
Clutch Bell/Start Shaft Assembly8
Tail Drive Pinion/Bearing Block Assembly8
Elevator Arm Assembly9
Fuel Tank Assembly9
Upper Main Frame Section Assembly10
Upper Main Frame Clutch/Tail Pinion Installation11
Lower Main Frame Assembly12
Fuel Tank Installation12
Front Radio Bed/Gyro Mounting Plate Installation13
Cooling Fan Shroud Installation13
Upper/Lower Main Frame Assembly Attachment14
Main Drive Gear/Autorotation Assembly15
Main Drive Gear/Autorotation Assembly Installation15
Landing Gear Assembly Installation16
32-.36 Cooling Fan/Hub Installation16
.46 Cooling Fan Installation17
.32-.36 Engine Mount Attachment17
.46 Engine Mount Attachment18
Clutch Assembly Attachment (All)18
Engine Installation (All)19
Installation of the Muffler19
Rotor Head Hub Assembly20
Main Blade Holder Assembly20
Main Blade Holder/Seesaw Attachment21
Seesaw Mixing Arm Installation21
Swashplate Adjustment22
Swashplate/Washout Assembly Installation22
Rotor Head Installation23
Flybar Installation24
Flybar Paddle Attachment24
Rotor Head/Swashplate Control Rod Installation25
Tail Output Shaft/Pulley Assembly26
Tail Gear Case Assembly26
Tail Center Hub Assembly27
Tail Blade Holder Assembly27
Tail Pitch Control Lever Installation28
Tail Fin Attachment28
Tail Boom Carrier Installation29
Tail Boom Assembly Installation29
Tail Boom Brace Assembly30
Tail Boom Brace Installation30
Servo Installation31
Tail Control Rod Assembly32
Tail Control Rod Installation32
Gyro/Receiver/Switch Harness/Battery Installation33
- Understanding Swashplate Control Systems34
- Understanding Swashplate Control Systems35
- How JR 120 CCPM Works36
- Radio System Preparation36
- Radio System Requirements36
- CCPM Software Activation and Initial Adjustment37
- Important CCPM Programming Dos and Don'ts40
Servo Arm Preparation & Installation41
CCPM Servo Centering with the Sub-Trim Function42
CCPM Linkage Connections43
Checking the Swashplate for Level44
Pitch-To-Aileron Mixing Adjustment W/Travel Adjust45
Pitch-To-Elevator Mixing Adjustment W/Travel Adjust46
Tail Control Rod Servo Connection47
Body Assembly/Canopy Attachment49
Body Attachment49
Main Rotor Blade Balancing51
Main Rotor Blade Attachment51
Final Servo Adjustment and Radio Set-Up52
Data Sheets55
Final Pre-Flight Check55
General Maintenance68
Rotor Head Assembly69
Rotor Head Assembly Parts List70
Start Shaft/Clutch/Engine Assembly71
Start Shaft/Clutch/Engine Assembly Parts List72
Washout Unit/Ccpm Control System Parts73
Cyclic Mixing Arms/Elevator/Aileron Control Arms Parts List74
Upper Main Frame/Body Set/Main Gear Assembly75
Upper Main Frame/Radio Tray/Body Set Parts List76
Lower Main Frame/Landing Gear/Fuel Tank Assembly77
Lower Main Frame/Landing Gear/Fuel Tank Parts List78
Tail Boom/Tail Blade/Tail Pitch Plate Assembly79
Tail Boom/Tail Blade/Tail Pitch Parts List80
Tail Boom/Tail Brace/Tail Boom Carrier Assembly81
Tail Boom/Tail Brace/Tail Boom Carrier Parts List82
