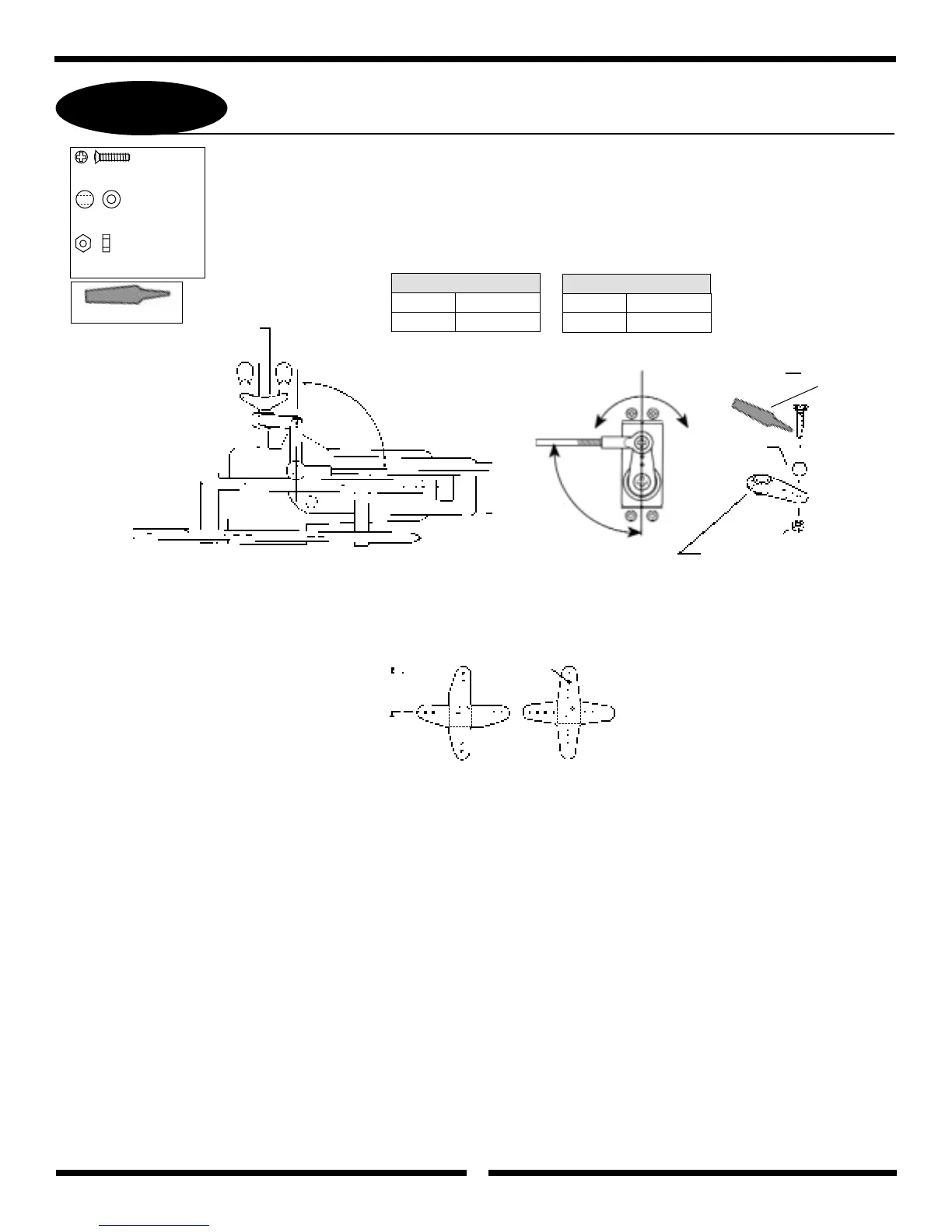

TAIL CONTROL ROD SERVO CONNECTION
..........1 pc
2x8mm Flat Head Screw
..........1 pc
Steel Joint Ball
..........1 pc
2mm Hex Nut
Note: Make certain that the Tail Rotor Servo is in the
neutral or hover position before securing the
Servo Horn to the Servo.
An Important Note: Check to insure the Tail Control Rod can slide through the
Tail Control Rod Guides smoothly before connecting it to the Servo. If resistance is felt,
rotate the Tail Control Rod Guides slightly until the Control Rod slides smoothly.
Tail Control Lever Position at Center Stick
90°
2x8mm Flat
Head Screw
Use Threadlock
2mm Hex Nut
Servo Horn
Servo Reversing Directions
JR Reverse
Futaba Reverse
Servo Reversing Directions
JR Reverse
Futaba Normal
Steel Joint Ball
Right
Left
90°
12.5mm
Use This Hole
JR
Futaba
Servo Horn Hole Selection
47
Use Blue Threadlock
