JR ERGO User Manual

5-9

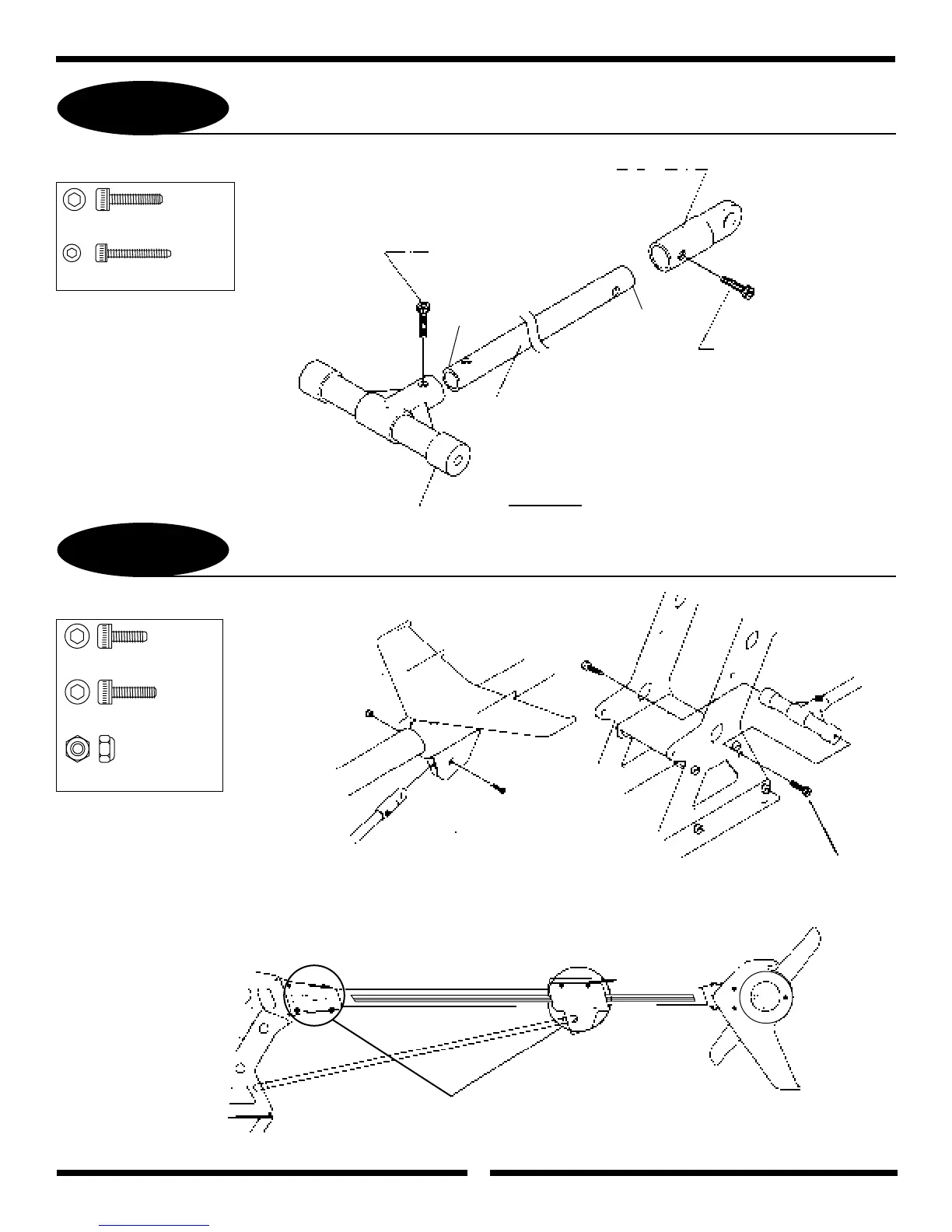

TAIL BOOM BRACE ASSEMBLY
5-10
TAIL BOOM BRACE INSTALLATION
30
2.6x12mm Socket Head Bolt
........1 pc
2.6x15mm Socket Head Bolt
......1 pc
3mm Lock Nut
........1 pc
3x8mm Socket Head Bolt
........2 pcs
3x10mm Socket Head Bolt
........1 pc
Secure the eight Socket Head Bolts left loose from
Step 5-6. Make sure that the Horizontal Fin is level.
Tail Brace Connector
2.6x15mm Socket Head Bolt
*
*
Tail Brace Tube
Tail Brace T End
2.6x12mm Socket Head Bolt
3x10mm Socket Head Bolt
3mm Lock Nut
3x8mm Socket Head Bolt (2 pcs)
* For added boom brace strength,
bond the tail brace ends to the tube
after assembly with thick CA
adhesive.
