The following activation and set-up procedure should be used for all JR PCM10, 10S, 10SX, 10SxII, and 10X systems.
Prior to activating the CCPM function, it is first suggested that a Data Reset Function be performed to reset the desired model number to
be used back to the factory default settings.
Caution: prior to performing the Data Reset Function, it will be necessary to select the desired model number to be used. Access the Model
Select Function (Code 84) and select the desired model to be used.
A) Access the Data Reset Function (Code 28) once the correct model number has been established. Next, press the C
LEAR
key to reset the
current model. Press the E
NTER
key to exit the Data Reset Function.
B) Access the Swash Type Function (Code 65). Next, press the SEL key until 3 SERVOS (120°) appear on the screen. Once this is complete,
it will be necessary to change the value of the Pitch Function from the factory default setting of +60, to a value of -50 using the + and -
keys below the pitch value. Press E
NTER
to exit the Swash Type Function.
C) Access the Servo Reversing Function (Code 11). Next, reverse channels 1, 2, and 4 by pressing the desired channel number. The screen
should appear as shown. Press E
NTER
to exit the Servo Reversing Function.
D) Access the Travel Adjust Function (Code 12) and adjust the servo travel values as shown. Please note that the required travel values will
vary based on the type of servo selected. Press E
NTER
to exit the Travel Adjust Function.
Note: The travel values shown for the rudder function are for use with Piezo type gyros, like the JR NEJ-900, NEJ-400, NEJ-450, or NEJ-3000
type gyros. If a conventional mechanical type gyro is used (JR 120, 130 etc.), then the travel value of the rudder channel will need to be
reduced to approximately 100%.

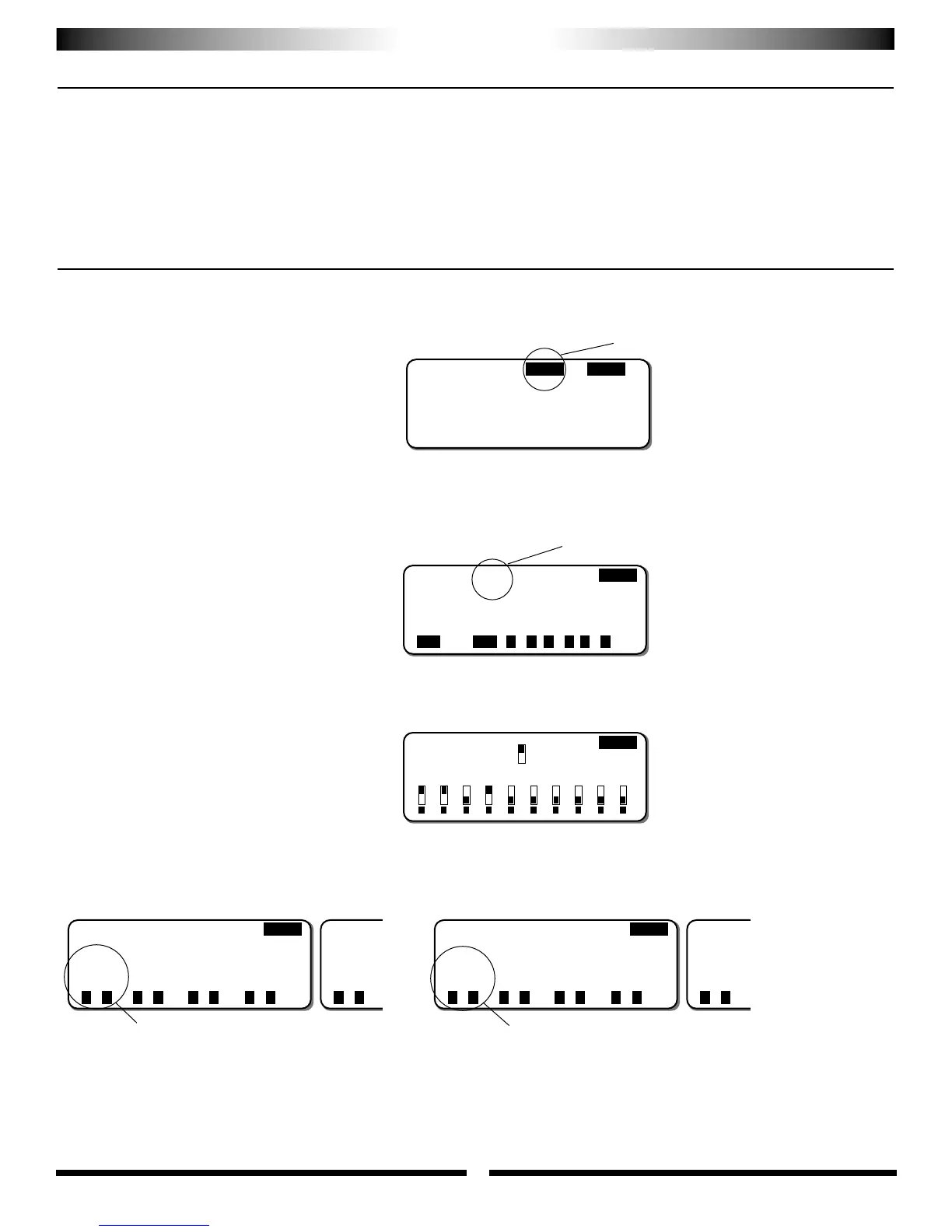

CCPM SOFTWARE ACTIVATION AND INITIAL ADJUSTMENT
37
1. JR 10 SERIES SYSTEMS
SET-UP PROCEDURE
[DATA RESET]
MODEL 1 SPCM
CLEAR ENTER
[SWASH TYPE]
3SERVOS(120
•
)
FXP AILE ELEV PITCH
[NH +60% +60% -50%
ENTER
SEL ACT + –
CL
+ –
CL
+ –
CL
[REVERSE SW]
REVERSE
NORMAL
ENTER
1 2 3 4 5 6 7 8 9 10
[TRAVEL ADJUST]
THRO AILE ELEV RUDD
H130% L120% D120% L150%
L130% R120% U120% R150%
PAG E
+ –
CL
+ –
CL
+ –
CL
+ –
CL
[TRAVELADJUST]
PITCH
+120%
-120%
+ –
CL
+ –
CL
[TRAVEL ADJUST]
THRO AILE ELEV RUDD
H110% L100% D100% L150%
L110% R100% U100% R150%
PAG E
+ –
CL
+ –
CL
+ –
CL
+ –
CL
[TRAVEL ADJUST]
PITCH
+100%
-100%
+ –
CL
+ –
CL
+ –
CL
[CLEAR]
SELECT 3 SERVOS(120°)
Digital Servos/Super Servos
Throttle travel values may vary
depending upon engine used
Standard Servos
Throttle travel values may vary
depending upon engine used
To Next Page
