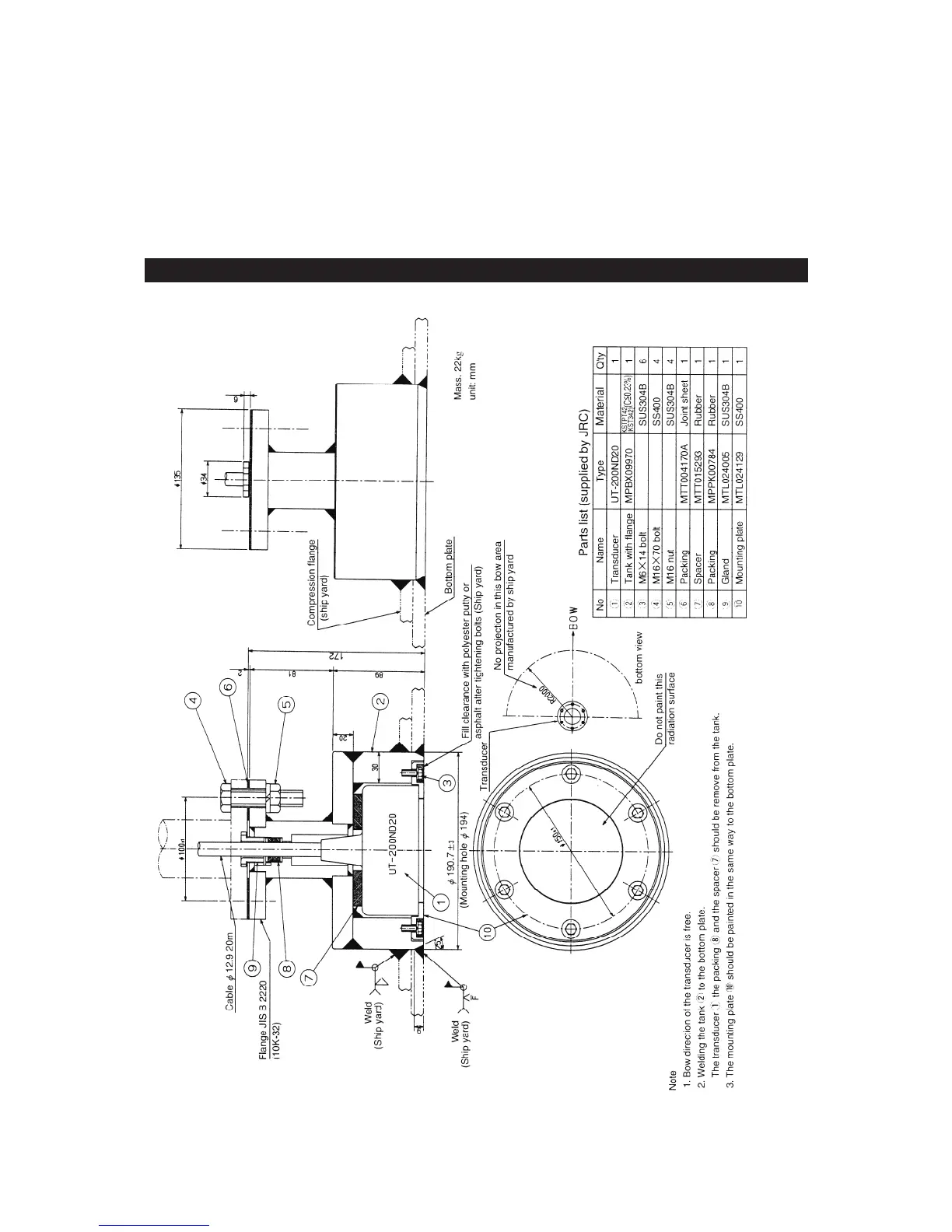

5.2 Installing the Transducer
The external dimensions illustrated below are for the standard equipment. Please refer to
the separately supplied drawings if your specifications are not standard.
NKF-341
5. Installation 41
