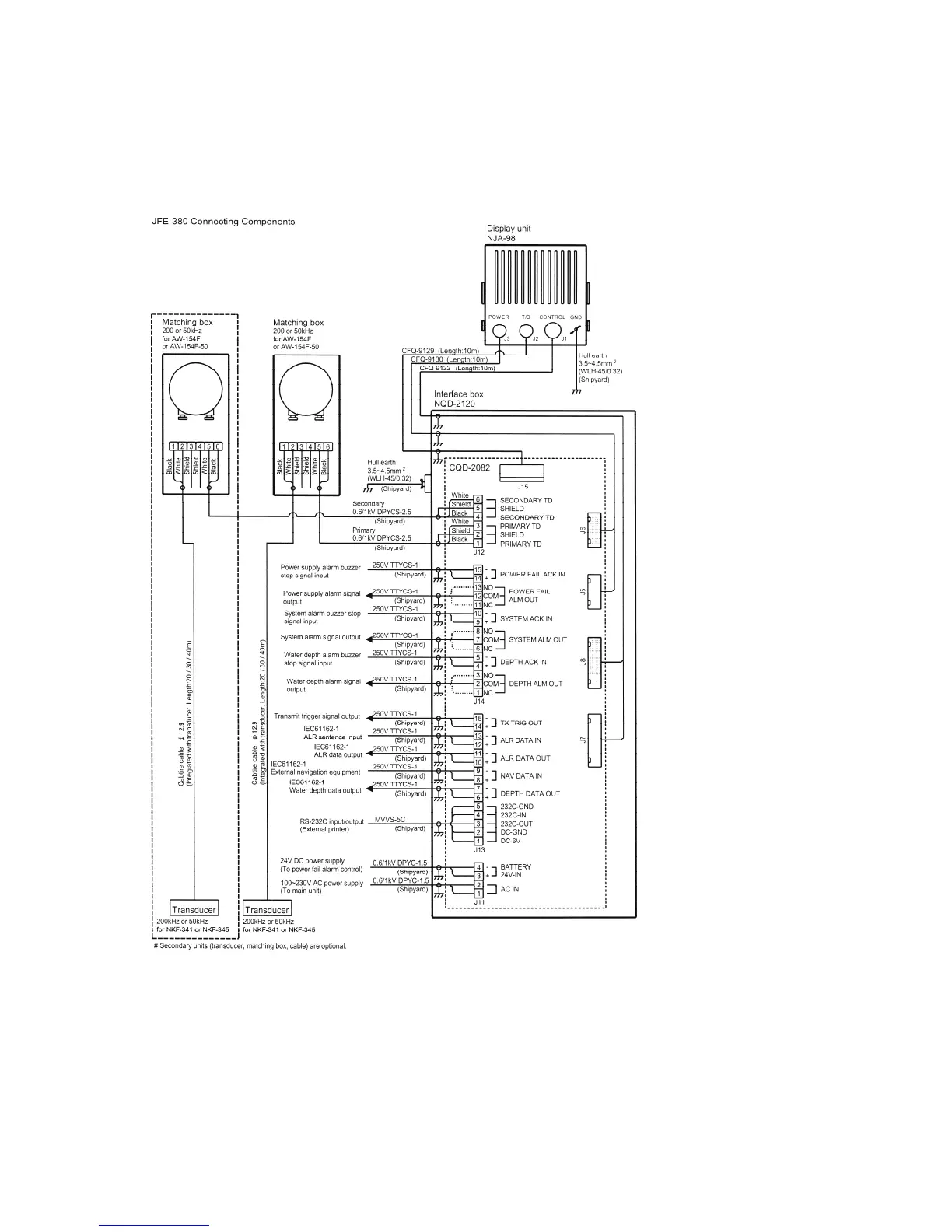

5.3 Connecting Component
s
Notes:
1. The shield o
f each cable must be securely attached to the connectors a
nd must not
contact any other connectors, etc.
2. Casings must be ground
ed securely to the ship’
s hull using copper plates.
3. The exterior is to be gro
unded to the ship’
s hull cable bands.
4. Select NC/NO for Depth
Alarm, System
Alarm a
nd Power Fail
Alarm.
5.
Installation 44
55
57
Table of Contents
General Information
3
Before You Begin
4
Usage Hints
5
External View
9
Explanation of Terms
10
Table of Contents
11
1 Introduction
13
Function
13
Feature
13
Components
14
Construction
15
System Configuration
17
2 Control Panel
18
3 Display
19
Standard Mode (Dual Frequency)
19
History Mode
20
Docking Mode
21
4 Operation
22
Basic Operations
22
Turning Power ON/OFF [PWR/PANEL]
22
Adjusting Control Panel Illumination [PWR/PANEL]
22
Adjusting Screen Brilliance [BRILL]
22
Range Control [RANGE+][RANGE-]
22
Gain Control [GAIN+][GAIN-]
23
Selecting Display Mode [MODE]
24
Selecting Display Color of Day/Night [DAY/NIGHT]
24
Displaying Menu [MENU]
24
Registering Setting [ENT]
24
Cancelling Menu [CLR]
25
Stopping Buzzer [ACK]
25
Up and down Key Cursor [CURSOR]
25
Right and Left Key Cursor [CURSOR]
26
Menu List
27
Display Setting
29
Selecting Image Scrolling Speed
29
Noise Suppression
29
Interference Rejection
29
Setting Auto Gain
30
Setting Auto Range
30
Setting FWD/AFT Draft
30
Setting Cursor Display
31
Alarm Setting
32
Setting Buzzer Key
32
Setting Relay
32
Setting Depth Alarm
33
Setting System Alarm
34
Initial Setting
37
Setting Memory Length
37
Setting Display Color of Day/Night
37
Setting Depth Display
38
Setting Primary (Secondary) Transducer
39
Setting Adjustment of Date and Time
41
Printer Control Setting
42
Setting Print Output
42
Setting Print Mode
42
Setting Log Book Print
45
Setting Log Output Length
45
Setting Transfer Speed
45
Setting Printer Model Selection
45
Communication Setting
46
Setting Depth Output
46
Setting Alarm Output
46
Setting System Output
49
Setting Printer Port Output
49
Master Reset
49
5 Installation
50
Installing the Recorder Unit
51
Flush-Mount Equipment
51
Wall-Mount Equipment
52
Installing the Transducer
53
Nkf-341
53
Nkf-345
54
Nkf-392C
55
Connecting Components
56
6 Maintenance & Check
57
Daily Maintenance
57
Maintenance Function
58
Executing Self Test
58
Deleting Alarm Log
60
Displaying Alarm Log
60
Outputting Alarm Log
60
Displaying RX Monitor
61
Displaying System no
61
Executing Line Monitor
61
Replacing Printer Paper
62
Replacing Backup Battery
63
Troubleshooting
65
Replacing Fuses
66
Repair Parts
67
7 Consider Installation
68
8 After-Sales Service
69
When Requesting Servicing
69
Recommendations for Inspection and Maintenance
69
Warranty & After-Sales Service
70
9 Disposal
71
Disposal of this Equipment
71
10 Specifications
72
Appendix
73
Noise
73
Actual Pictures
74
Seabed Quality Change
75
Abrupt-Sloped Seabed
76
China Rohs
78
