6.6 Replacing Fuses
Exchange the fuse for the one of our specification. Exchange it after confirming the cause to which the fuse
is blown. Moreover, turn off the main switch of the power supply CQD-2082 when you exchange fuses
(Press 䂾 sign side).
No. Model type Rating Remarks
F1 250V A TLC 5A 250V 5A
For power supply in this
equipment
F2 MF51NR 250V 0.5 or equivalent 250V 0.5A
For power supply alarm
circuit in this equipment
F3 MF51NR 250V 2 or equivalent 250V 2A
For built-in printer power
supply
F4 MF51NR 250V 2
250V 2A
For display power supply

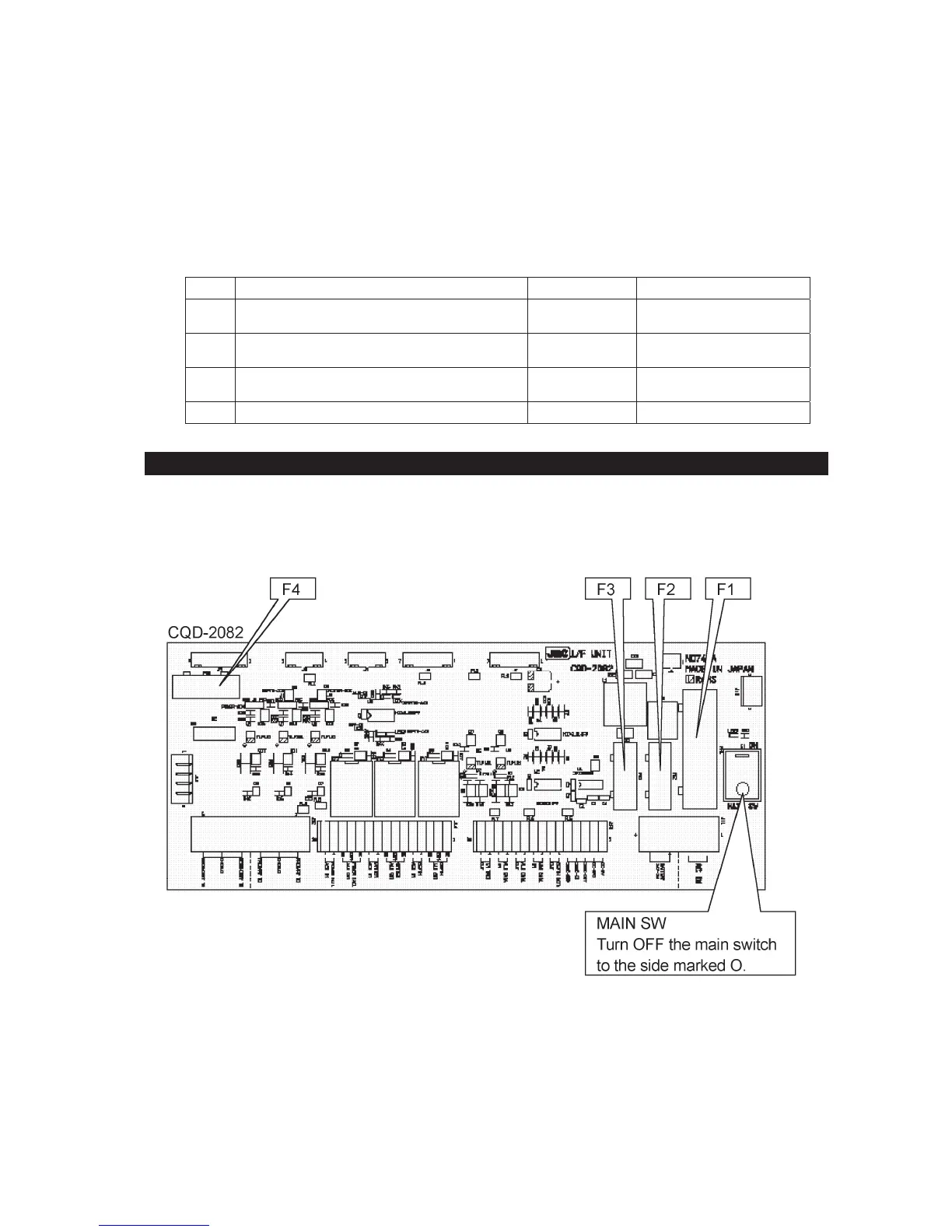

㩷㩷Fuse Positions 㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷㩷
Use only the specified fuses, and check the cause of the fuses blowing before replacing them. Be
sure to turn OFF the main power switch (to the side marked O) on the power supply (CQD-2082)
before replacing the fuses.
