3. Display
3-1
3. Display mode
3.1 Standard mode
Standard mode displays real time sounding echoes

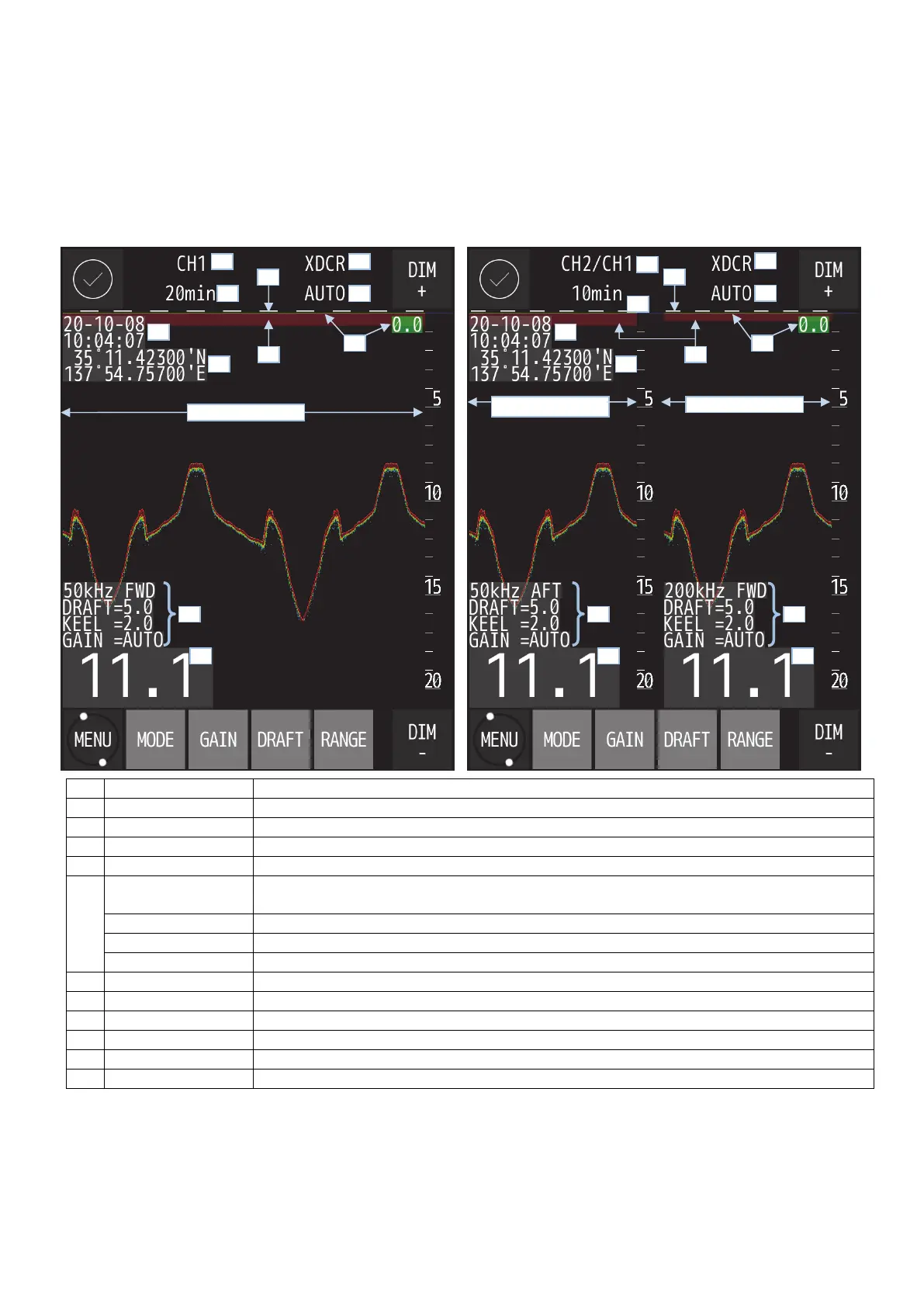

[Sample screen at single frequency] [Sample screen at dual frequency]
No. Function Description
1 Display mode The current display mode and CH number are displayed.
2 Display time The scroll time of the echo drawing area is displayed.
3 Date and time
Date and time information from GPS are displayed. When not connected, the internal clock will be displayed.
4 Latitude / Longitude Latitude / Longitude from GPS is displayed.
5 Frequency and
equipment position
The frequency and equipment position of the transducer are displayed.
Draft value The entered draft value is displayed.
Keel value The entered keel value is displayed.
Gain value The current gain value is displayed. “Auto” is displayed when auto gain is selected.
6 Depth value The current water depth value is displayed digitally.
7 Depth display setting The currently selected depth display setting is displayed.
8 Range The current display range is displayed. "Auto" is displayed when auto range is selected.
9 Minutes mark Displayed at 1-minute intervals in echo drawing area. The length of the mark is 1 minute.
10 Depth cursor Displays the depth cursor and its water depth value.
11 Oscillation line
The transmission line from the transducer is drawn horizontally at the top of the echo drawing area.
Note:
・ The display position at 2 frequencies changes depending on the transducer settings of CH1
and CH2 (Which CH is primary or secondary depends on the specifications of each ship).
・ FWD sounding data is displayed on the right side.
・ LAT/LON display needs to connect position data device.
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5 5
6 6
7
8
9
10
Echo drawing area
Echo drawing area
Echo drawin
area
11 11
