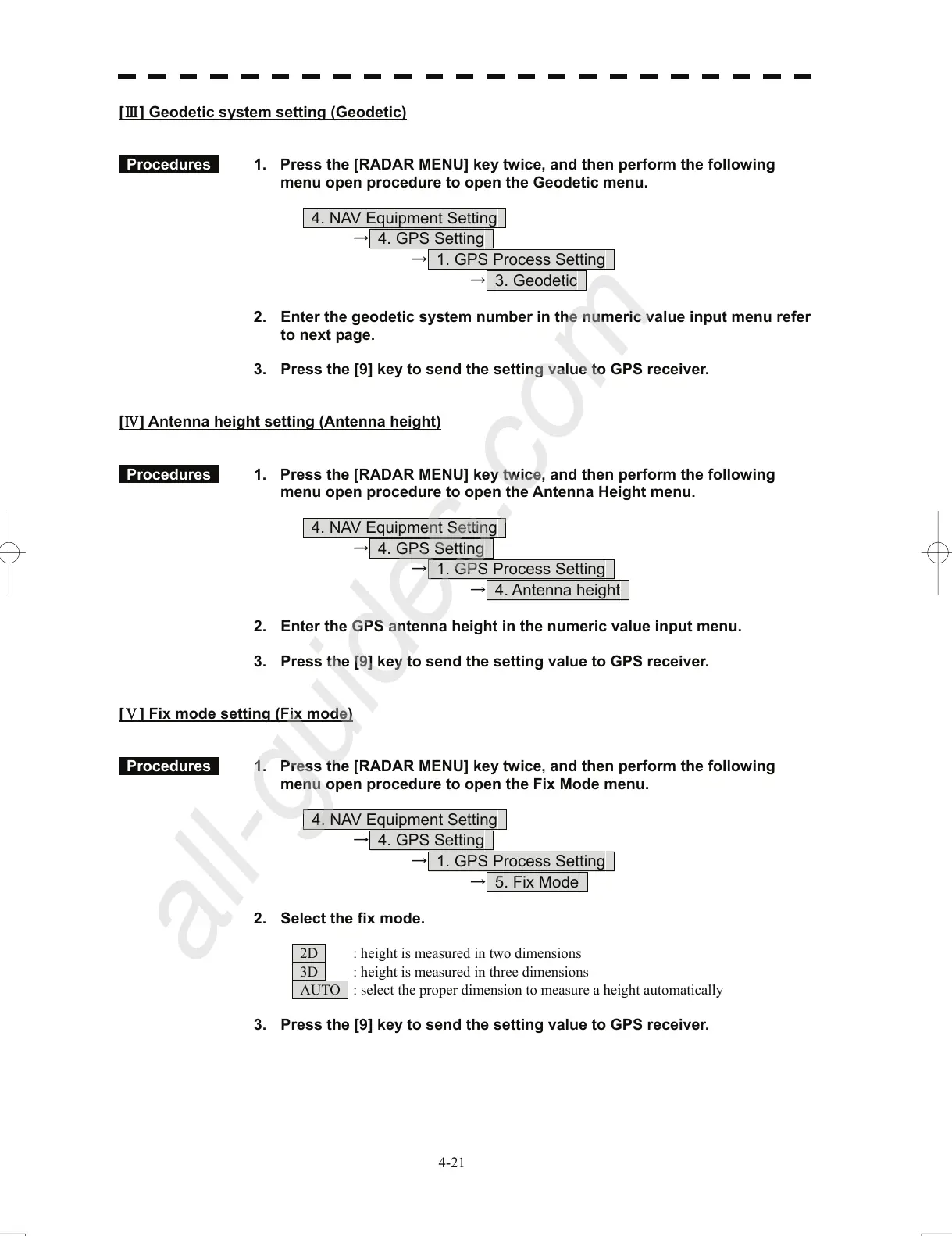

[Ⅲ] Geodetic system setting (Geodetic)
Procedures 1. Press the [RADAR MENU] key twice, and then perform the following
menu open procedure to open the Geodetic menu.
4. NAV Equipment Setting
→ 4. GPS Setting
→ 1. GPS Process Setting
→ 3. Geodetic
2. Enter the geodetic system number in the numeric value input menu refer
to next page.
3. Press the [9] key to send the setting value to GPS receiver.
[Ⅳ] Antenna height setting (Antenna height)
Procedures 1. Press the [RADAR MENU] key twice, and then perform the following
menu open procedure to open the Antenna Height menu.
4. NAV Equipment Setting
→ 4. GPS Setting
→ 1. GPS Process Setting
→ 4. Antenna height
2. Enter the GPS antenna height in the numeric value input menu.
3. Press the [9] key to send the setting value to GPS receiver.
[Ⅴ] Fix mode setting (Fix mode)
Procedures 1. Press the [RADAR MENU] key twice, and then perform the following
menu open procedure to open the Fix Mode menu.
4. NAV Equipment Setting
→ 4. GPS Setting
→ 1. GPS Process Setting
→ 5. Fix Mode
2. Select the fix mode.
2D : height is measured in two dimensions
3D : height is measured in three dimensions
AUTO : select the proper dimension to measure a height automatically
3. Press the [9] key to send the setting value to GPS receiver.
