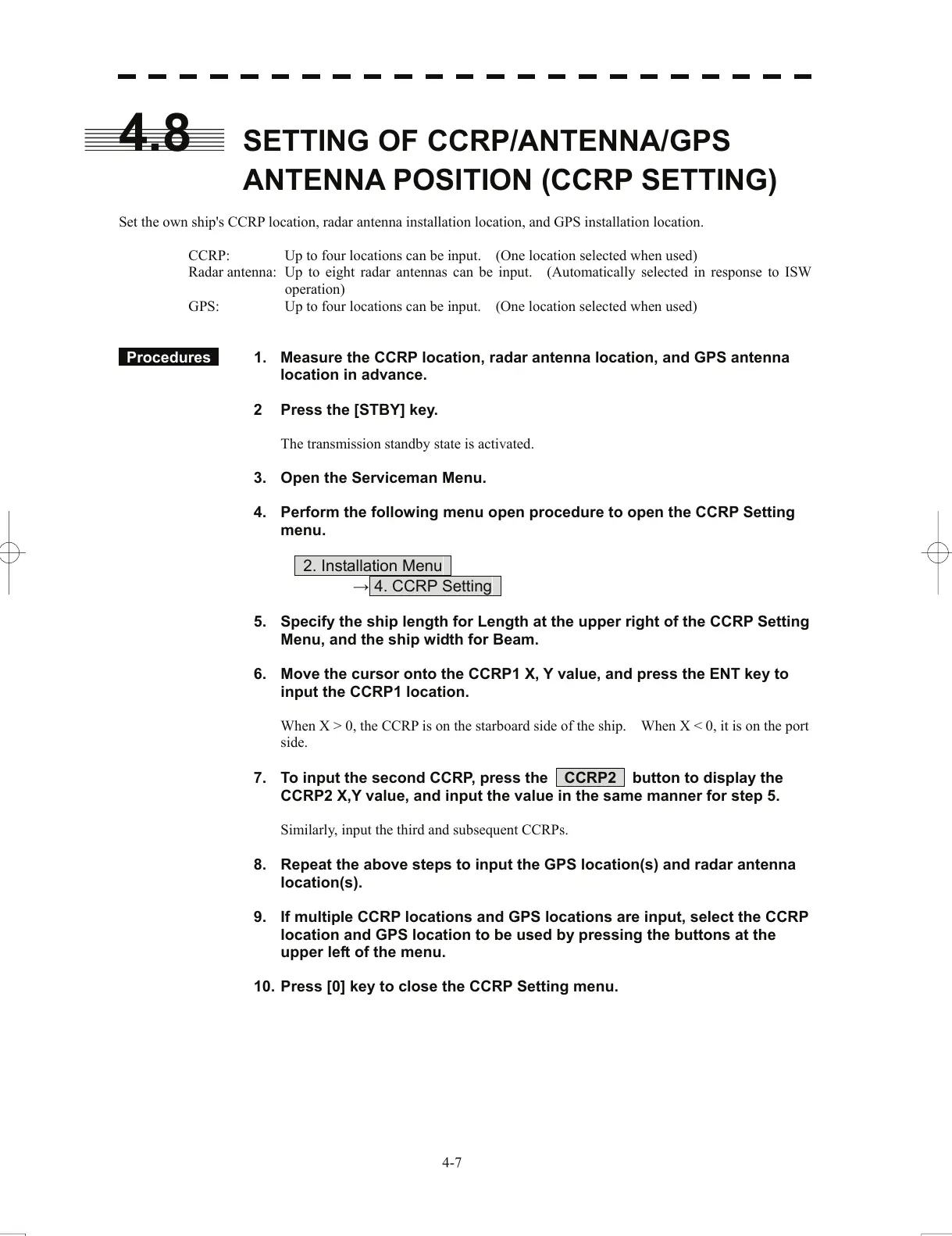

4.8 SETTING OF CCRP/ANTENNA/GPS
ANTENNA POSITION (CCRP SETTING)
Set the own ship's CCRP location, radar antenna installation location, and GPS installation location.
CCRP: Up to four locations can be input. (One location selected when used)
Radar antenna: Up to eight radar antennas can be input. (Automatically selected in response to ISW
ope
rat
ion)
GPS: Up to four locations can be input. (One location selected when used)
Procedures 1. Measure the CCRP location, radar antenna location, and GPS antenna
location in advance.
2 Press the [STBY] key.
The transmission standby state is activated.
3. Open the Serviceman Menu.
4. Perform the following menu open procedure to open the CCRP Setting
menu.
2. Installation Menu
→ 4. CCRP Setting
5. Specify the ship length for Length at the upper right of the CCRP Setting
Menu, and the ship width for Beam.
6. Move the cursor onto the CCRP1 X, Y value, and press the ENT key to
input the CCRP1 location.
When X > 0, the CCRP is on the starboard side of the ship. When X < 0, it is on the port
side.
7. To input the second CCRP, press the CCRP2 button to display the
CCRP2 X,Y value, and input the value in the same manner for step 5.
Similarly, input the third and subsequent CCRPs.
8. Repeat the above steps to input the GPS location(s) and radar antenna
location(s).
9. If multiple CCRP locations and GPS locations are input, select the CCRP
location and GPS location to be used by pressing the buttons at the
upper left of the menu.
10. Press [0] key to close the CCRP Setting menu.
4-7
