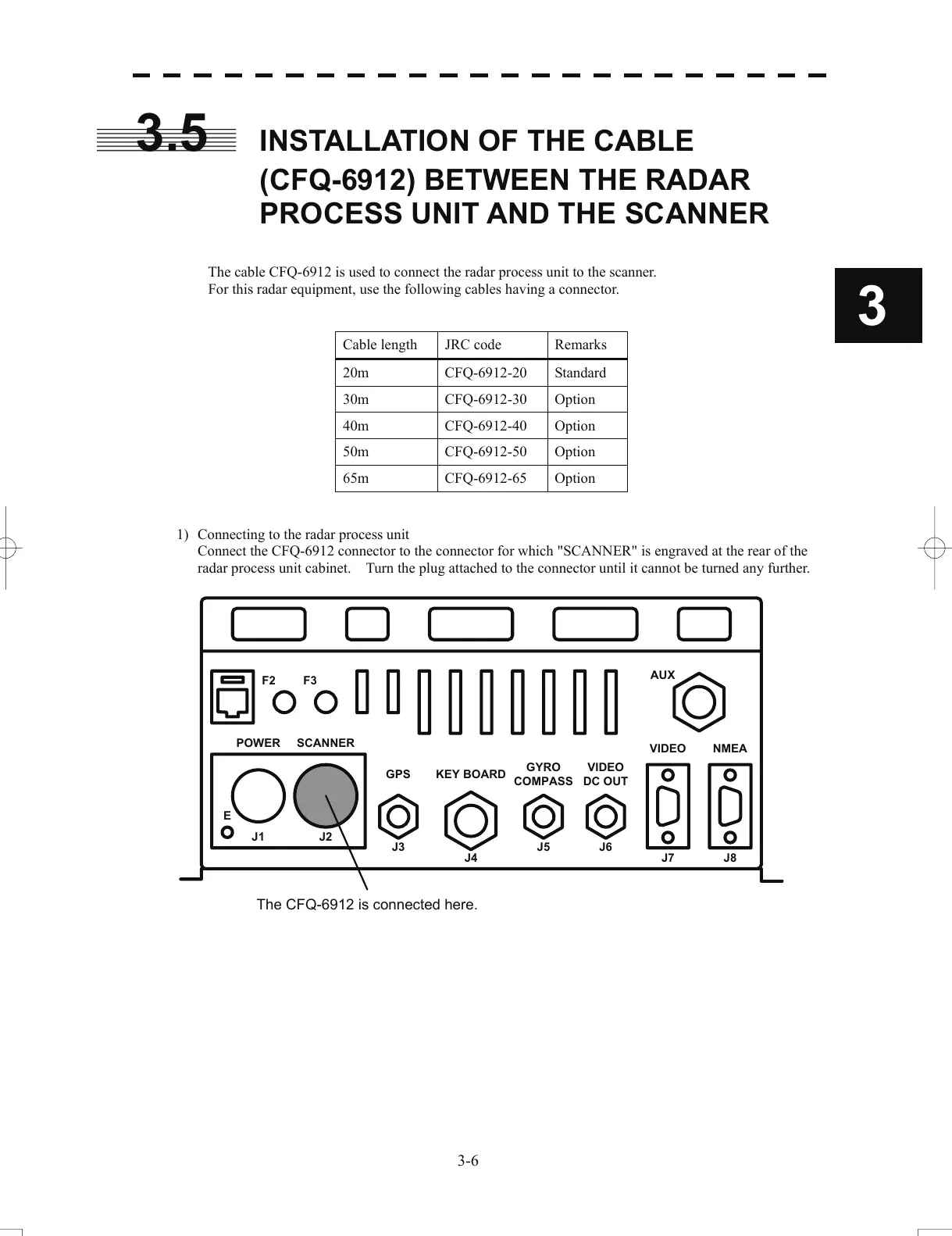

3.5 INSTALLATION OF THE CABLE
(CFQ-6912) BETWEEN THE RADAR
PROCESS UNIT AND THE SCANNER
The cable CFQ-6912 is used to connect the radar process unit to the scanner.
3
For this radar equipment, use the following cables having a connector.
Cable length JRC code Remarks
20m CFQ-6912-20 Standard
30m CFQ-6912-30 Option
40m CFQ-6912-40 Option
50m CFQ-6912-50 Option
65m CFQ-6912-65 Option
1) Connecting to the radar process unit
Connect the CFQ-6912 connector to t
h
e connector for which "SCANNER" is engraved at the rear of the
radar process unit cabinet. Turn the plug attached to the connector until it cannot be turned any further.
The CFQ-6912 is connected here.
F2 F3
POWER SCANNER
KEY BOARDGPS
GYRO
COMPASS
VIDEO
DC OUT
VIDEO NMEA
AUX
E
J2J1
J7
J6J5
J4
J3
J8
3-6
