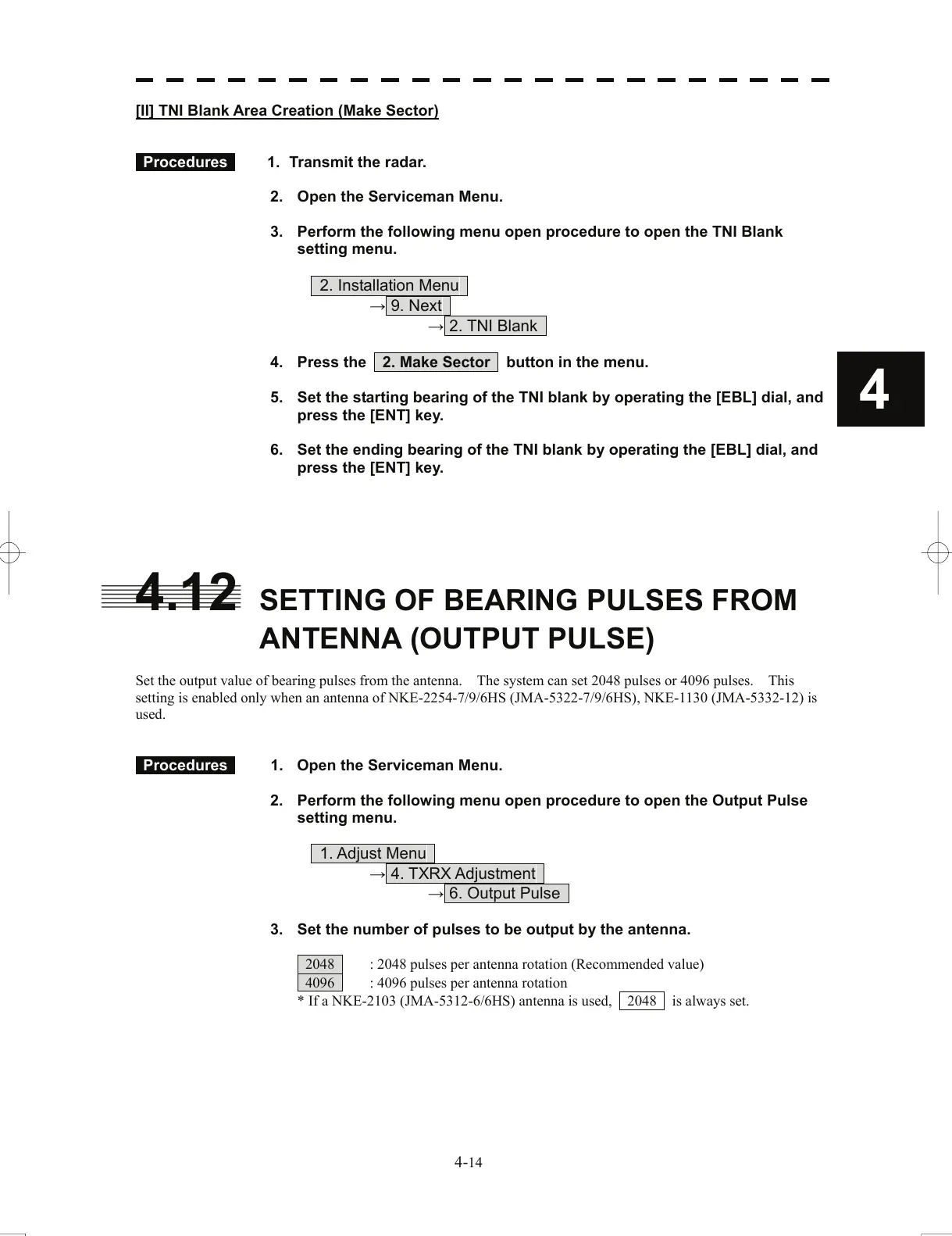

[II] TNI Blank Area Creation (Make Sector)
Procedures 1. Transmit the radar.
2. Open the Serviceman Menu.
3. Perform the following menu open procedure to open the TNI Blank
setting menu.
2. Installation Menu
→ 9. Next
→ 2. TNI Blank
4. Press the 2. Make Sector button in the menu.
5. Set the starting bearing of the TNI blank by operating the [EBL] dial, and
press the [ENT] key.
6. Set the ending bearing of the TNI blank by operating the [EBL] dial, and
press the [ENT] key.
4.12 SETTING OF BEARING PULSES FROM
ANTENNA (OUTPUT PULSE)
Set the output value of bearing pulses from the antenna. The system
can set 2048 pulses or 4096 pulses. This
setting is enabled only when an antenna of NKE-2254-7/9/6HS (JMA-5322-7/9/6HS), NKE-1130 (JMA-5332-12) is
used.
Procedures 1. Open the Serviceman Menu.
2. Perform the following menu open procedure to open the Output Pulse
setting menu.
1. Adjust Menu
→ 4. TXRX Adjustment
→ 6. Output Pulse
3. Set the number of pulses to be output by the antenna.
2048 : 2048 pulses per antenna rotation (Recommended value)
4096 : 4096 pulses per antenna rotation
* If a NKE-2103 (JMA-5312-6/6HS) antenna is used, 2048 is always set.
