4

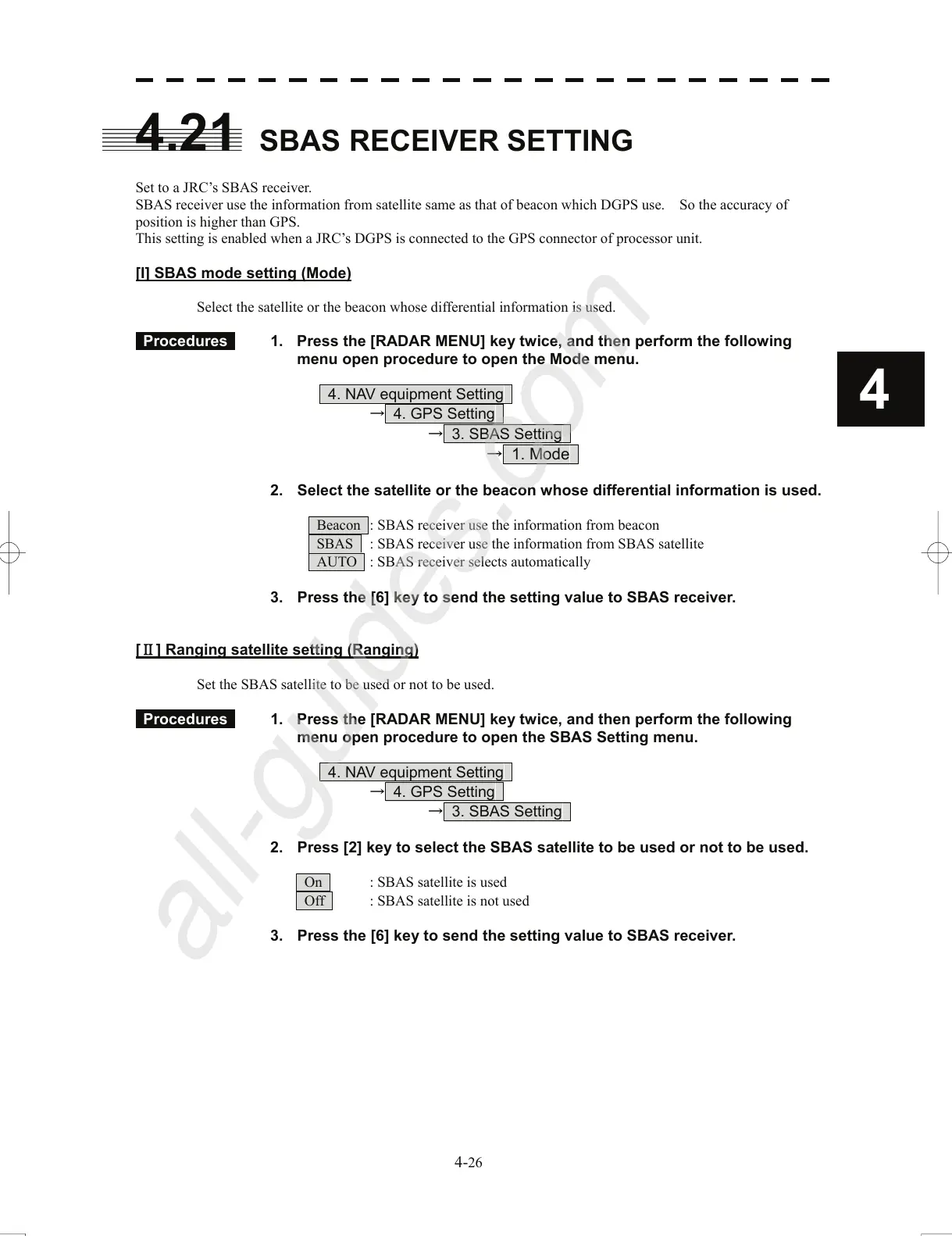

4.21 SBAS RECEIVER SETTING
Set to a JRC’s SBAS receiver.
SBAS receiver use the information from satellite same as that of beac
on
which DGPS use. So the accuracy of
position is higher than GPS.
This setting is enabled when a JRC’s DGPS is connected to the GPS connector of processor unit.
[I] SBAS mode setting (Mode)
Select the satellite or the beacon whose differential information is used.
Procedures 1. Press the [RADAR MENU] key twice, and then perform the following
menu open procedure to open the Mode menu.
4. NAV equipment Setting
→ 4. GPS Setting
→ 3. SBAS Setting
→ 1. Mode
2. Select the satellite or the beacon whose differential information is used.
Beacon : SBAS receiver use the information from beacon
SBAS : SBAS receiver use the information from SBAS satellite
AUTO : SBAS receiver selects automatically
3. Press the [6] key to send the setting value to SBAS receiver.
[Ⅱ] Ranging satellite setting (Ranging)
Set the SBAS satellite to be used or not to be used.
Procedures 1. Press the [RADAR MENU] key twice, and then perform the following
menu open procedure to open the SBAS Setting menu.
4. NAV equipment Setting
→ 4. GPS Setting
→ 3. SBAS Setting
2. Press [2] key to select the SBAS satellite to be used or not to be used.
On : SBAS satellite is used
Off : SBAS satellite is not used
3. Press the [6] key to send the setting value to SBAS receiver.
4-26
