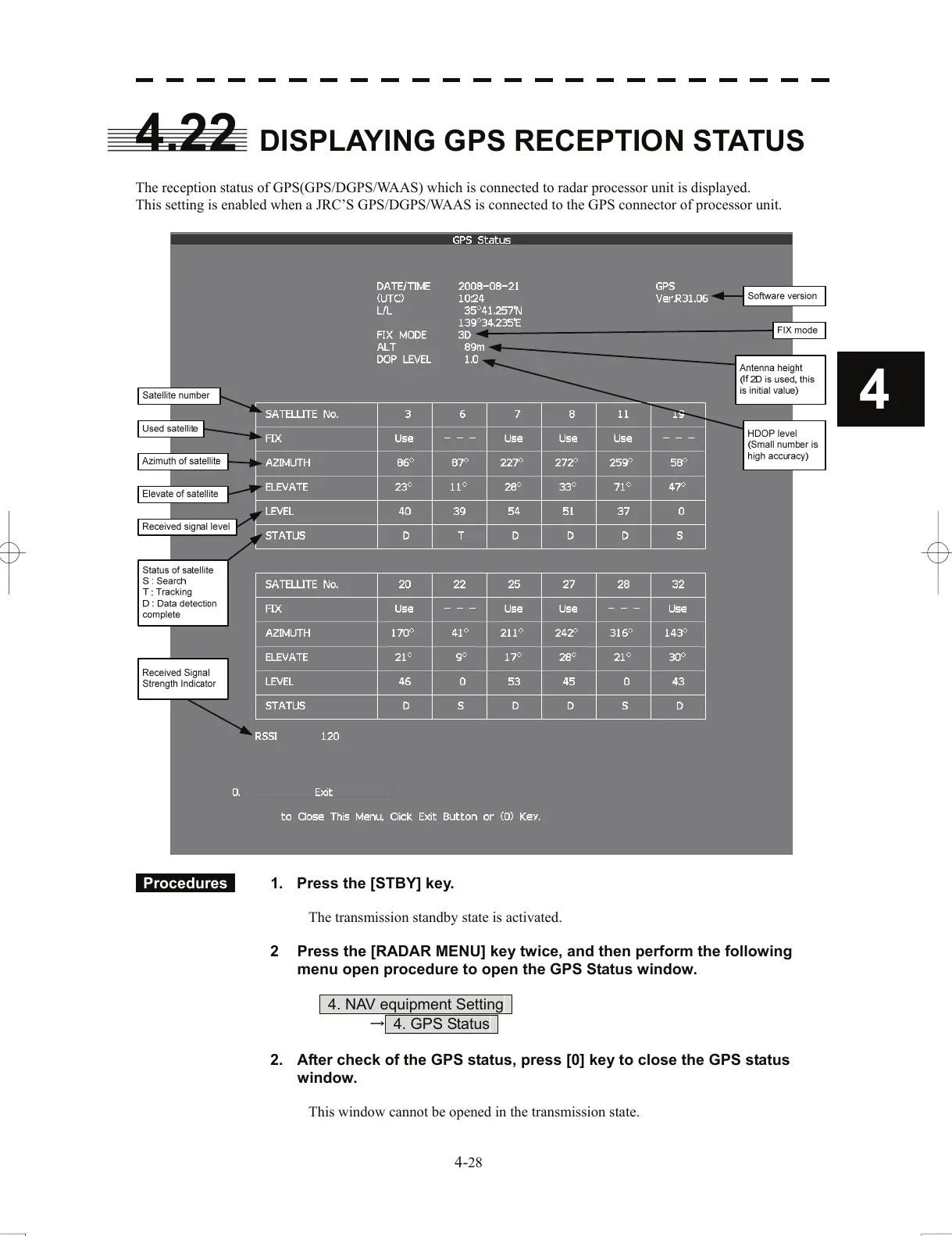

4.22 DISPLAYING GPS RECEPTION STATUS
The reception status of GPS(GPS/DGPS/W
AAS) which is connected to radar processor unit is displayed.
This setting is enabled when a JRC’S GPS/DGPS/WAAS is connected to the GPS connector of processor unit.
Procedures 1. Press the [STBY] key.
The transmission standby state is activated.
2 Press the [RADAR MENU] key twice, and then perform the following
menu open procedure to open the GPS Status window.
4. NAV equipment Setting
→ 4. GPS Status
2. After check of the GPS status, press [0] key to close the GPS status
window.
This window cannot be opened in the transmission state.
4-28
