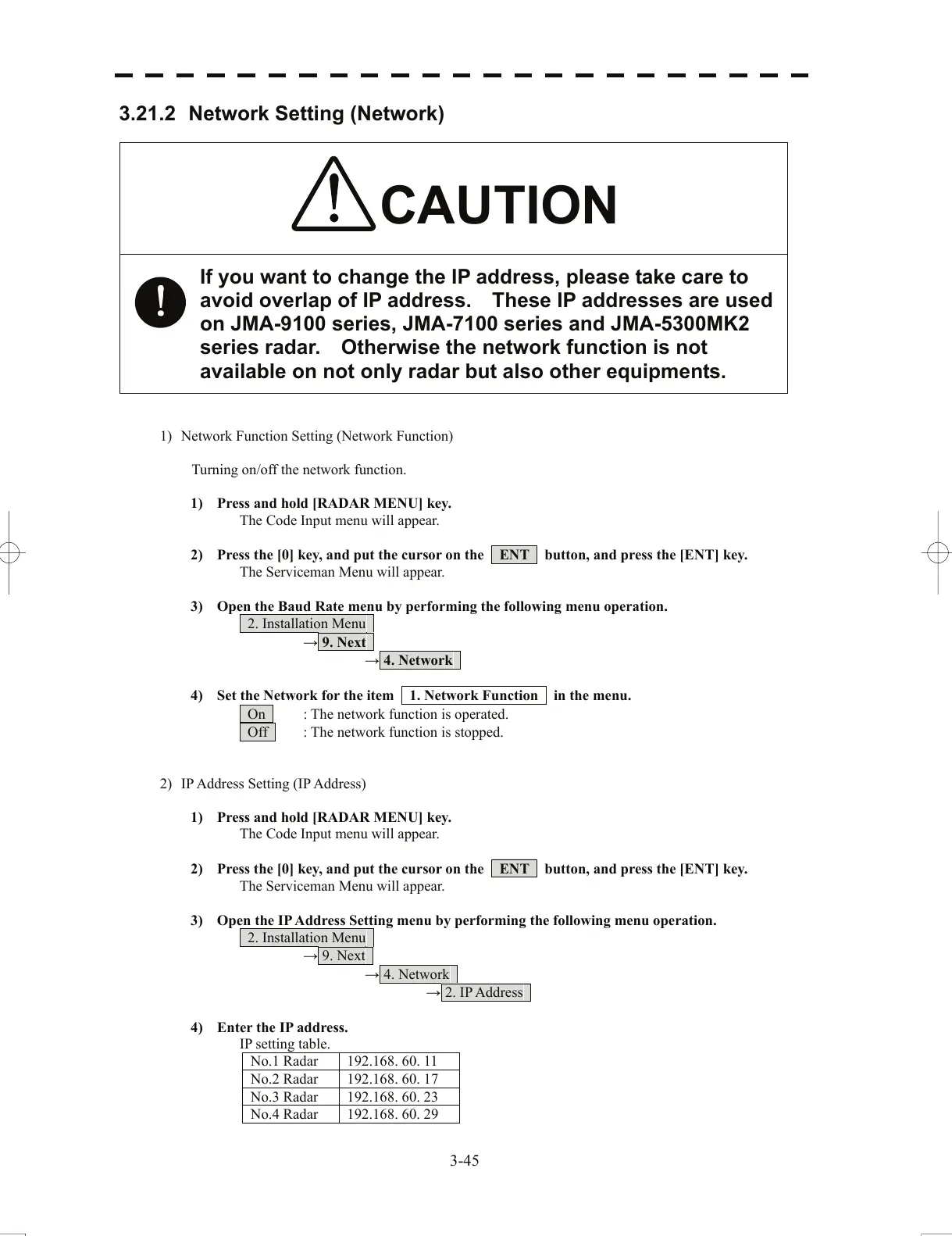

3.21.2 Network Setting (Network)
CAUTION
If you want to change the IP address, please take care to
avoid overlap of IP address. These IP addresses are used
on JMA-9100 series, JMA-7100 series and JMA-5300MK2
series radar. Otherwise the network function is not
available on not only radar but also other equipments.
1) Network Function Setting (Network Function)
Turning on/off the network function.
1) P
ress and hold [RADAR MENU] key.
Th
e Code Input menu will appear.
2) Press the [0] key, and put the cursor on the ENT button, and press the [ENT] key.
The Serviceman Menu will appear.
3) Open
the Baud Rate menu by performing the following me
nu operation.
2. Installation Menu
→ 9. Next
→ 4. Network
4) Set the Network for the item 1. Network Function in the menu.
On : The network function is operated.
Off : The network function is stopped.
2) IP Address Setting (IP Address)
1) P
ress and hold [RADAR MENU] key.
Th
e Code Input menu will appear.
2) Press the [0] key, and put the cursor on the ENT button, and press the [ENT] key.
The Serviceman Menu will appear.
3) Open
the IP Address Setting menu by performing the following menu operation.
2. Installation Menu
→ 9. Next
→ 4. Network
→ 2. IP Address
4) Enter the IP address.
IP
setting table.
No.1 Radar 192.168. 60. 11
No.2 Radar 192.168. 60. 17
No.3 Radar 192.168. 60. 23
No.4 Radar 192.168. 60. 29
3-45
