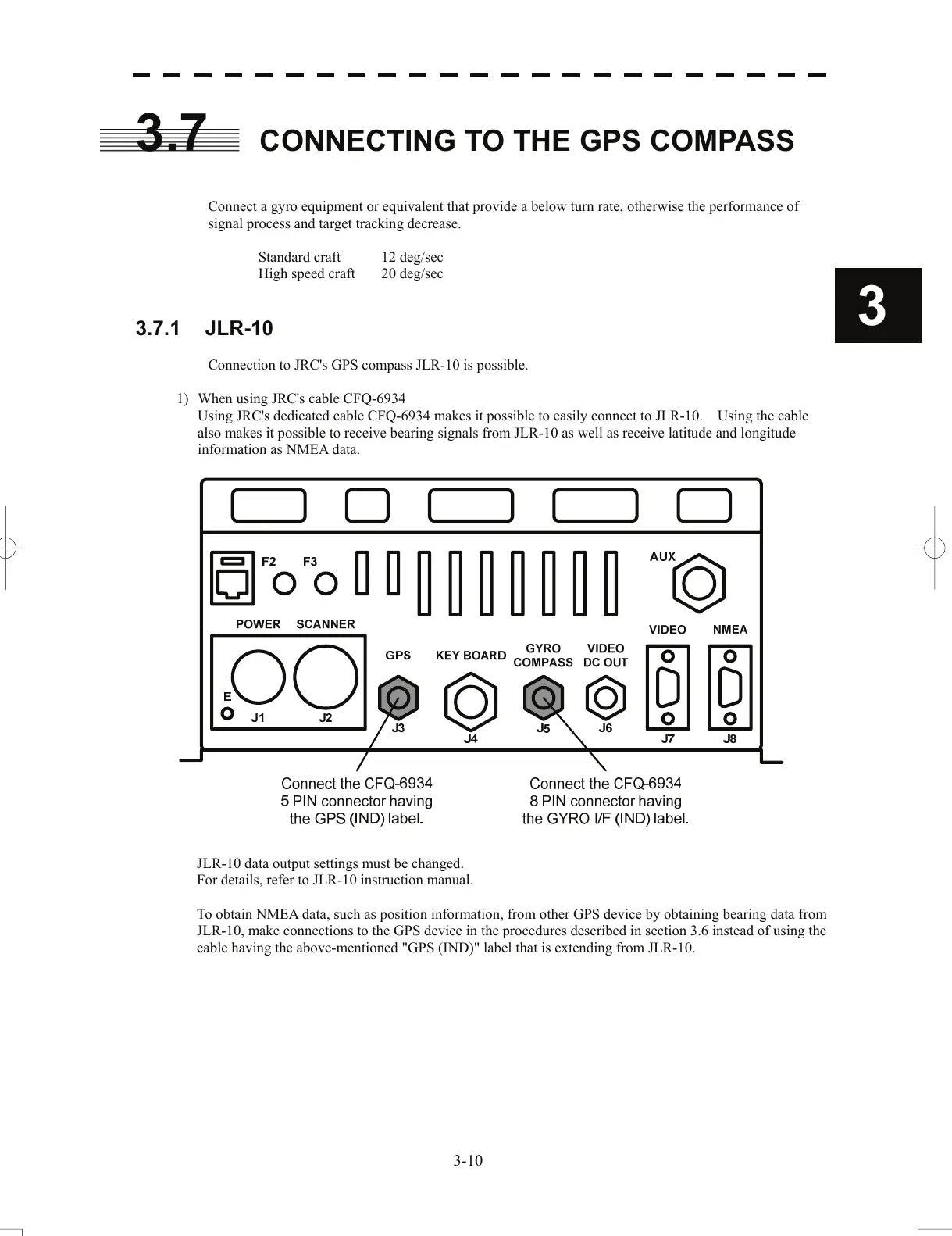

3.7 CONNECTING TO THE GPS COMPASS
Connect a gyro equipment or equivalent that provide a below turn rate, otherwise the performance of
signal process and target tracking decrease.
Standard craft 12 deg/sec
High speed craft 20 deg/sec
3
3.7.1 JLR-10
Connection to JRC's GPS compass JLR-10 is possible.
1)
When using JRC's cable CFQ-6934
Using JRC's dedicated cable CFQ-6934 makes it possib
l
e to easily connect to JLR-10. Using the cable
also makes it possible to receive bearing signals from JLR-10 as well as receive latitude and longitude
information as NMEA data.
JLR-10 data output settings must be changed.
For details, refer to JLR-10 instruction manual.
To obtain NMEA data, such as position information, from other GPS device by obtaining bearing data from
JLR
-
10, make connections to the GPS device in the procedures described in section 3.6 instead of using the
cable having the above-mentioned "GPS (IND)" label that is extending from JLR-10.
