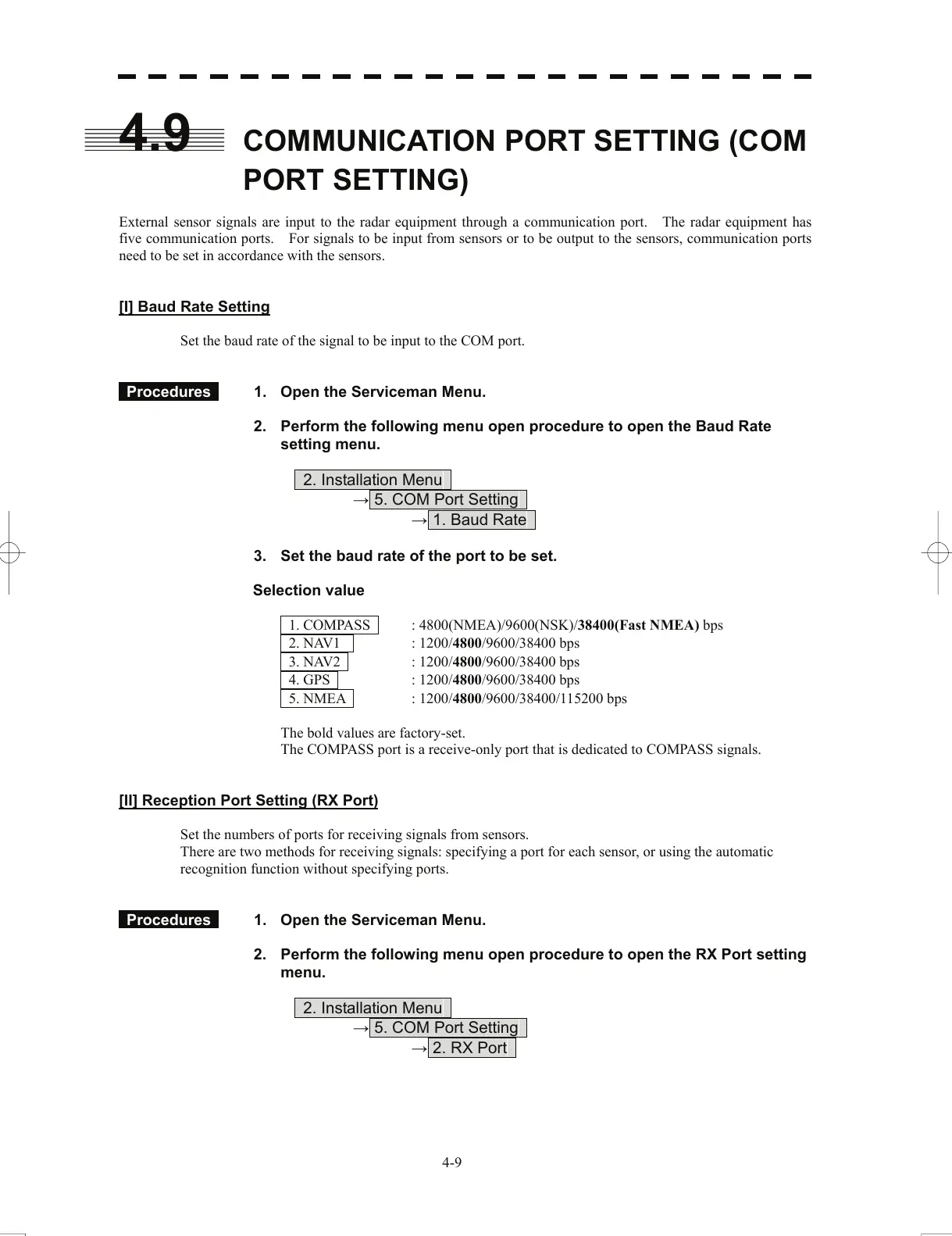

4.9 COMMUNICATION PORT SETTING (COM
PORT SETTING)
External sensor signals are input to the radar equipment through a communication port. The radar equipment has
five c
ommunication ports. For signals to be input from sensors or to be output to the sensors, communication ports
need to be set in accordance with the sensors.
[I] Baud Rate Setting
Set the baud rate of the signal to be input to the COM port.
Procedures 1. Open the Serviceman Menu.
2. Perform the following menu open procedure to open the Baud Rate
setting menu.
2. Installation Menu
→ 5. COM Port Setting
→ 1. Baud Rate
3. Set the baud rate of the port to be set.
Selection value
1. COMPASS : 4800(NMEA)/9600(NSK)/38400(Fast NMEA) bps
2. NAV1 : 1200/4800/9600/38400 bps
3. NAV2 : 1200/4800/9600/38400 bps
4. GPS : 1200/4800/9600/38400 bps
5. NMEA : 1200/4800/9600/38400/115200 bps
The bold values are factory-set.
The C
OMPASS port is a receive-only port that is dedicate
d to COMPASS signals.
[II] Reception Port Setting (RX Port)
Set the numbers of ports for receiving signals from
sensors.
There are two methods for receiving signals: specifying a port for each sensor, or using the automatic
recognitio
n function without specifying ports.
Procedures 1. Open the Serviceman Menu.
2. Perform the following menu open procedure to open the RX Port setting
menu.
2. Installation Menu
→ 5. COM Port Setting
→ 2. RX Port
4-9
