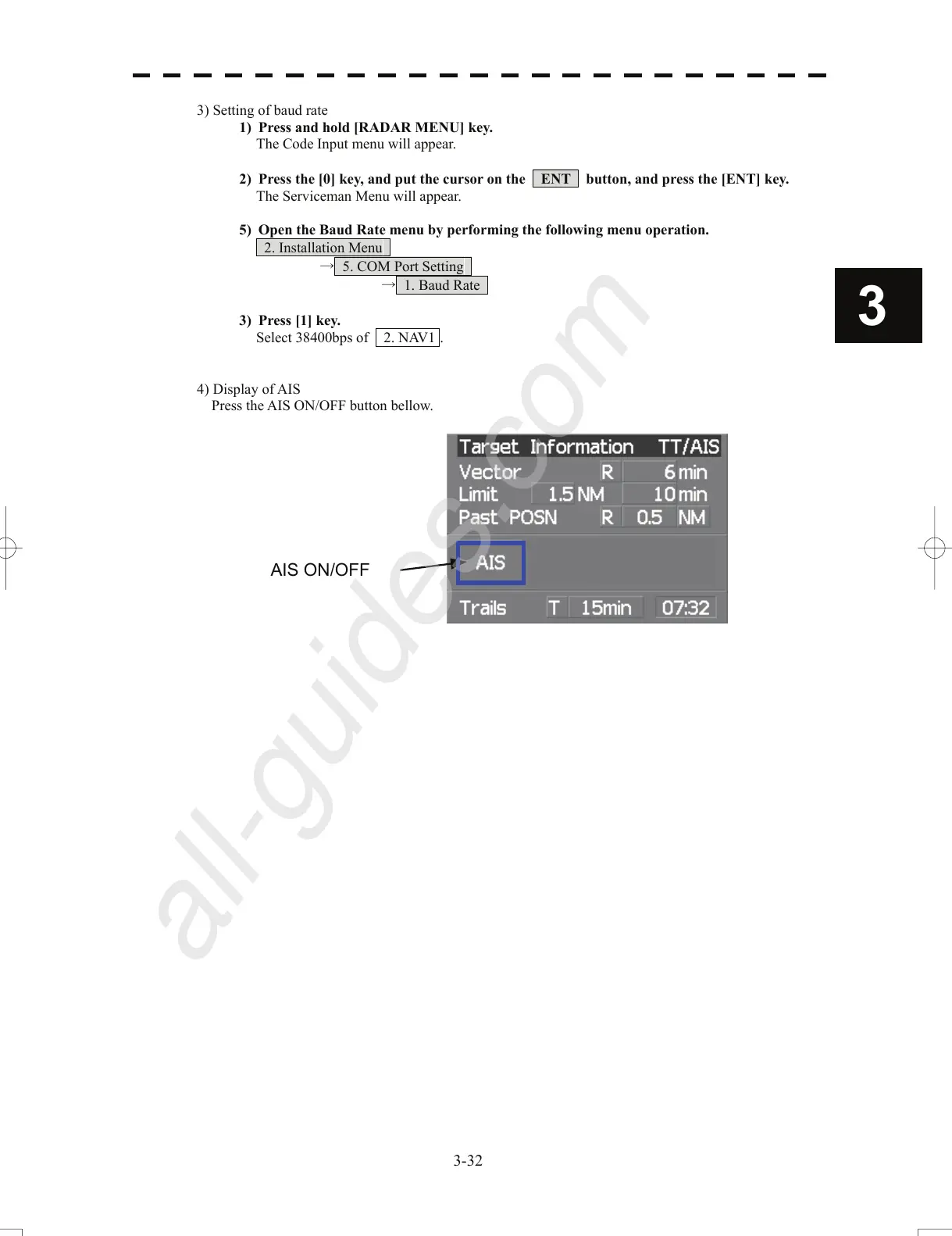

3) Setting of baud rate

1) Press and hold [RADAR MENU] key.

e Code Input menu will appear.

2) Press the [0] key, and put the cursor on the ENT button, and press the [ENT] key.

The Serviceman Menu will appear.

5) Open

the Baud Rate menu by performing the following me

nu operation.

2. Installation Menu

→ 5. COM Port Setting

→ 1. Baud Rate

3) Press [1] key.

Select 38400bps of 2. NAV1 .

4) Display of AIS

Press the AIS ON/OFF button bellow.

AIS ON/OFF
