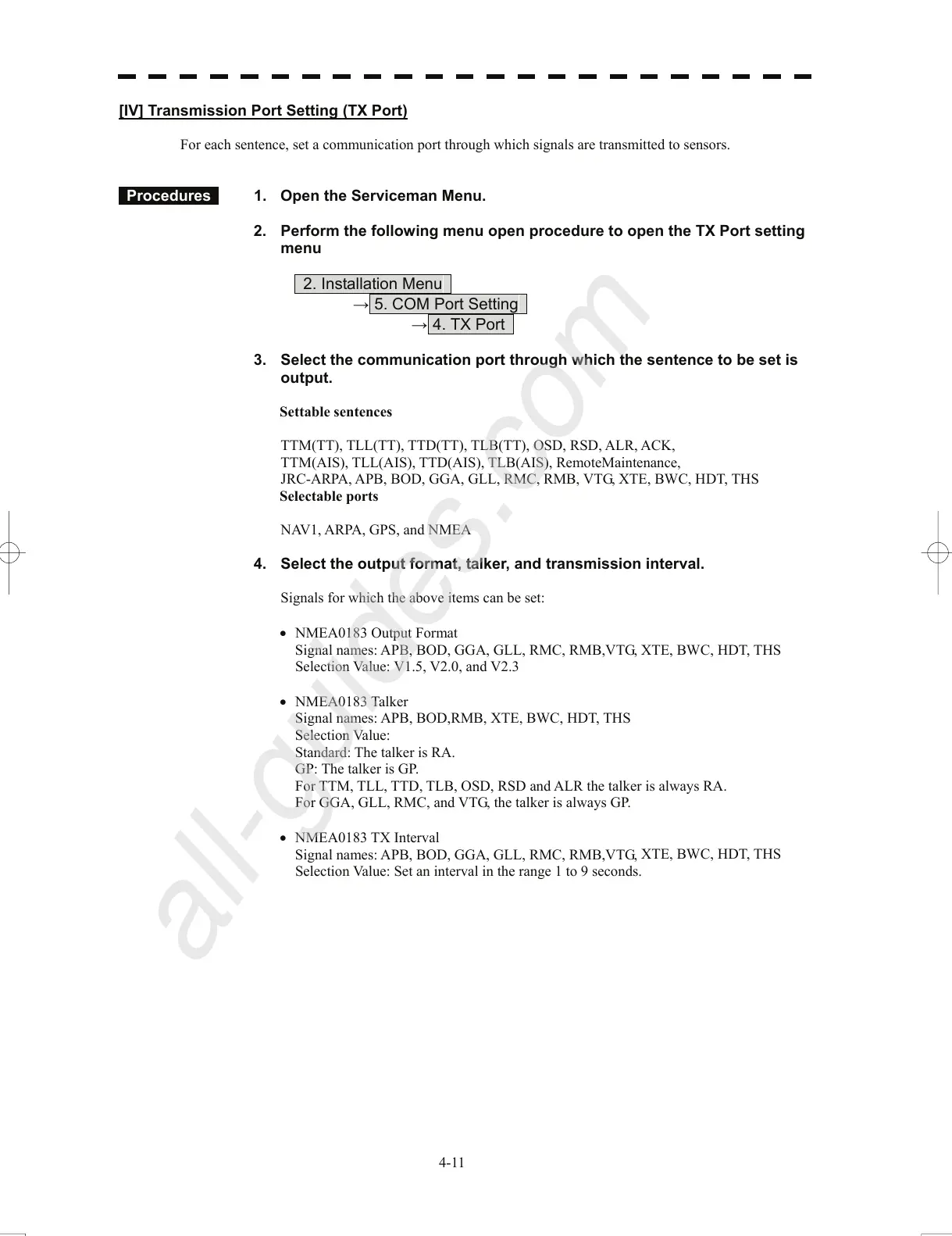

[IV] Transmission Port Setting (TX Port)
For each sentence, set a communication port through which signals are transmitted to sensors.
Procedures 1. Open the Serviceman Menu.
2. Perform the following menu open procedure to open the TX Port setting
menu
2. Installation Menu
→ 5. COM Port Setting
→ 4. TX Port
3. Select the communication port through which the sentence to be set is
output.
Settable sentences
TTM(TT), TLL(TT), TTD(TT), TLB(TT), OSD, RSD, ALR, ACK,
TTM(AIS
), TL
L(AIS), TTD(AIS), TLB(AIS), RemoteMaintenance,
JRC-ARPA, APB, BOD, GGA, GLL, RMC, RMB, VTG, XTE, BWC, HDT, THS
Selectable ports
NAV1, ARPA, GPS, and NMEA
4. Select the output format, talker, and transmission interval.
Signals for which the above items can be set:
• N
MEA0183 Output Format
Signal names: APB, BOD, GGA, GLL, RMC, RMB,VTG,
XTE, BWC, HDT, THS
Selection Value: V1.5, V2.0, and V2.3
• N
MEA0183 Talker
Signal names: APB, BOD,RMB, XTE, BWC, HDT, THS
Selection Value:
Standard: The talker is RA.
GP: The talker is GP.
For TTM, TLL, TTD, TLB, OSD, RSD and ALR the talker is always RA.
For GGA, GLL, RMC, and VTG, the talker is always GP.
• N
MEA0183 TX Interval
Signal names: APB, BOD, GGA, GLL, RMC, RMB,VTG,
XTE, BWC, HDT, THS
Selection Value: Set an interval in the range 1 to 9 seconds.
4-11
