– 75 –
9
2
!0
51
64 8
73
!7
!2
!8
!3!1
!4 !6
!5

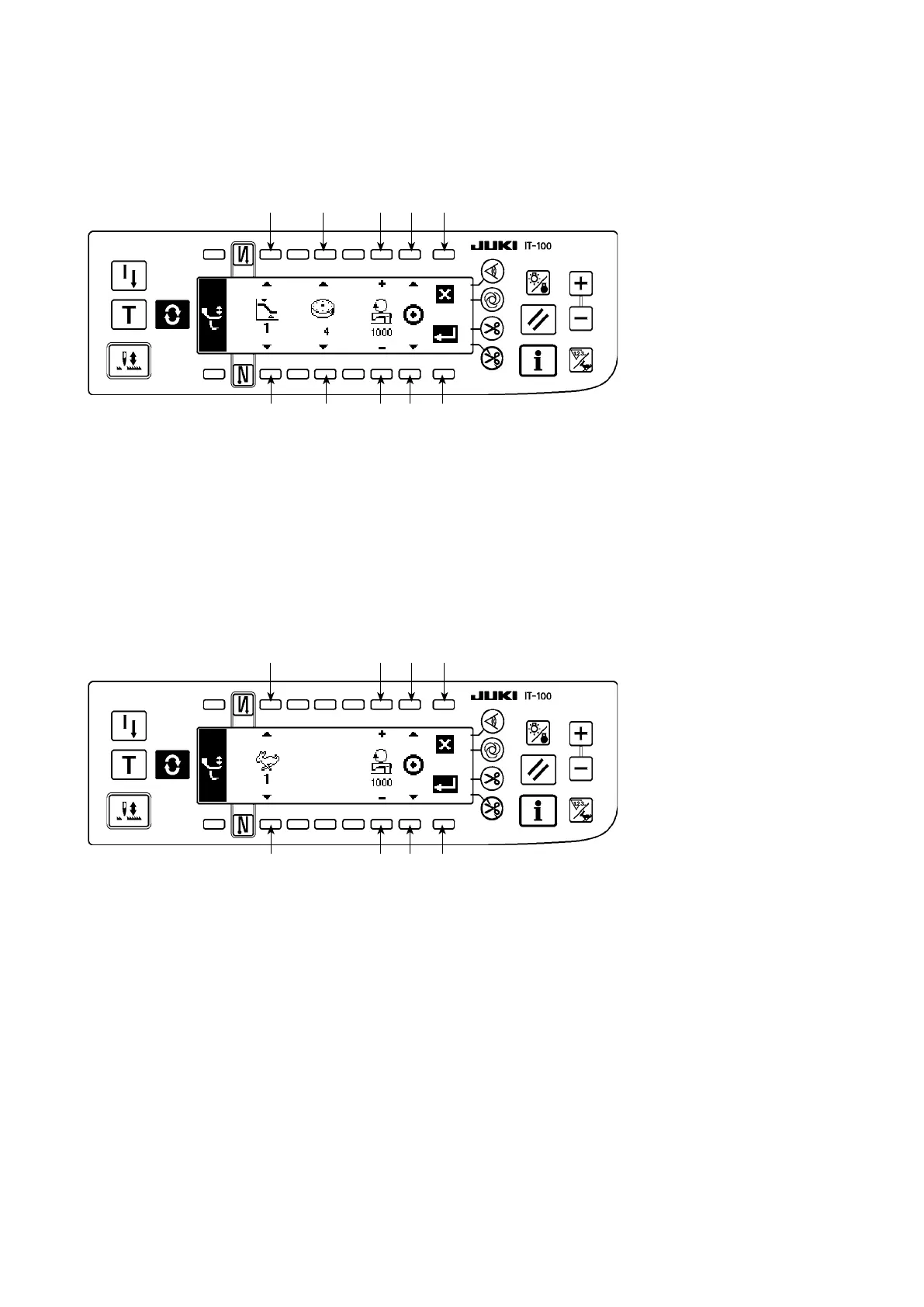

Alternating vertical movement speed limitation function setting screen
1) The maximum sewing speed needs to be changed depending on the amount of the alternating vertical
movement of the walking foot and presser foot. (Refer to the Engineer's Manual for the SC-922 for de-
tails.) The setting screen differs with the machine head type.
Example of setting (for the LU-2200VR type machine head)
4) Press switch
!1
or
!2
to specify the speed set value to one from 1 through 4. Specify the speed you want
to set by means of
!3
or
!4
.
5) When you press
!5
or
!6
, the status of the alternating vertical movement limitation you have set is
changed over between ON and OFF. After the completion of the setting procedure, press
!8
to return the
screen to the previous one. When you press
!7
, the parameter is discarded and the parameter status is
returned to the state before it is changed.
2) : Press switch
1
or
2
to select the set value 1 or 2 of the amount of alternating vertical movement. Set
the dial value of the amount of the alternating vertical movement to be assigned using switch
3
or
4
.
Specify the speed for the dial value using
5
or
6
.
3) When you press
7
or
8
, the status of the alternating vertical movement limitation you have set is
changed over between ON and OFF. After the completion of the setting procedure, press
!0
to return the
screen to the previous one. When you press
9
, the parameter is discarded and the parameter status is
returned to the state before it is changed.
Example of setting (for the machine head other than the LU-2200VR type)
