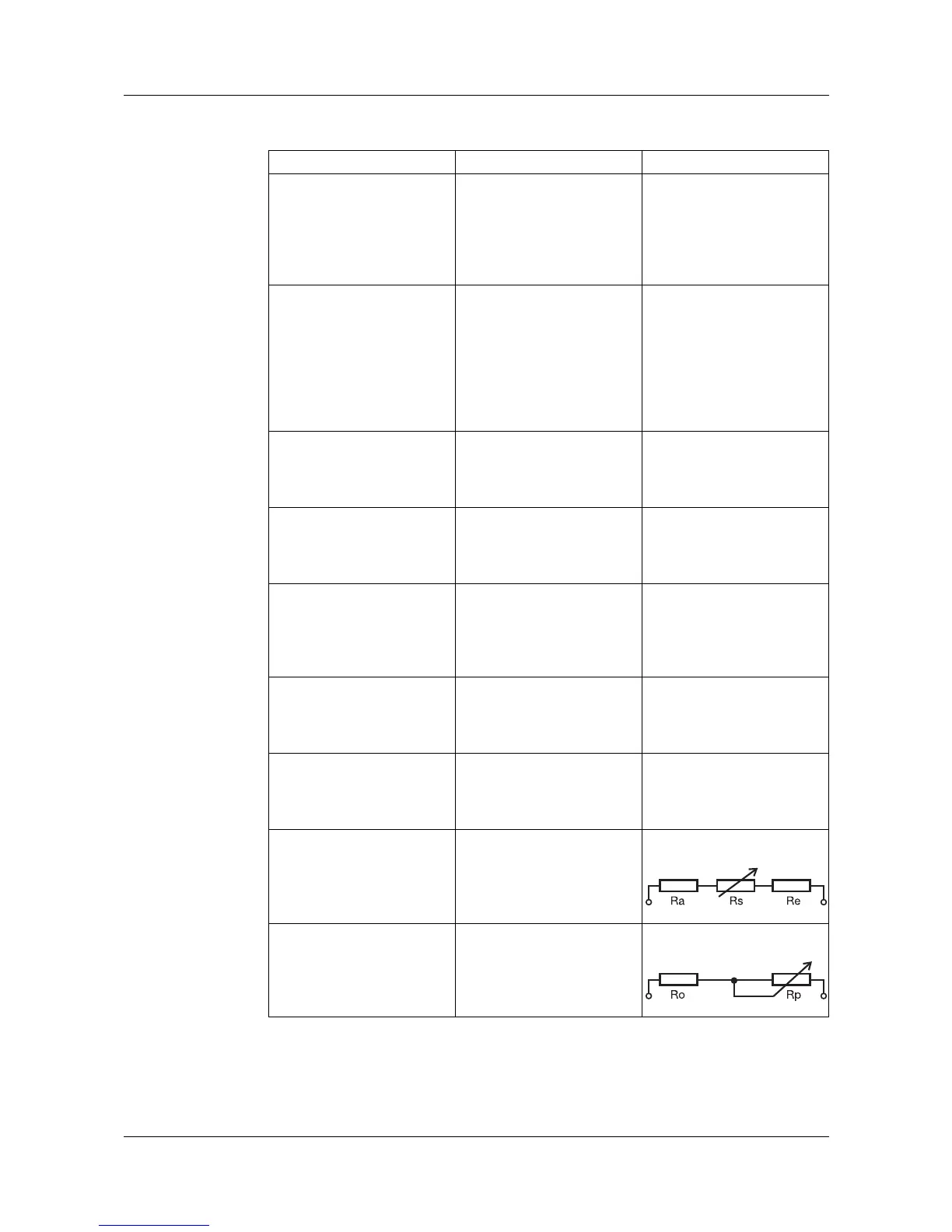

JUMO LOGOSCREEN - Configuration - Analog inputs

77
4 Configuration parameters
Configuration ➔ Analog inputs
Parameter Value/selection Description
Sensor
(internal analog
inputs and counters)
Configuration
➔ Analog inputs
➔ Analog input 1 — 12
➔ Sensor
Off,
Res. therm.,
Thermocouple, Current,
Voltage, Res. transm.,
Potentiom., Counter
Depending on the sensor
that was selected, only the
relevant parameters can be
selected when configuring
the analog input.
v Chapter 2.5 “Counters”
Linearization
(internal analog
inputs)
Configuration
➔ Analog inputs
➔ Analog input 1 — 12
➔ Linearization
Linear, Pt100, Pt100 JIS,
Ni100, Pt500, Pt1000,
Fe-Con J, NiCrCon E,
Ni-CrNi K, NiCrSi N,
Cu-Con T, PtRhPtRh B,
PtRh-Pt R, PtRh-Pt S,
Cu-Con U, Fe-Con L
Chromel-Copel, Cu50
Connection circuit
(internal analog
inputs)
Configuration
➔ Analog inputs
➔ Analog input 1 — 12
➔ Connection circuit
2 wire,
3 wire,
4 wire
Only for sensor:
resistance thermometer
and potentiometer
Cold junction
(internal analog
inputs)
Configuration
➔ Analog inputs
➔ Analog input 1 — 12
➔ Cold junction
Intern.Pt100
Extern const
Only for sensor:
thermocouple
External
cold jvunction
temperature
(internal analog
inputs)
Configuration
➔ Analog inputs
➔ Analog input 1 — 12
➔ Ext. CJtemp.
-50 to +50 to +100°C External cold junction
temperature for
thermocouples
Range start
(internal analog
inputs)
Configuration
➔ Analog inputs
➔ Analog input 1 — 12
➔ Range start
any value
0mA
Not for sensor:
resistance transmitter and
potentiometer
Range end
(internal analog
inputs)
Configuration
➔ Analog inputs
➔ Analog input 1 — 12
➔ Range end
any value
20mA
Not for sensor:
resistance transmitter and
potentiometer
Resistance
Ra, Rs, Re
(internal analog
inputs)
Configuration
➔
Analog inputs
➔ Analog input 1 — 12
➔ Resistance
Ra, Rs, Re
0 — 4000Ω Only for sensor:
resistance transmitter:
Resistance Ro, Rp
(internal analog
inputs)
Configuration
➔ Analog inputs
➔ Analog input 1 — 12
➔ Resistance
Ro, Rp
0 — 4000Ω Only for sensor:
potentiometer:
