Chapter 9 Learn Geode Connect for Windows PC 117
Owner's Manual

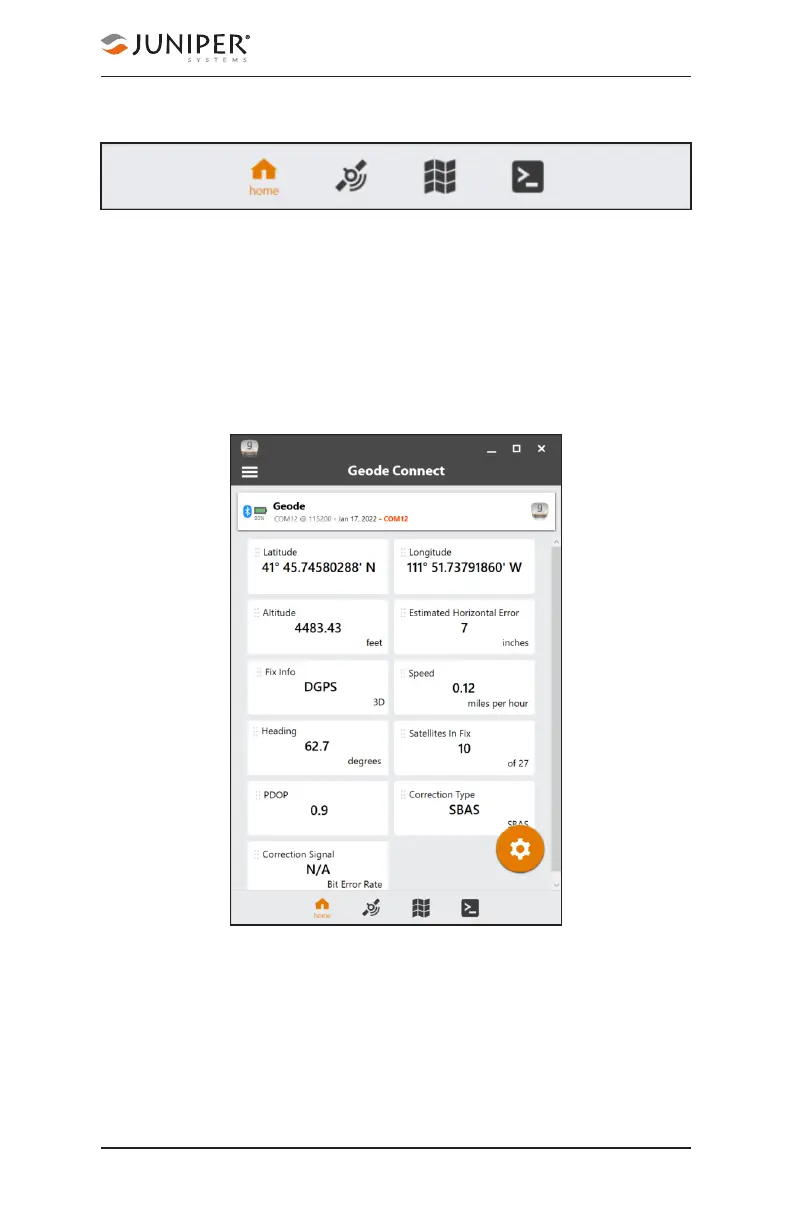

9.1 Home Page
The Home page for Geode Connect serves as a dashboard
for the Geode receiver. On this page, you can view
connection status, correction mode, and positioning data.
It displays latitude, longitude, altitude, estimated horizontal
error, fix info (GPS, DGPS, RTK, etc.), speed, heading,
number of satellites in fix, PDOP, and correction signal. You
can drag and drop each box to reorganize the screen to
your preference.
From the toolbar on the bottom of the page, you can access
the Skyplot, Map, and Terminal pages. Tap on the receiver
name at the top to change receivers. Tap on the Settings
menu in the upper left corner to configure the currently
connected receiver.
