20 Chapter 3 Getting Started
Geode GNS3 Real-Time Sub-Meter GPS Receiver
3. Getting Started
The Geode GPS Receiver is designed to be ready to use
right out of the box. Simply charge the battery and pair
the Geode with a Bluetooth
®
wireless technology-enabled
handheld device. The Geode may be used with most
mapping apps that use industry standard NMEA 0183
protocol.

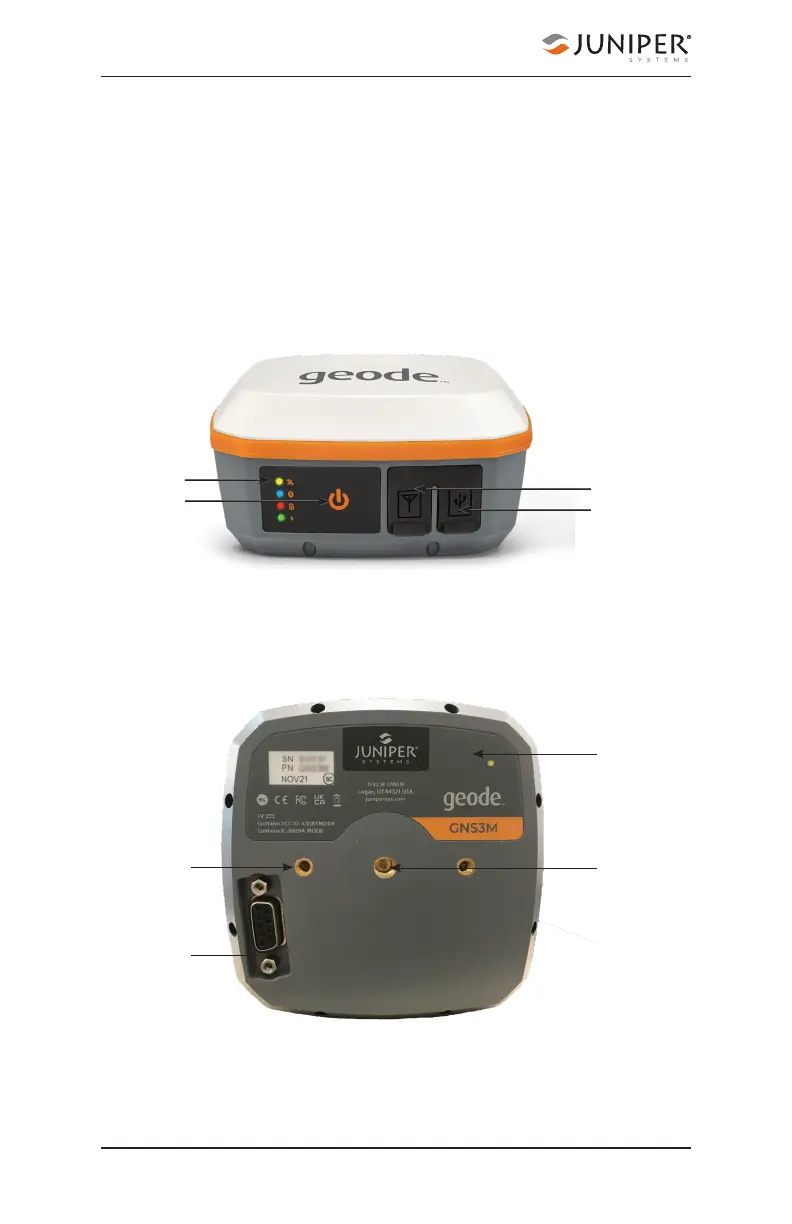

Anatomy of the Geode
5
6
8
7
3
4
1
2
5 M4 Amps Port
(1 of 2)
6 RS-232C Serial Port
7 GNS3 Label
8 1/4”–20 Attachment Port
1 LED Status Indicators
2 Power Switch
3 MCX Antenna Connector
4 USB-C
