2. Use a number–2 Phillips screwdriver to install the screws that secure the mounting
brackets to the chassis.

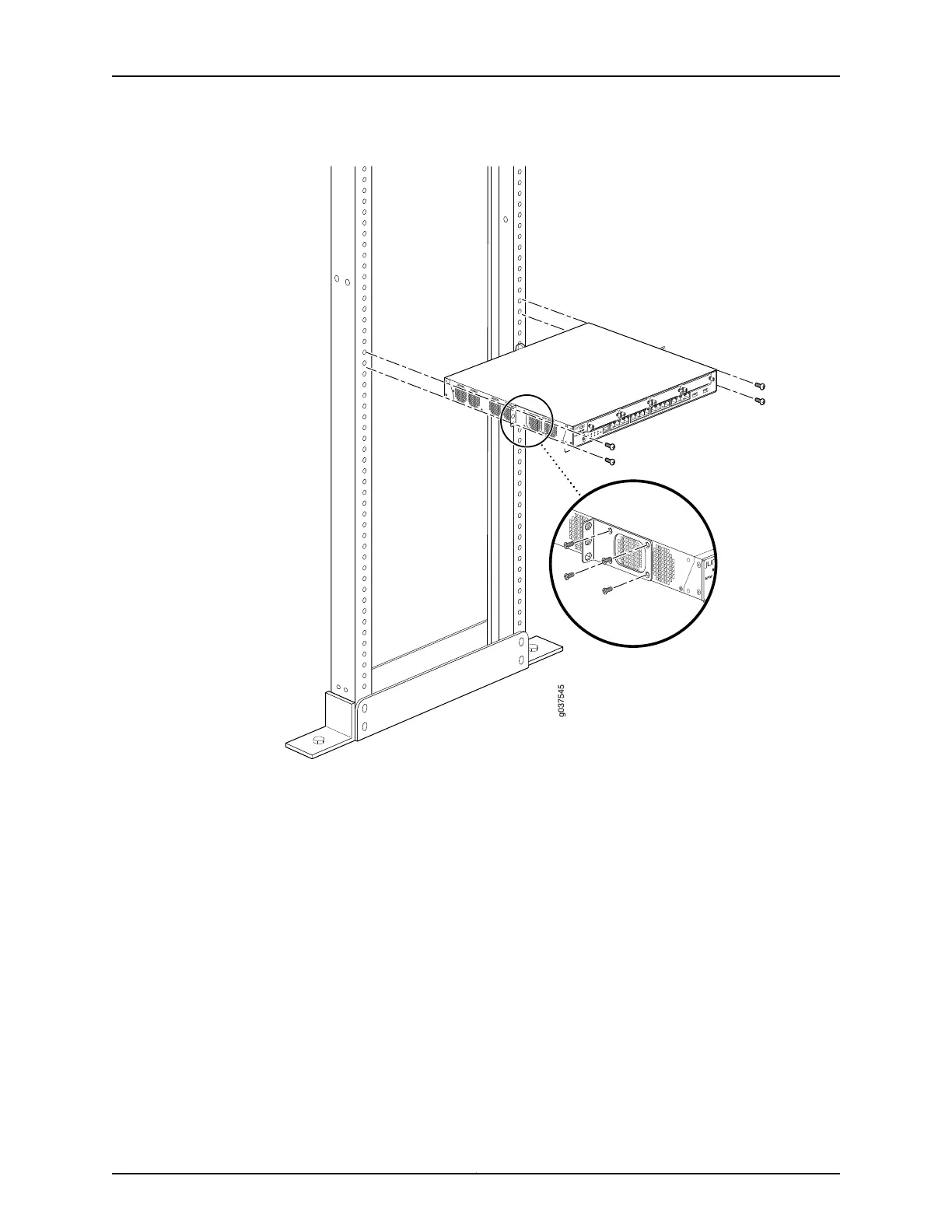

3. Have one person grasp the sides of the device, lift it, and position it in the rack.
4. Align the bottom hole in each mounting bracket with a hole in each rack rail, making
sure the chassis is level.
5. Have a second person install a mounting screw into each of the two aligned holes.
Use a number–3 Phillips screwdriver to tighten the screws.
6. Install the second screw in each mounting bracket.
7. Verify that the mounting screws on one side of the rack are aligned with the mounting
screws on the opposite side and that the device is level.
Related
Documentation
• Preparing the SRX240 Services Gateway for Installation on page 53
• Required Tools and Parts for Installing and Maintaining the SRX240 Services Gateway
on page 48
Copyright © 2015, Juniper Networks, Inc.56
SRX240 Services Gateway Hardware Guide
