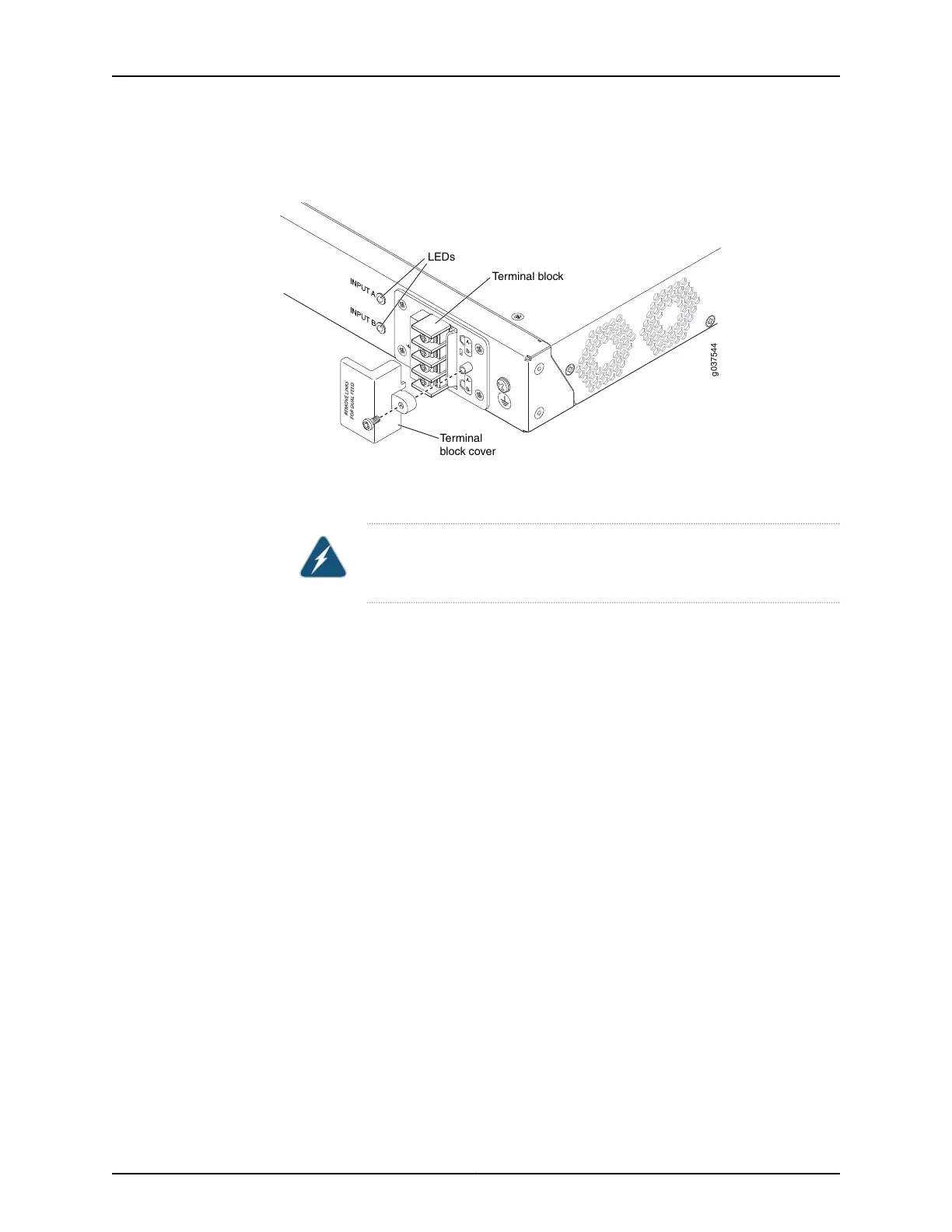

Figure 16: DC Power Feed on SRX240 Services Gateway with DC Power
Supply Model
3. Remove the screws on the terminals using the Phillips (+) screwdriver, number 1. Save
the screws.
WARNING: Ensure thatthe powercablesdo not blockaccessto the device
or drape where people can trip on them.
4. Connect the power feed to the power sources as shown in Figure 17 on page 73. Secure
power source cables to the power feed on the device by screwing the ring lugs attached
to the cables to the appropriate terminals by using the screw from the terminals.
Copyright © 2015, Juniper Networks, Inc.72
SRX240 Services Gateway Hardware Guide
