1-1
4
SECTION 1
SERVICE CAUTIONS AND DISASSEMBLY
1.1 RESETTING THE POWER CIRCUIT PROTECTION
BREAKER
This unit employs a power circuit protection breaker in place of
a fuse to disconnect from the main power and to thus protect
the internal circuitry from damage caused by any current over-
load. The power can be re-connected by resetting the breaker.

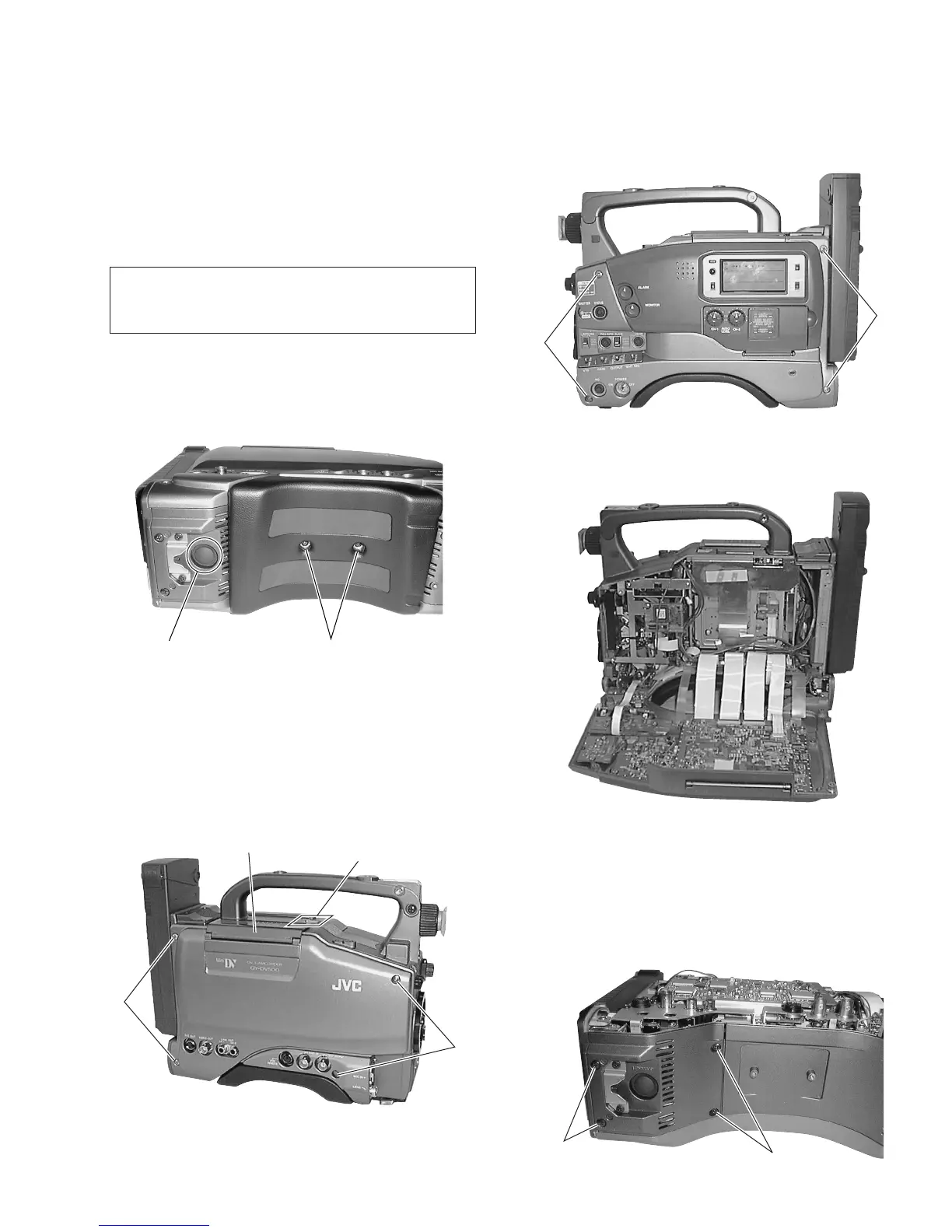

Fig. 1-1 Position of the Circuit Breaker
(1) Switch OFF the POWER of this unit as well as that of any
equipment supplying power to it.
(2) The circuit breaker
Å
is located below the VCR at the rear.
Press the BREAK button to re-connect the power line.
To prevent any complications resulting from the fail-
ure, check the cause of the shutdown and repair it
before resetting the circuit breaker.
1.2 REMOVING THE EXTERIOR COVERS
1.2.1 Removing the Left Side Cover
(1) Open the cassette door by pressing the EJECT switch.
(2) Loosen the 4 screws
1
and remove the left side cover.
Fig. 1-2-1 Removing the Left Side Cover
1.2.2 Opening the Right Side Cover
(1) Loosen the 4 screws
2
.
Fig. 1-2-3 Removing the Bottom Cover
1.2.3 Removing the Bottom Cover
(1) Remove the left side cover (see section 1.2.1).
(2) Remove the 2 screws
3
and remove the shoulder pads (see
Fig. 1-1).
(3) Remove the 4 screws
4
and remove the bottom cover.
Fig. 1-2-2(2) View of the Opened Right Side Cover
(2) Flip open the right side cover toward the front.
Fig. 1-2-2(1) Opening the Right Side Cover
3
Å
1
Cassette cover
EJECT switch
