Product description Installation Manual
10 k2evo702 - 201610 Kaba c-lever and variants
3 Product description
This section provides an overview of the product and gives information on technical
details.
3.1 Overview
The c-levers are electronic door fittings with a reader antenna on the outside shield.
The coupling and electronics are integrated into the fitting. After identification using
authorised media, the lock and door can be opened manually.
3.1.1 Structure
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1718192021222324252627293031
32
49 46
57 59 58
48

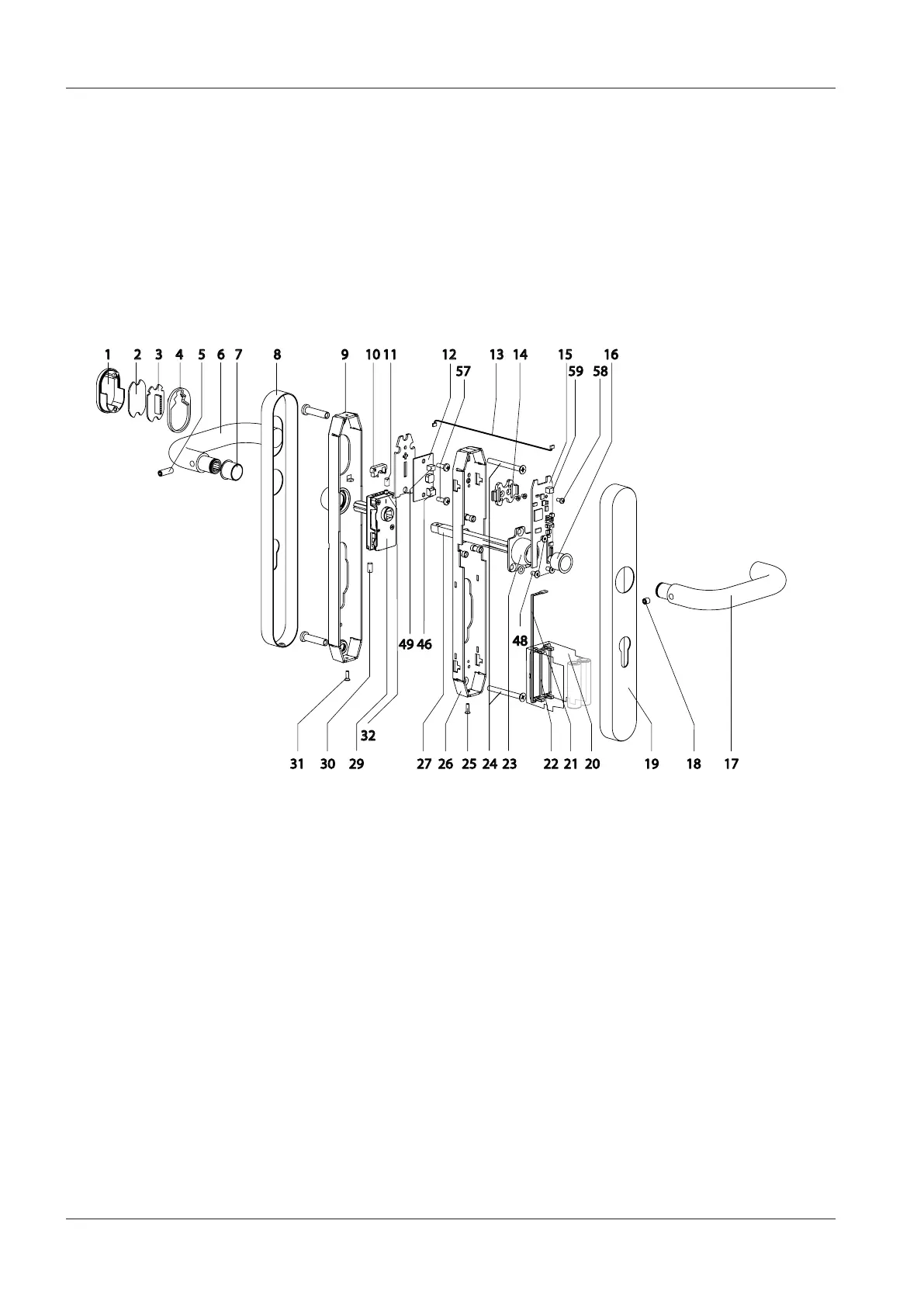

Fig.1: Exploded diagram of structure of variant 2621
1 Antenna housing 16 Lever handle bearing 31 Fixing screw
2 Antenna 17 Inside lever handle 32 Threaded pin
3 Antenna circuit board 18 Fixing screw for lever handle
4 Frame housing 19 Inside shield
5 Fixing screw for lever handle 20 Battery protection film
6 Lever handle 21 Connection cable
7 Lever handle bearing 22 Battery circuit board
8 Outside shield 23 Fastening for inside lever
handle
46 Socket for mechatronics unit
9 External fitting 24 Fixing screws
10 Direction pin 25 Screw for inside shield 48 Countersunk screws
11 Silicone cushion 26 Internal fitting 49 Socket for antenna cable
12 Intermediate circuit board for
antenna
27 Spindle
13 Antenna cable 57 3 fixing screws
14 Bracket 29 Mechatronics unit 58 Fixing screw
