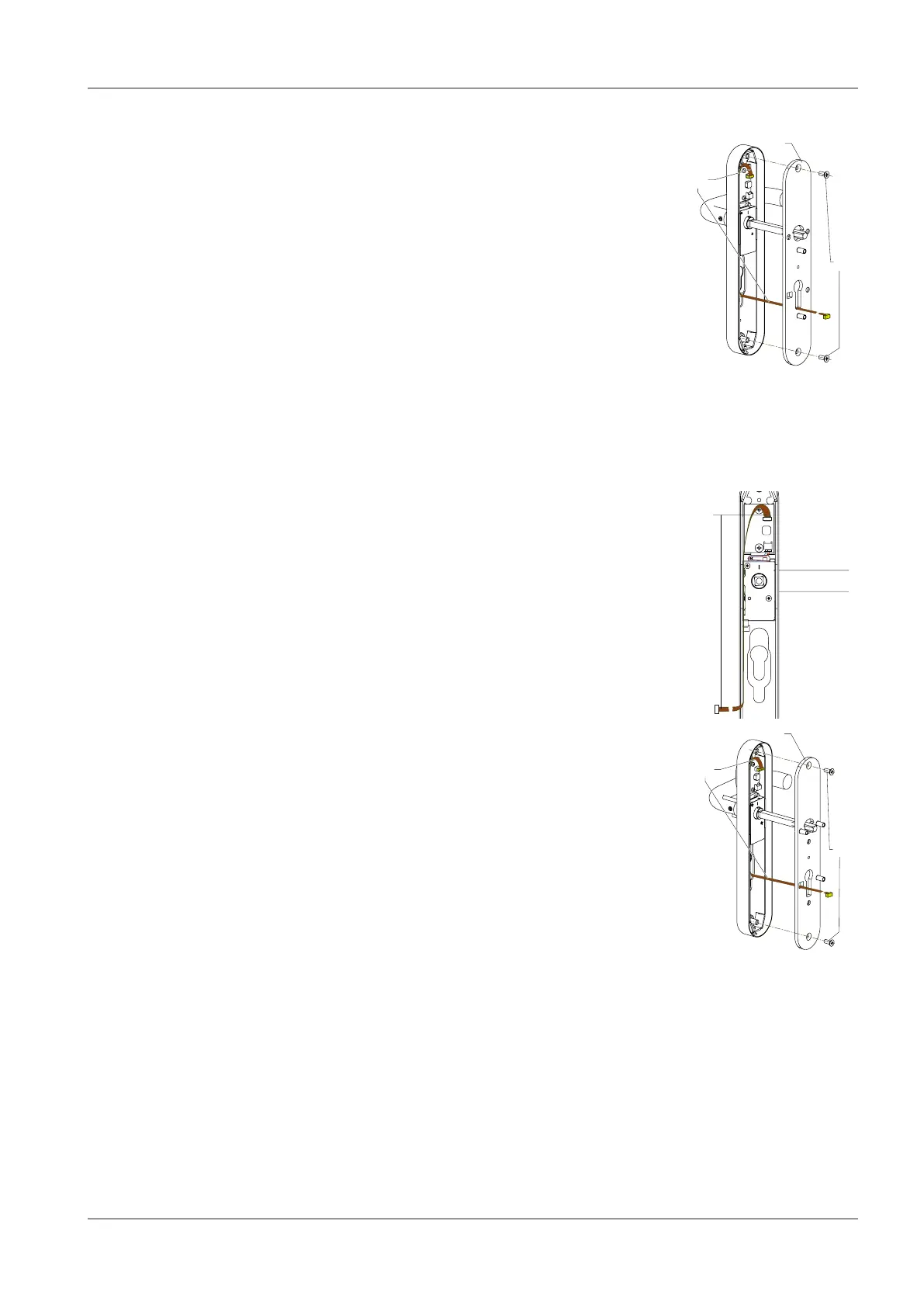

5. Guide the antenna cable (13) through the cylinder
opening of the support plate for the outside shield
(40).
40
13
42
6. Insert the support plate for the outside shield into
the outside shield.
7. Secure the support plate for the outside shield into
the outside shield using two fixing screws (42).
4.3.5 Rosette assembly variant
Continuation of chapter Fastening the coupling unit.
Procedure:
4. Guide the antenna cable (13) on the left next to the
coupling unit in the outside shield as shown.
13
5. Guide the antenna cable (13) through the wide
opening of the support plate for the outside shield
(41).
41
13
43
6. Insert the support plate for the outside shield into
the outside shield.
7. Secure the support plate for the outside shield into
the outside shield using two fixing screws (43).
