Installation Manual Installation
29k2evo702 - 201610Kaba c-lever and variants
4.4.2 c-lever short plate variant
Once the outside shield is installed, the pressure on the coupling of the coupling unit
must be relieved. To do this, pull the spindle inwards.
Requirement:
• Mortise lock is not installed yet

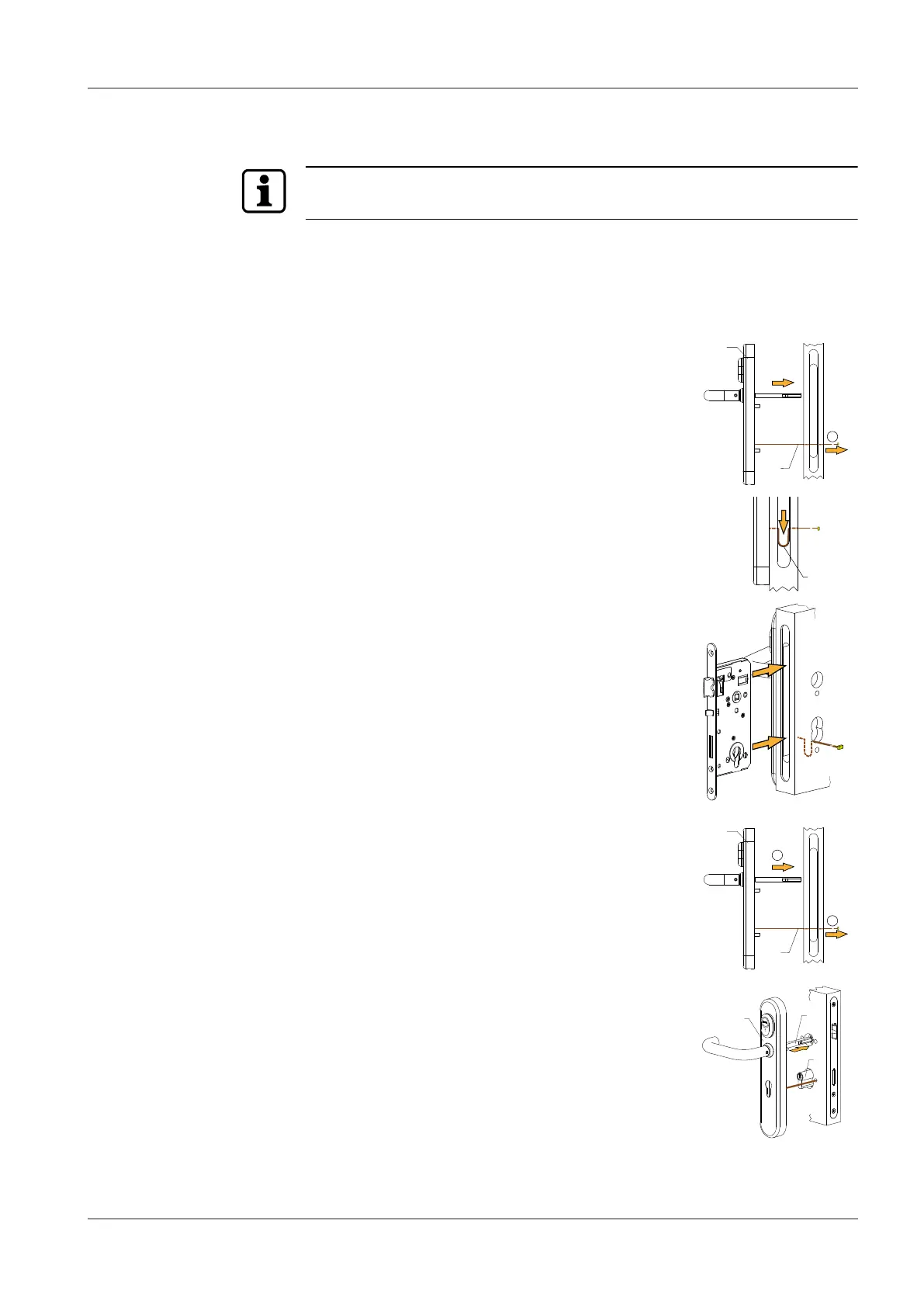

Procedure:
1. Guide the antenna cable (13) through the cylinder
cut-out of the door as shown (A).
2. Lay the antenna cable (13) in the lock mortise as
shown.
3.
Note: do not shift and/or trap the antenna cable.
Push the mortise lock into the mortise.
4. Guide the outside shield (8) with tightened spindle
into the lock hub (B).
Retighten the antenna cable (13) in the process (A).
5. Place the outside shield (8) on the outside of the door.
6. Secure the mortise lock to the door.
7. Push the lock cylinder (50) into the mortise lock.
8. Secure the lock cylinder with the cylinder fixing screw
(but do not tighten yet).
9. Pull the spindle (27) inwards.
Result:
The mortise lock, lock cylinder and outside shield are installed on the door.
