Kaba c-lever 2662-K5 User Manual

Installation Installation Manual
26 k2evo702 - 201610 Kaba c-lever and variants

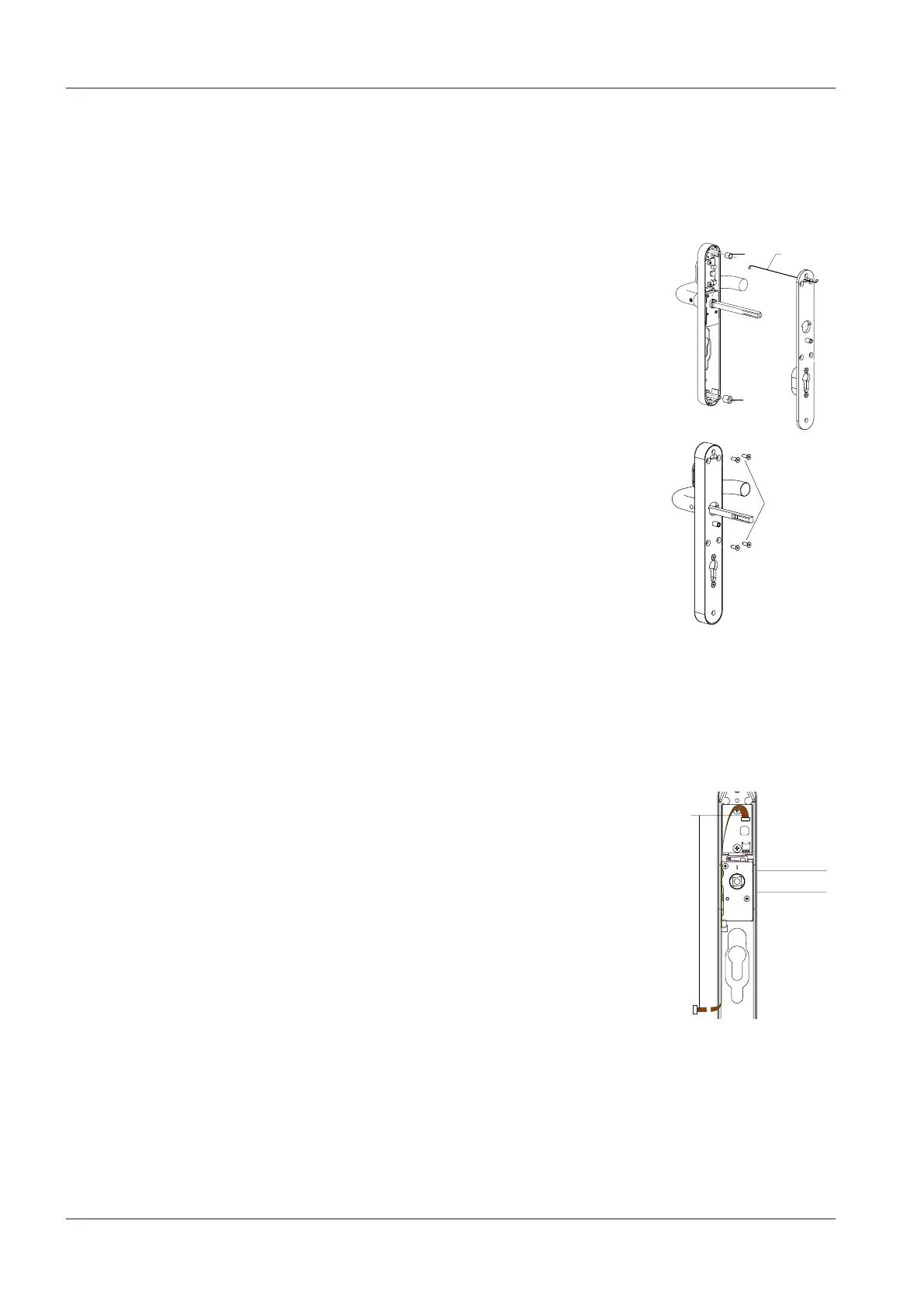

4.3.3 c-lever ES1 variant
Continuation of chapter Fastening the coupling unit.
Procedure:
4. Guide the antenna cable (13) at the top through the
wide opening of the steel support plate.
37 13
38
5. Place a spacer (37) on the top threaded pin.
6. Place a spacer (38) on the bottom threaded pin.
7. Insert the steel support plate into the outside shield.
39
8. Secure the steel support plate to the outside shield
using four fixing screws (39).
4.3.4 Short plate variant
Continuation of chapter Fastening the coupling unit.
Procedure:
4. Guide the antenna cable (13) on the left next to the
coupling unit in the outside shield as shown.
13
