Fastening the coupling unit

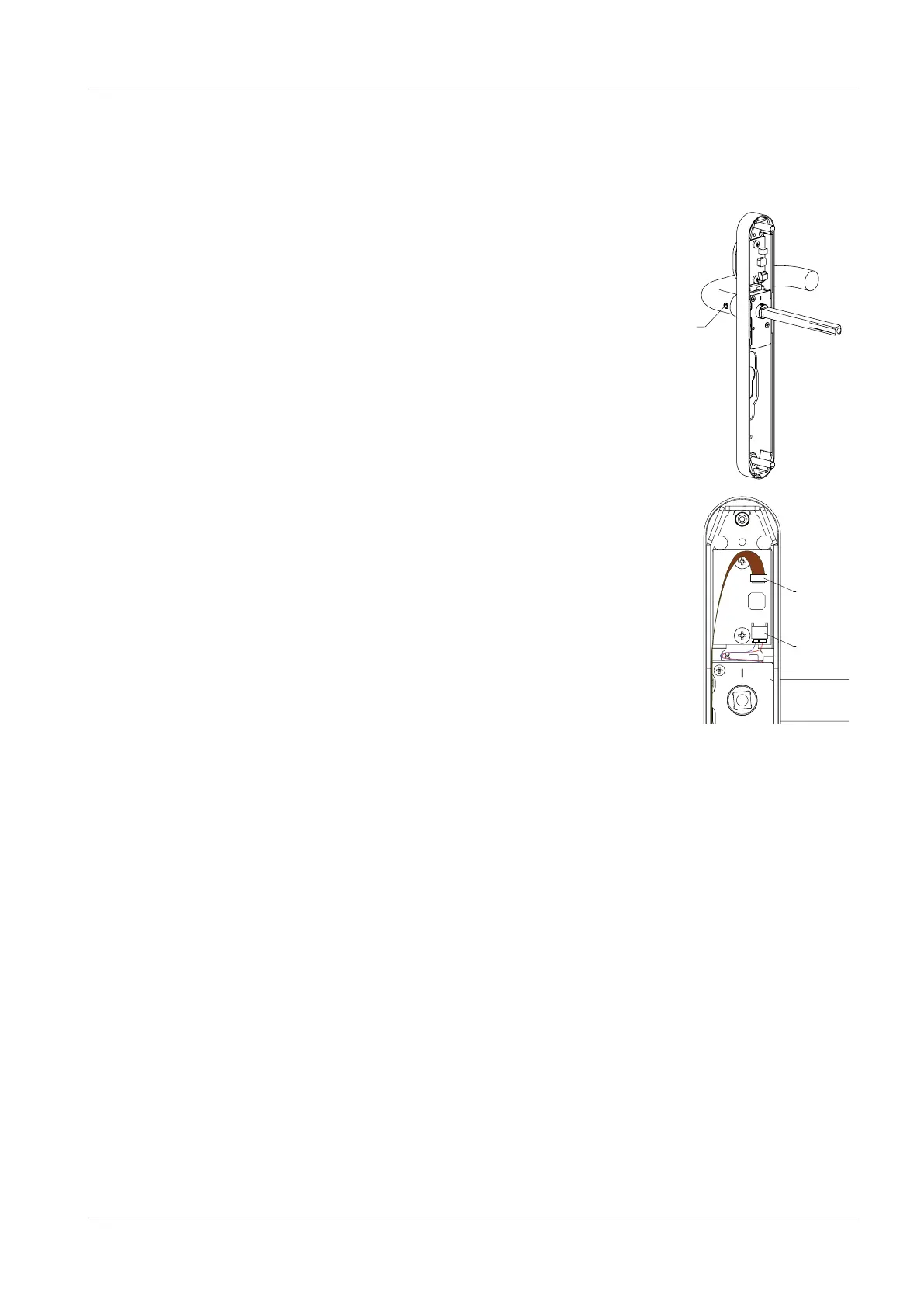

Procedure:
1. Secure the coupling unit using the lever handle fix-
ing screw (5).
5
2. Connect the plug of the coupling unit to the white
socket (46).
49
46
3. Connect the plug of the antenna cable to the black
socket (49).
Result:
The coupling unit is securely fastened in the outside
shield.
The antenna circuit board is connected.
