Installation Manual Installation
37k2evo702 - 201610Kaba c-lever and variants
4.5.5 Variant with wireless option (E320)
The supported functions depend on the system software used such as KEM. A de-
tailed description of this option can be found in the Wireless planning guideline and
in the respective instructions for the system software.
Requirement:
Outside shield installed
Centring sleeve positioned in outside shield
Internal fitting with wireless module, door handle contact and additional circuit
board available
Procedure:
1. Install internal fitting with wireless module according
to the relevant version. See list below:
c-lever standard variant [}4.5.1]
c-lever ES1 variant [}4.5.2]
c-lever short plate variant [}4.5.3]
c-lever rosette assembly variant [}4.5.4]
2.
For doors that have a mortise lock with a micro
switch.
Connect mortise lock to micro switch and wireless
module.

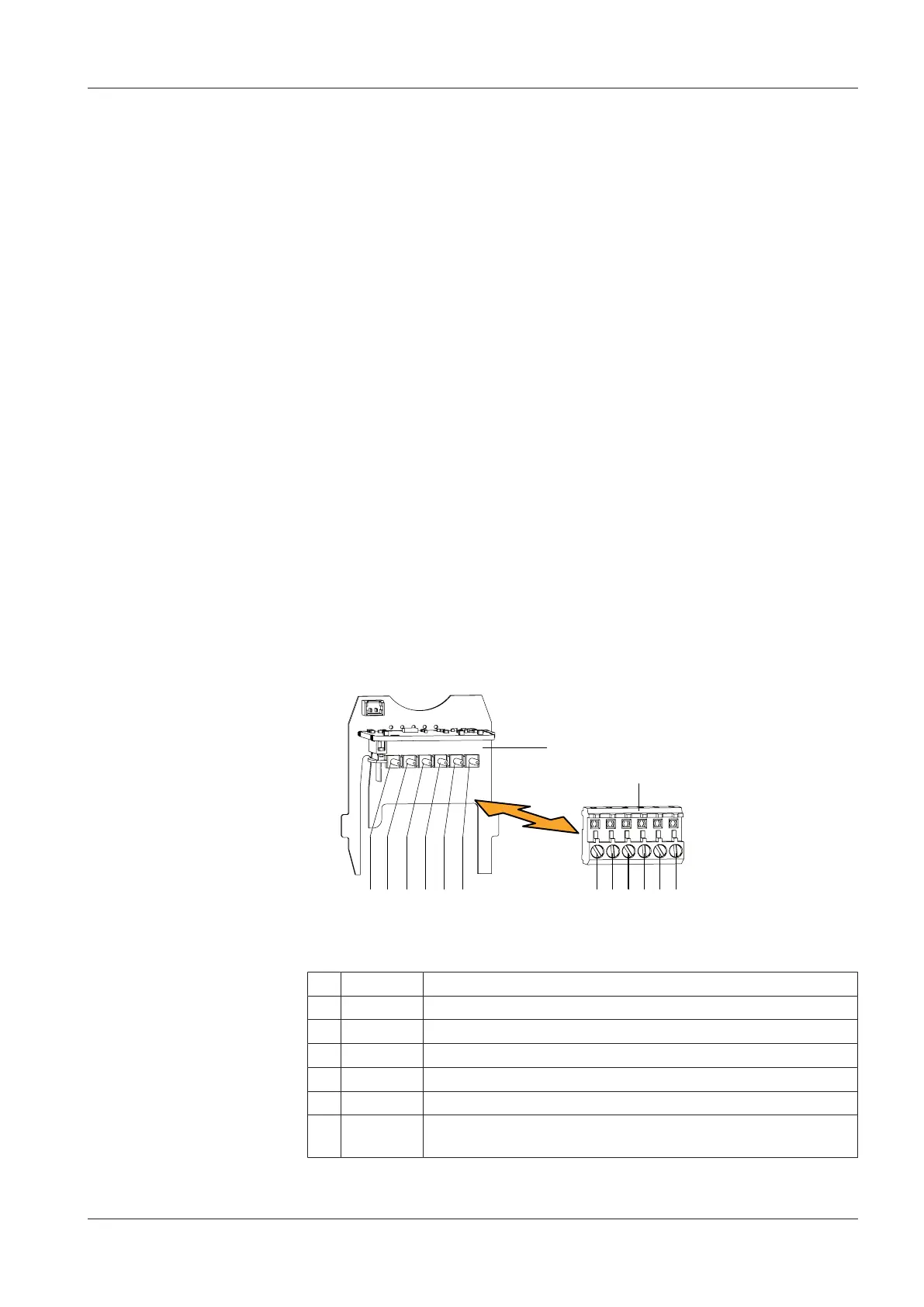

a) Remove wireless module (52) from the internal fit-
ting.
b) Remove connection terminal (53) from the pin
header of the wireless module at the same time.
GND
GND
GND
Cylind
Frame
Bolt
1 2 3 4 5 6
53
52
1 2 3 4 5 6
7
c) Connect the cable from the mortise lock with a micro
switch to the individual terminals.
1 GND Door frame contact
2 Frame Door frame contact
3 GND Mortise lock deadbolt contact
4 Bolt Deadbolt contact
5 GND Mortise lock cylinder contact
6 Cylind. Cylinder contact
7 Plug con-
nection
(Top left) handle – handle monitoring
