Kaba c-lever 2662-K5

Installation Manual Installation
35k2evo702 - 201610Kaba c-lever and variants
4.5.4 c-lever rosette assembly variant
Requirement:
• Outside shield installed
• Centring sleeve positioned in outside shield
• Mortise lock and lock cylinder installed
Procedure:
1.
Note: do not trap the antenna cable.

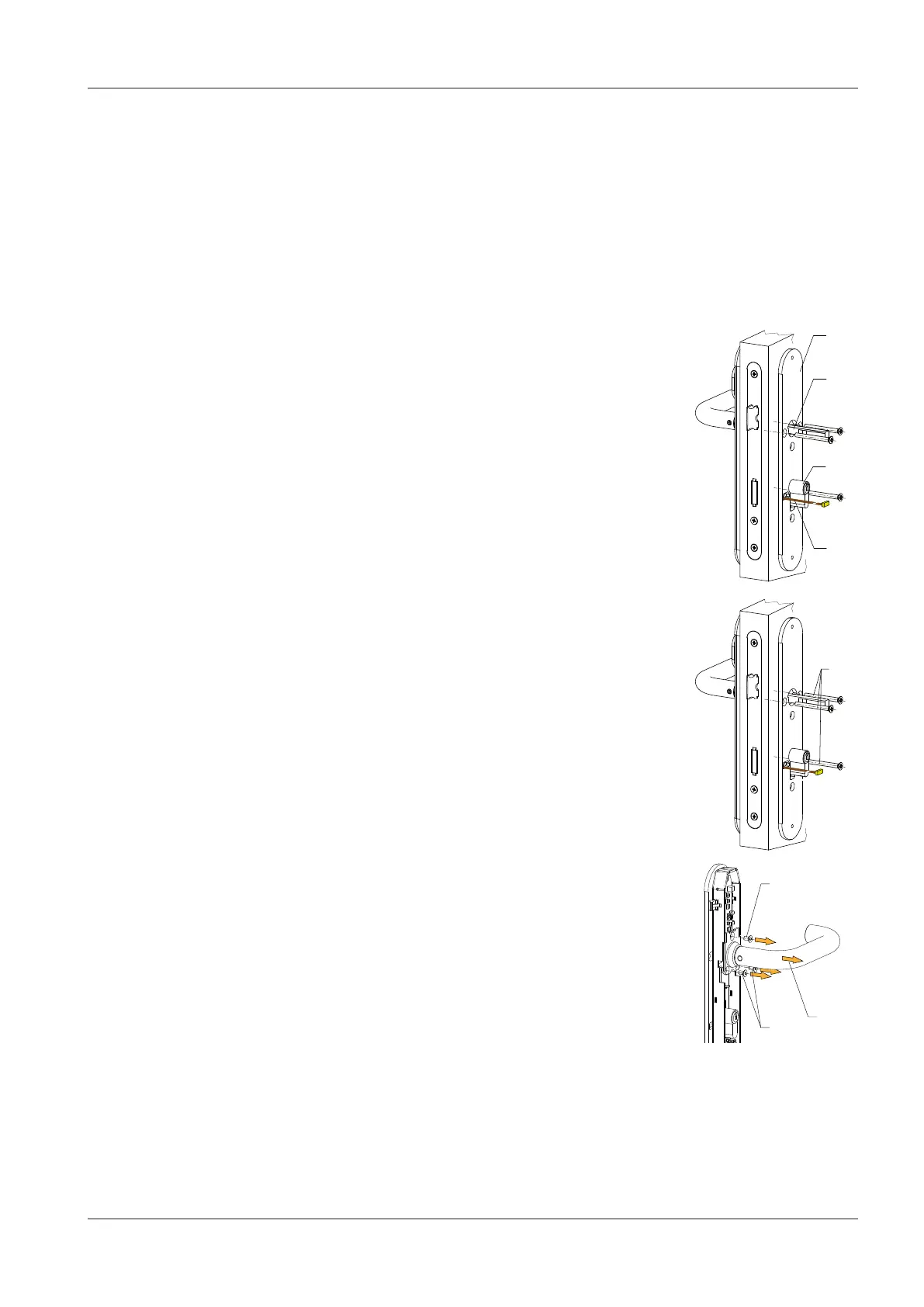

Place the support plate for the inside shield (41) over
the spindle (27) and lock cylinder (50) on the inside
of the door.
27
41
50
13
2. Guide the antenna cable (13) through the wide
opening of the support plate (the bottom fastening
hole of the rosette) as shown.
3.
Note: tightening torque max. 2.5±0.5Nm.
Secure the support plate for the inside shield to the
outside shield using three fixing screws M5 (24).
24
4. Unscrew the inside lever handle (17) with three
countersunk screws M4 (48) from the internal fitting.
17
48
48
