Product description Installation Manual
12 k2evo702 - 201610 Kaba c-lever and variants
3.2.2 Additional fixtures for c-lever short plate
• 1 support plate for outside shield
• 1 support plate for inside shield
• 2 fixing screws M5x50mm for internal fitting and outside shield
• 2 fixing screws M5x12mm for outside shield support plate
• 2 fixing screws M5x6mm for inside shield support plate
3.2.3 Additional fixtures for c-lever rosette assembly
• 1 support plate for outside shield
• 1 support plate for inside shield
• 3 fixing screws M5x50mm for internal fitting and outside shield
• 2 fixing screws M5x12mm for outside shield support plate
• 2 fixing screws M5x6mm for inside shield support plate

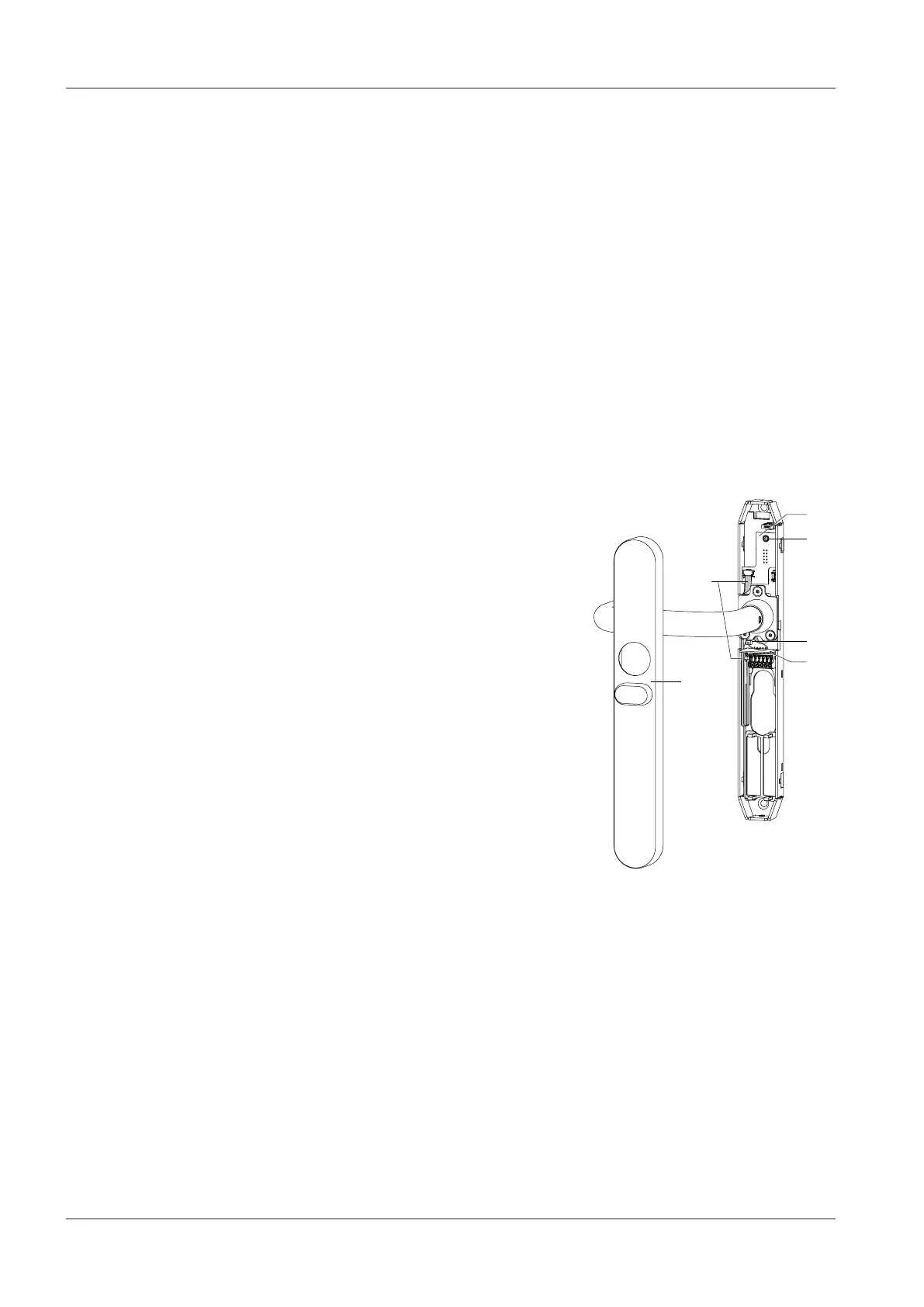

3.2.4 Additional fixtures for c-lever wireless
• Wireless module with connection ter-
minal (64)
• Plug with cable for door handle contact
(63)
• ZIF connection cable (65)
• PCB (61) and screw (62)
• Inside shield for wireless (66)
63
65
64
61
62
66
3.2.5 Accessories
• Relevant system software and programming tools
