30 k2evo702 - 201610 Kaba c-lever and variants

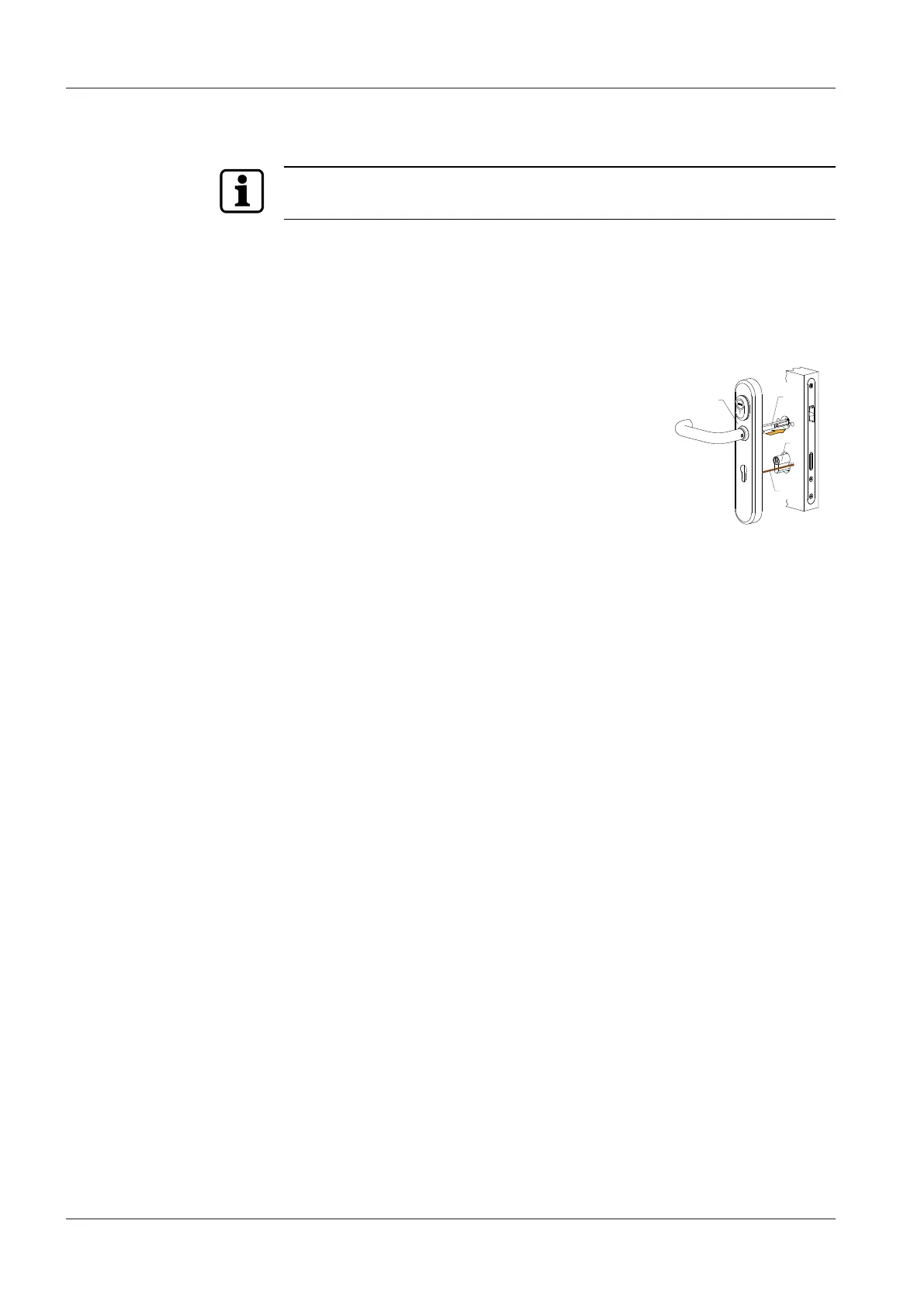

4.4.3 c-lever rosette assembly variant
Once the outside shield is installed, the pressure on the coupling of the coupling unit
must be relieved. To do this, pull the spindle inwards.
Requirement:
• Existing fitting removed
• Mortise lock installed
Procedure:
1. Push the lock cylinder (50) into the mortise lock.
2. Secure the lock cylinder with the cylinder fixing screw
(but do not tighten yet).
3. Guide the antenna cable (13) through the bottom
fastening hole of the removed rosette.
4. Guide the outside shield (8) with tightened spindle
(27) into the lock hub.
5. Place the outside shield on the outside of the door.
6. Pull the spindle inwards.
8
27
50
13
Result:
The outside shield is installed.
