Kaba c-lever 2662-K5

Installation Installation Manual
36 k2evo702 - 201610 Kaba c-lever and variants
5.

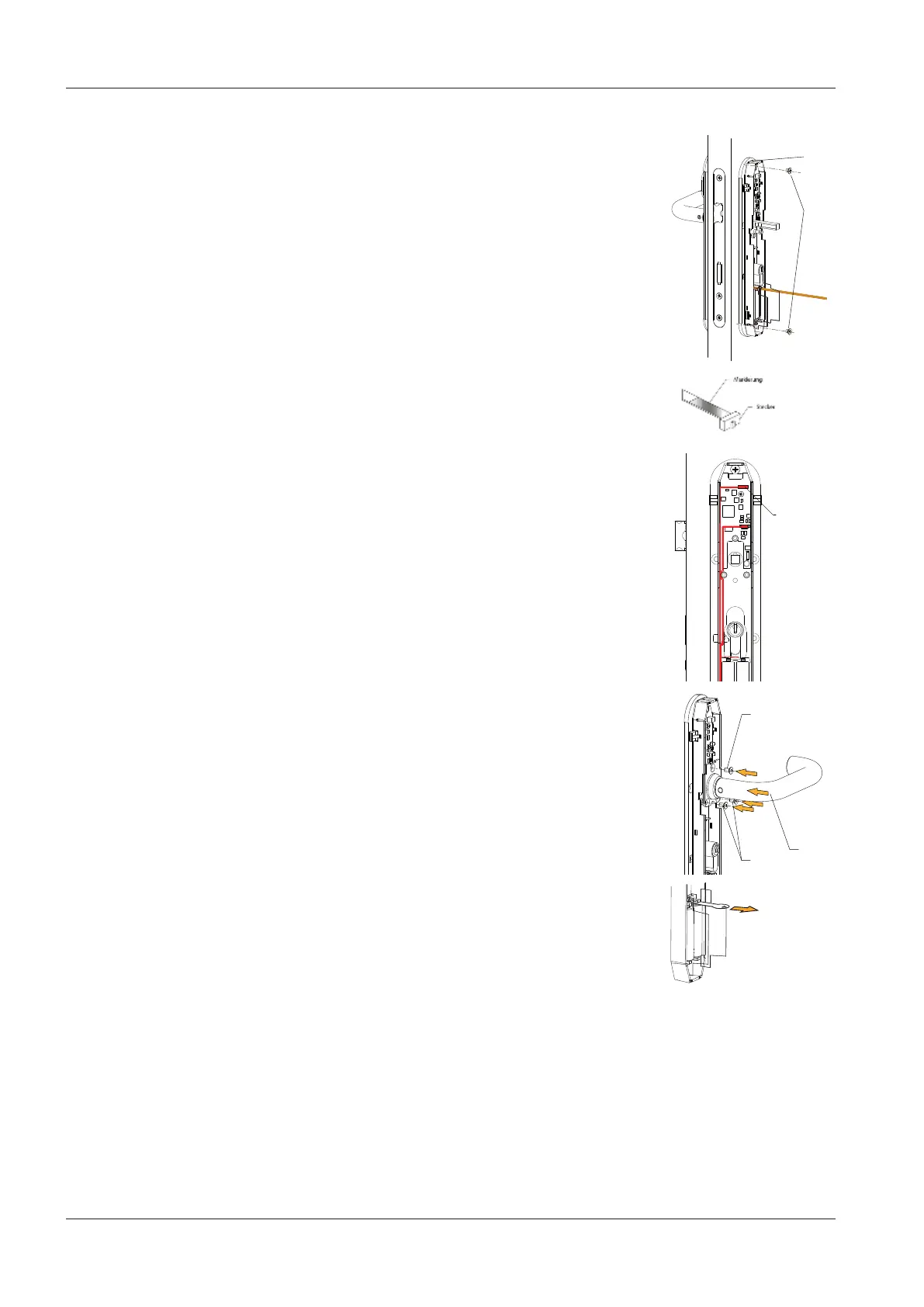

Note: do not trap the antenna cable.
Place the internal fitting (26) on the spindle and lock
cylinder.
42
26
6. Secure the internal fitting and support plate for the
inside shield using two fixing screws (42).
7. Mount the antenna plug using crimping tool as
shown.
8. Insert the antenna cable plug into the socket (59) of
the e-module for the internal fitting.
59
9. Place the inside lever handle (17) on the spindle.
17
48
48
10. Secure the inside lever handle using three counter-
sunk screws M4 (48).
11. Insert batteries if necessary.
12. If batteries are already inserted, remove the contact
protection film.
13.
Slip the battery protection film [}7.1] between the
batteries.
