Kaba c-lever 2662-K5 User Manual

Installation Installation Manual
24 k2evo702 - 201610 Kaba c-lever and variants
Inserting the coupling unit

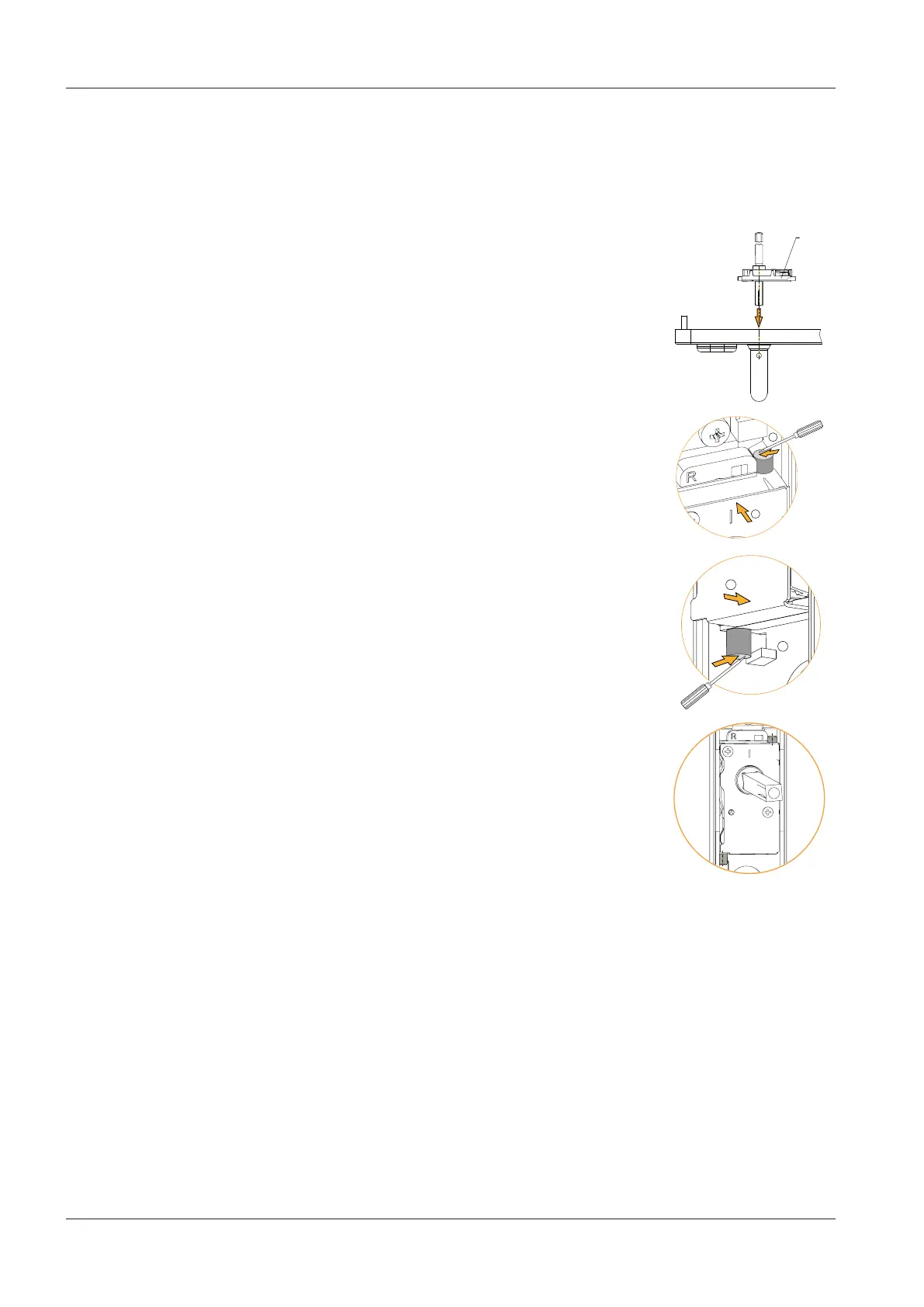

Procedure:
1. Turn the outside shield as shown.
2.
Note: do not trap the coupling unit cable and do
not bend the lugs in the outside shield.
Guide the spindle of the coupling unit (29) into the
square of the outside handle and insert the coupling
unit into the outside shield.
29
3.
Note: Place the coupling unit evenly and securely
in the outside shield.
Use a screwdriver to push the top cushion under the
lug (A) and push the top part of the coupling unit
into the outside shield (B).
B
A
4. Use a screwdriver to push the bottom cushion under
the lug (C) and push the bottom part of the coupling
unit into the outside shield (D).
C
D
Result:
The coupling unit is positioned evenly and securely in the
outside shield.

Kaba c-lever 2662-K5 Specifications

General

Brand	Kaba
Model	c-lever 2662-K5
Category	Door locks
Language	English
