Installation Manual Installation
21k2evo702 - 201610Kaba c-lever and variants
Part 2
Requirement:
• On the opposite side from part 1
• Mortise lock installed
Procedure:

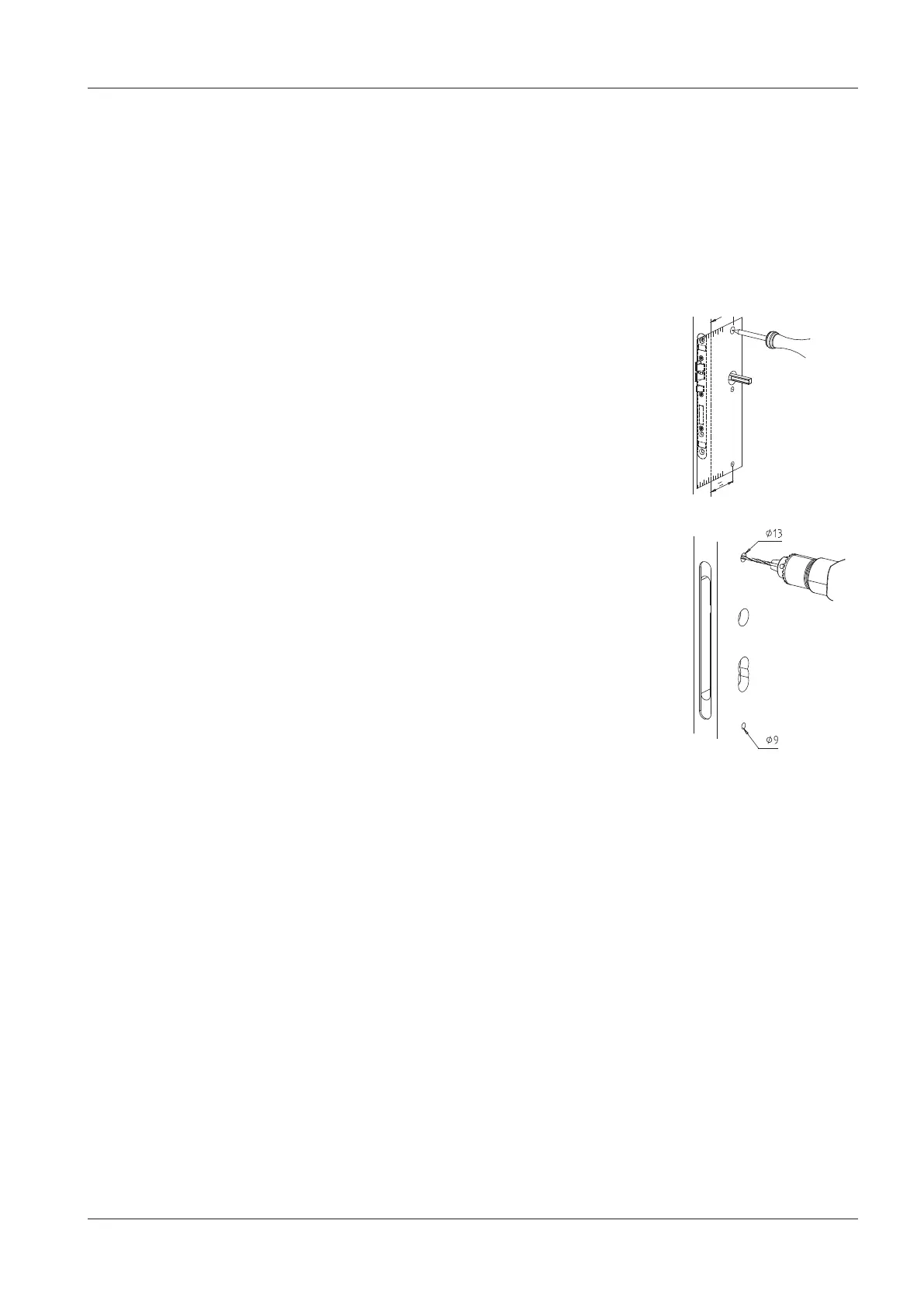

1. Place the spindle through the lock hub.
2. Position the drilling template over the spindle and
align it parallel to the forend.
3. Mark the drill holes.
ð Drill holes for the fastening holes are marked on
the door leaf.
4. Remove the mortise lock.
5. Use drill bit Ø13mm to drill the top fastening hole up
to the lock mortise.
6. Note: Only drill a fastening hole for the
c-lever ES1 variant.
Use drill bit Ø9mm to drill the middle fastening hole
up to the lock mortise.
7. Use drill bit Ø9mm to drill the bottom fastening hole
up to the lock mortise.
8. Clean the lock mortise.
9. Insert the mortise lock.
Result:
The fastening holes for the fitting are drilled on both sides
of the door.
