Kaba ILCO FDU - The Emergency Override; The Mechanical Override

Locks – Using and Programming
Kaba Ilco Lodging Access Control System 159
6. Insert the Programming keycard in the lock, and ensure the green indicator is lit.
Connect the communication cable between the FDU and the lock and press any
key on the FDU to send the programming to the lock.
The lock’s internal time is now set. Remove the communication cable from the
lock.
5.7 The Emergency Override
Locks are equipped with an override located behind the decorative medallion, for use in
an emergency. These overrides may be mechanical, or electrical in nature.

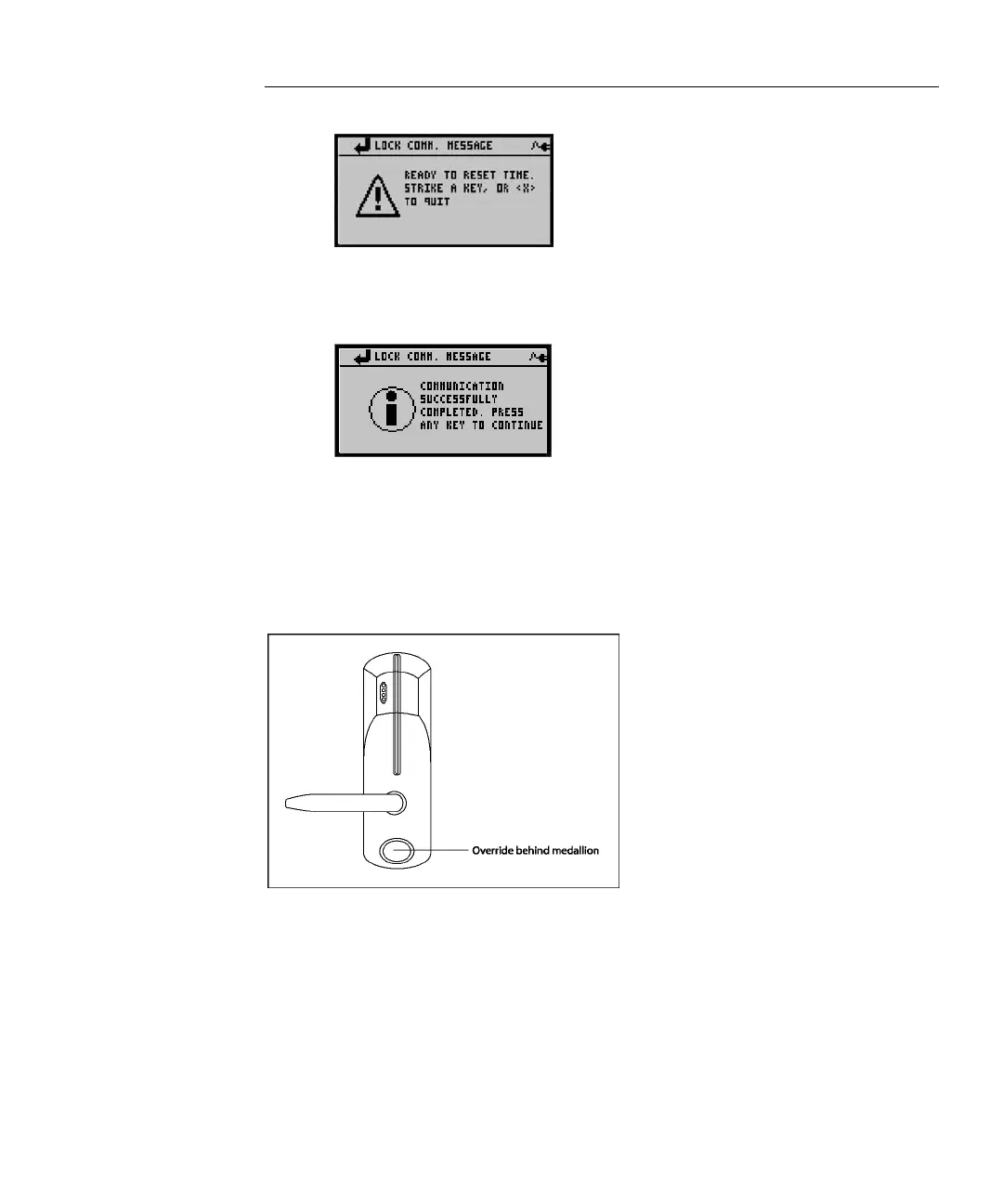

Figure 5.7: Override location.
Generation E-760 & 770 locks can be overridden electronically using the FDU and
communication cable, or by drilling the handle.
5.7.1 The Mechanical Override
Locks with a mechanical override are equipped with a highly pick-resistant key cylinder
which provides a mechanical bypass should the electronics fail. This cylinder is opened
