8.2 Online values
This section shows various measured values from the sensors
and counters that are connected to the analogue and digital
inputs. If inverters are connected to the RS485 interface, you
can also query the inverter values.
8.2.1 Analog/ Digital
Se ction 8 · Menu Description
Example:
The system consists of two sub-systems, which have separate
counters connected to the Powador-proLOG. To get the proper
totals, activate the two sub-counters for consideration under
“Admin Measurement >> Digital Channel Energy”

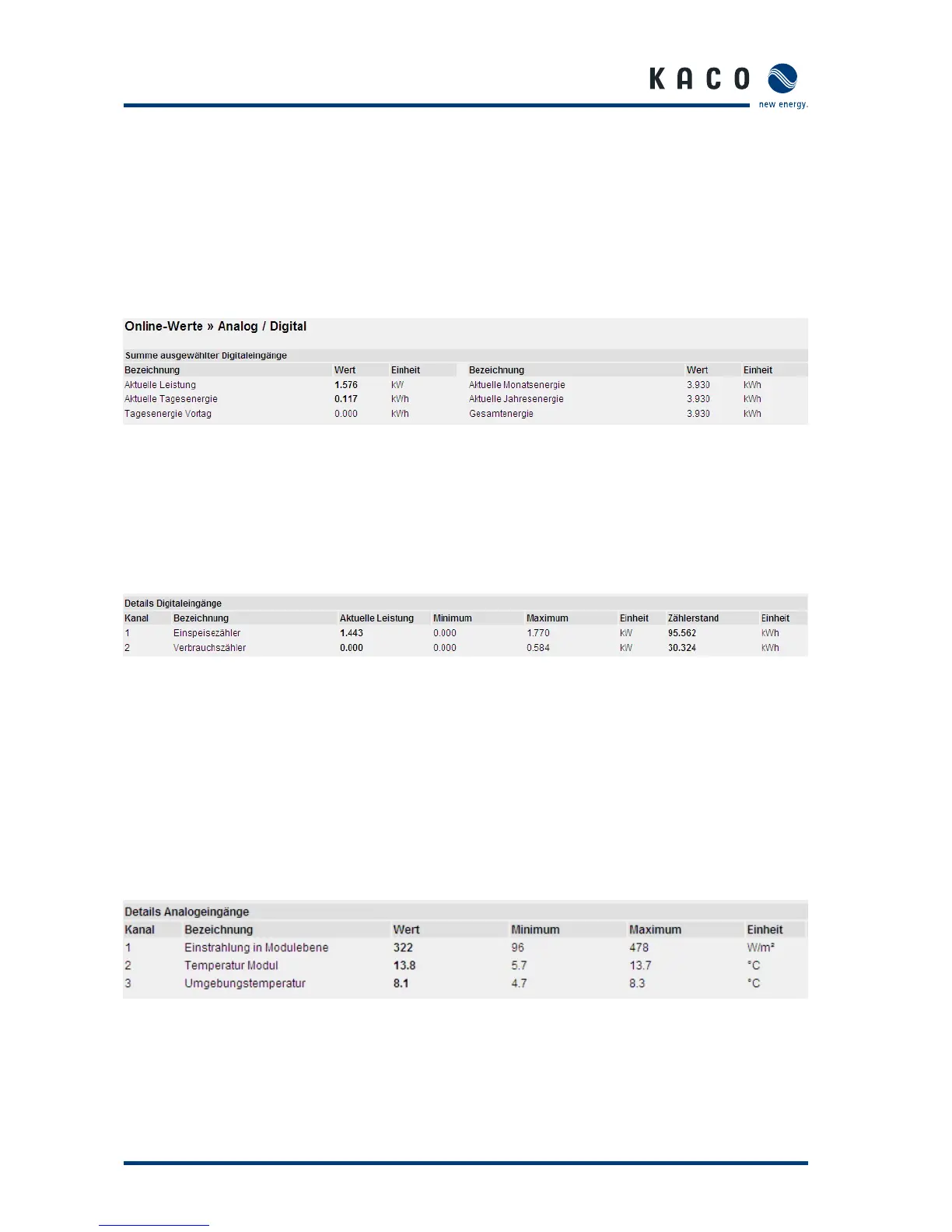

Details Digital Inputs:
An overview of the system’s overall energy production is pro-
vided here. You can define how this overall total is calculated
in the “Admin Measurement >> Digital Channel Energy”
This section lists the measured values for each digital input.
Current power
The pulse constant is used to convert counter pulses to the
corresponding power (displayed in kW) over a specified period
of time.
Minimum:
The lowest measured value for the current day
Details Analog Input :
Maximum:
The highest measured value for the current day
Meter reading :
This column shows the overall total for the measured pulses.
You can calibrate this display with the actual value on the
energy counter. See the “Admin Measurement >> Digital
Channels”
Analogue values are shown with channel number and desig-
nation. The following information is provided:
Value:
Current online value (updated every 10 seconds)
Minimum:
The lowest measured value for the current day
Maximum:
The highest measured value for the current day
