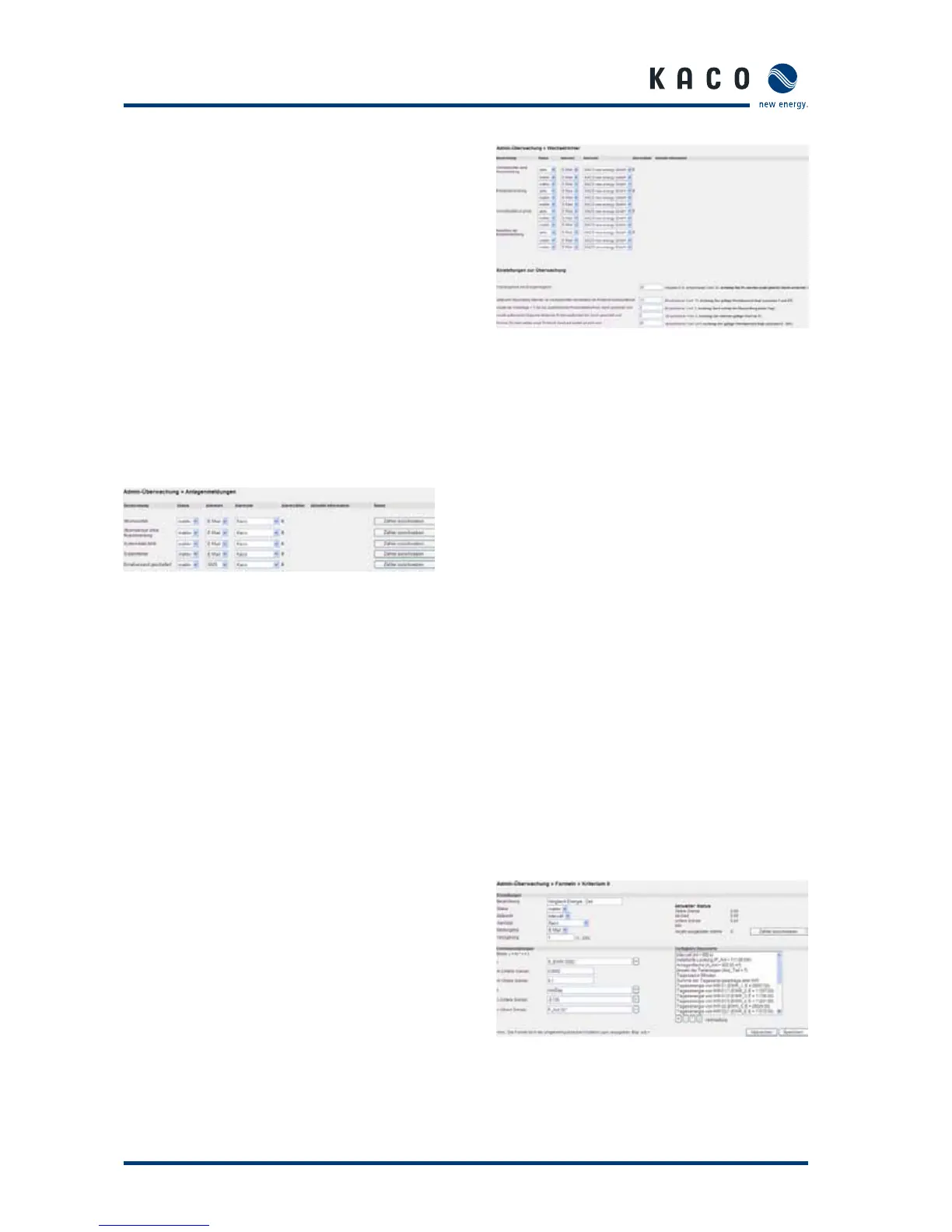

Page 4040 Operating Instructions Powador-proLOG_EN
Se ction 8 · Menu Description
8.5.4 Plant Messages
Plant Messages only pertain to information or faults in the
monitoring system itself. You can make the following settings:
– Status:
Set this criterion to inactive or active.
– Alarm Type:
Used for logging on to or registering on the computer
that was called.
– Alarm target:
Indicates the contact that is notified when an alarm is
triggered.
– Alarm Counter:
Indicates how often the respective alarm has already
occurred.
– Current Information:
Indicates when the last alarm was triggered.
– Reset:
Use the “Reset counter” button to reset the alarm
counter.
8.5.5 Inverters
This section contains settings for inverter monitoring. Alarm
notification is configured by indicating the alarm type (fax,
e-mail, SMS) and the alarm destination (three contacts simul-
taneously).
– Anomality file is too large:
– No response of inverter
This alarm occurs when an inverter does not answer.
– Energy yield deviation:
Only works if the correct DC rated powers of the invert-
ers have been entered.
– Anomality file is too large:
This file is used to record the status changes of the
inverters. The file is too big, because too many status
changes were recorded. An alarm message is trig-
gered.
– Tolerance limit for energy comparison :
This setting pertains to the “Energy yield deviation”
alarm type. The characteristic curves of the inverters
must remain within this range. The alarm is activated
when the upper or lower limit is exceeded.
– Time of check whether the inverter has answered at least
one protocol ):
The inverter(s) must have responded to the Powador-
proLOG at least once by the set time. Standard value: 13
(13:00).
– Number of winter’s days + 1 until an alarm will be trans-
ferred if protocol answer fails to come. :
– Number of subsequently missing protocol answers until an
alarm will be sent:
– PACmin [%] with the last received protocol in order to iden-
tify a communication failure
8.5.6 Formulas
This section includes settings for defining the various criteria
for monitoring the system.
You can define the following parameters in the Settings sec-
tion:
– Designation:
Enter the name of the criterion here.
– Status :
Set this criterion to inactive or active.
– Date/Time:
Analysis on an interval/daily basis
– Alarm target:
Indicates the contact that is notified when an alarm is
triggered.
– Message type:
Indicates the type of message (e-mail/fax).
– Delay:
Indicates how many intervals/days to wait before a mes-
sage is issued when the criterion is in an alarm condi-
tion.
– Number of triggered alarms:
Indicates the number of alarms that have been regis-
tered.
– Reset Counter:
Use this option to reset the counter (for alarms that have
already occurred) to zero.
The Formula Settings are defined using reverse Polish nota-
tion. An example showing how to set a criterion is provided in
section 9 (“Configuration Example”).
