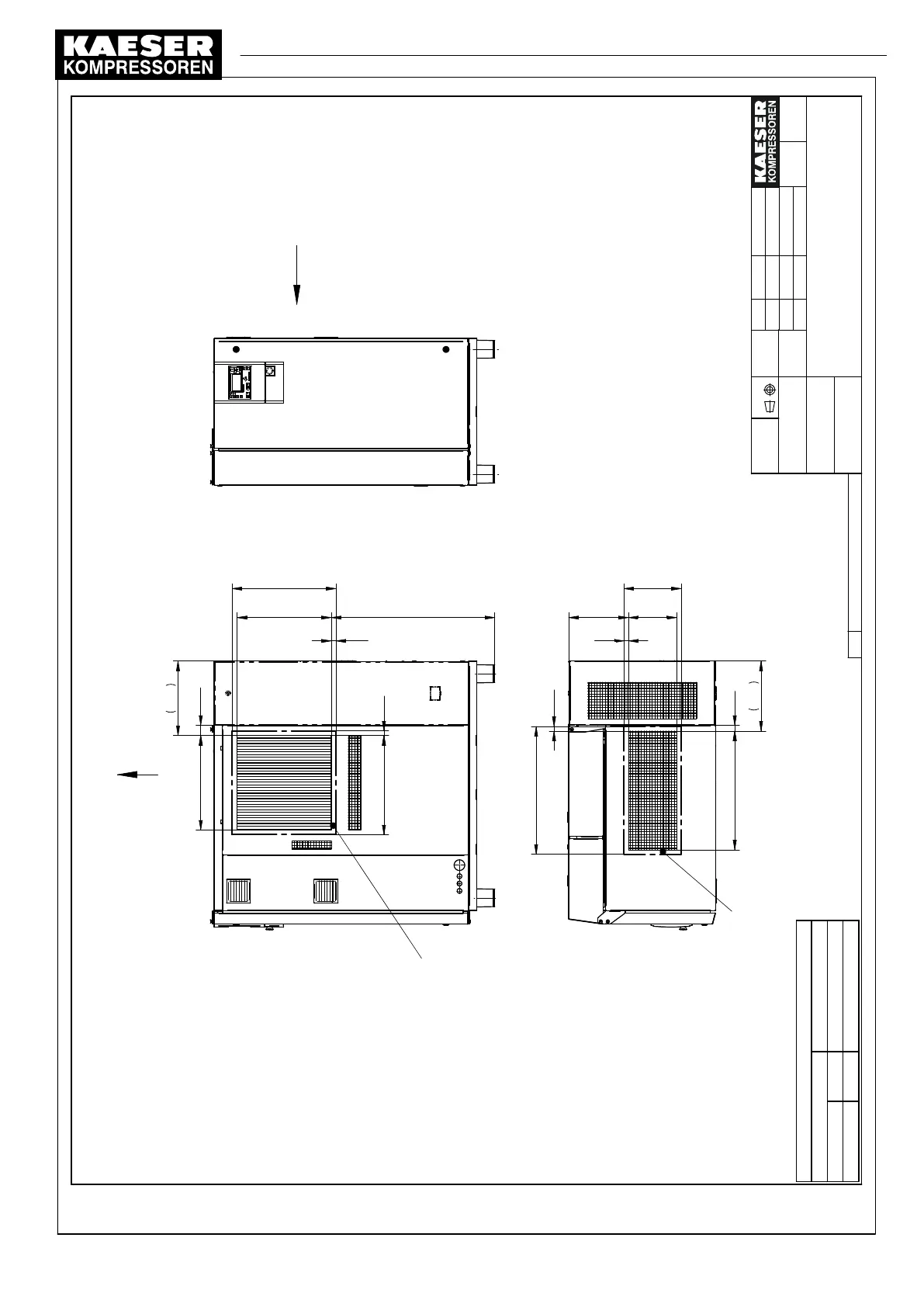

Connection, dp cool. air duct
1:15
SCHUBT4
ROEBLITZ1
ROEBLITZ1
08.01.2014
02.01.2014
ASK.3 K1
14.11.2013
1 / 1
10260361 E 00
A3
Stand 17.10.2013
10260361 D 00
Change number
Projection
Scale
Date
Name
Language Sheet
Released
Edited
Drawn
Designation
Status
Document TZD
Document TZM
Original
Drawings remain our exclusive property.
They are entrusted only for the agreed upon purpose.
Copies or any other reproduction, including storage, treatment and distribution by use of electronic systems is not allowed for any other than the agreed upon purpose.
Neither originals nor reproductions may be given to or made available to third parties.
Subject to development-related changes.
Drawing may be altered only via CAD.
Air coolingK1
Outlet: cooling air
Inlet:
cooling air
.
.
ASK 28/34 : V = 4.000m³/h
ASK 40 : V = 5.000m³/h
max. drilling depth
15mm
max. drilling depth
15mm
890 514
56514
405
25
565
25540
326262
25
312
32646
382
25
696
.
.
ASK 28/34 : V = 3.300m³/h
ASK 40 : V = 4.300m³/h
with filtermats
ASK 28/34
∆
p max
.
60 Pa (6 mm water column)
ASK 40 ∆
p max
.
40 Pa (4 mm water column)
Total permissible pressure loss for installed ducting
