KAESER ASK Series - Ventilation; Pressure; Fig. 1 Maximum Relative Humidity of Intake Air; Tab. 8 Overview Ventilation (50 Hz)

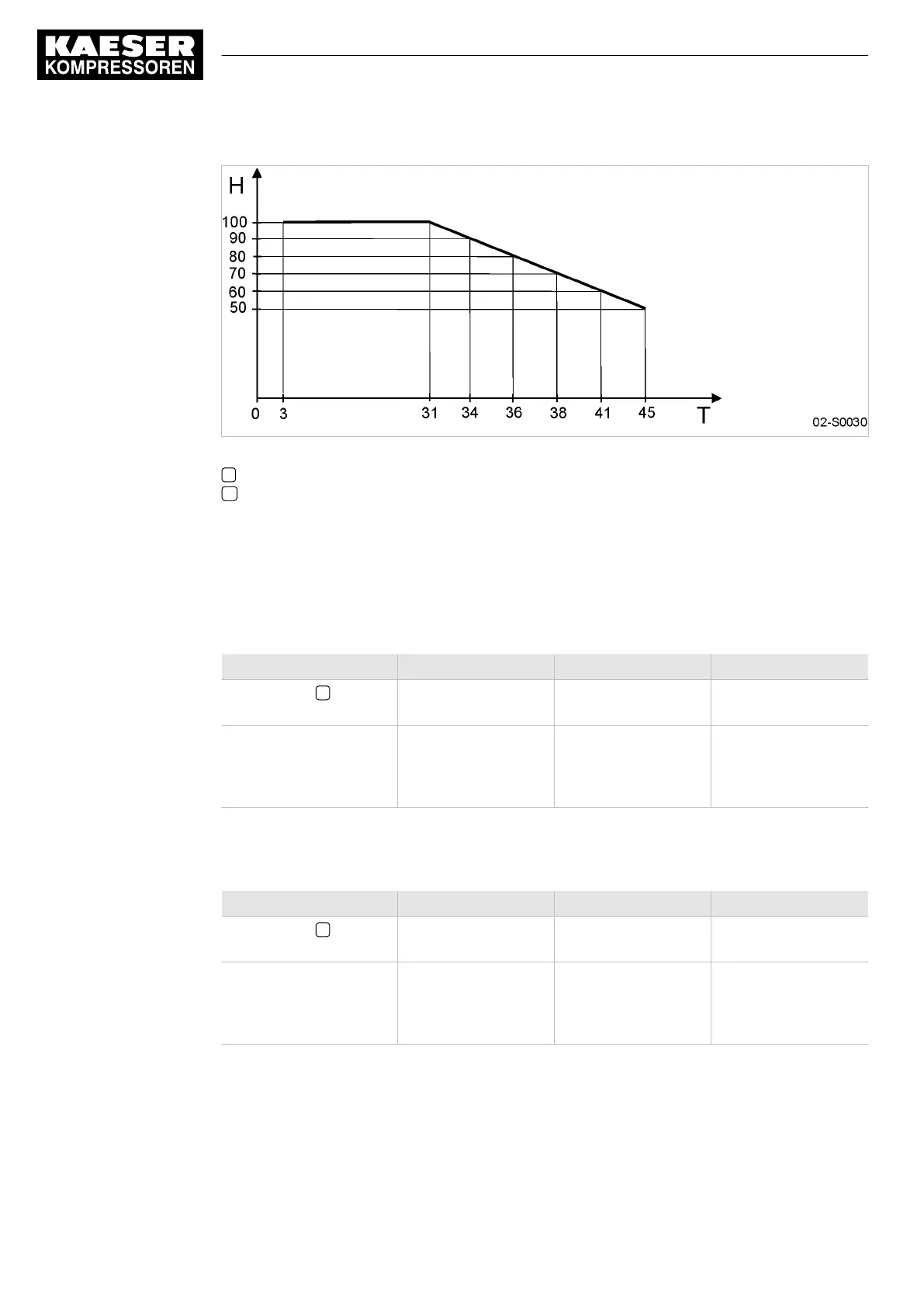

Fig. 1 Maximum relative humidity of intake air
T Intake air temperature [°C]
H Maximum relative humidity of intake air [%]
2.6 Ventilation
The values given are minimum guide values.
Mains frequency: 50 Hz
ASK 28 ASK 34 ASK 40
Inlet aperture Z see fig‐
ure 10 [m
2
]
0.5 0.5 0.6
Forced ventilation with
exhaust fan:
Flow rate [m
3
/h] at 100
Pa
6000 7500 9000
Tab. 8 Overview Ventilation (50Hz)
Mains frequency: 60 Hz
ASK 28 ASK 34 ASK 40
Inlet aperture Z see fig‐
ure 10 [m
2
]
0.5 0.5 0.6
Forced ventilation with
exhaust fan:
Flow rate [m
3
/h] at 100
Pa
6000 7500 9000
Tab. 9 Overview Ventilation (60Hz)
2.7 Pressure
Maximum working pressure: (see nameplate)
2 Technical Specifications
2.6 Ventilation
6
