4 Design and Function
4.1 Enclosure

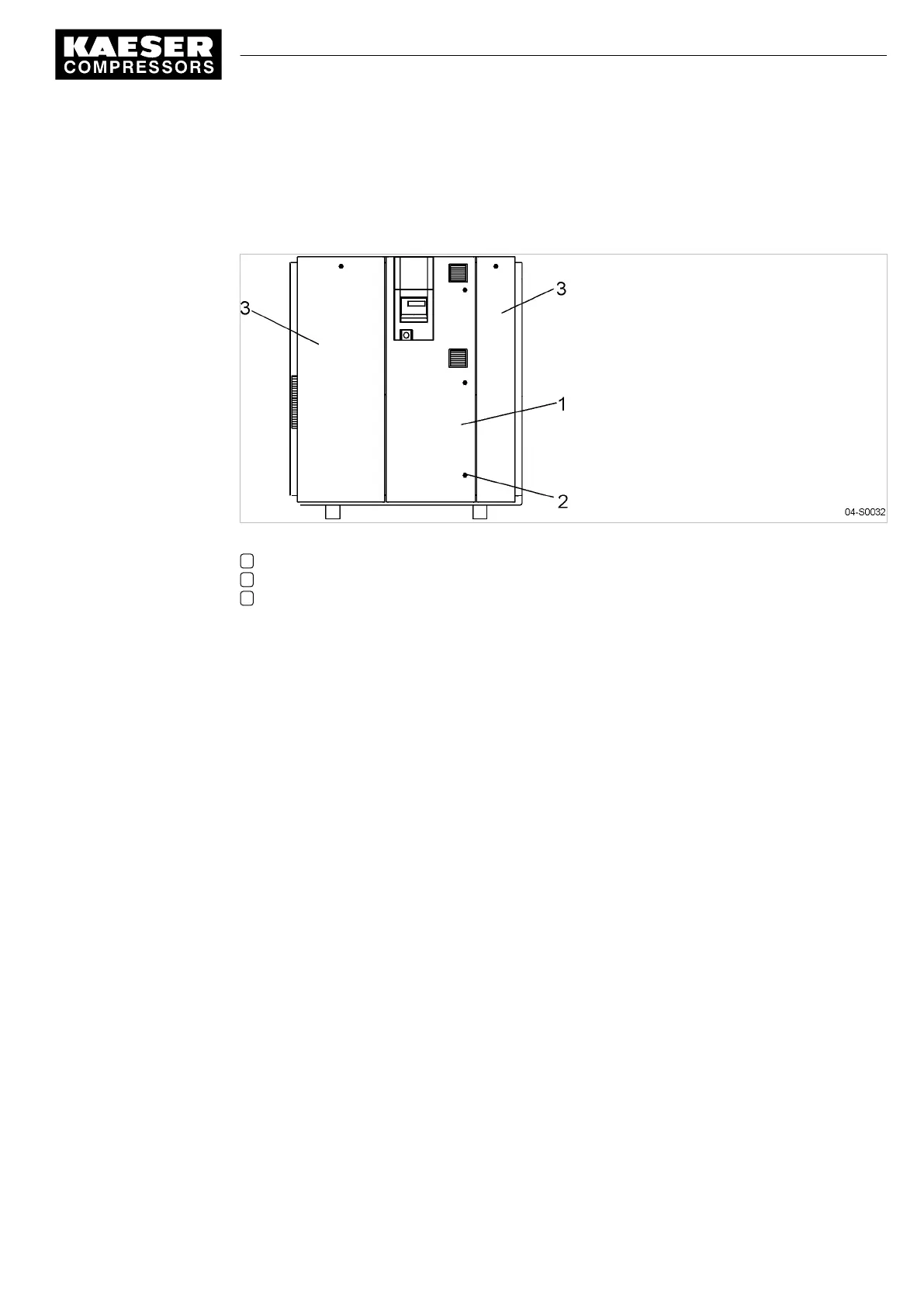

Fig. 3 Enclosure overview
1 Control cabinet door
2 Latch
3 Panel (removable)
The enclosure, when closed, serves various functions:
■ Sound insulation
■ Protection against contact with components
■ Cooling air flow
The enclosure is not suitable for the following uses:
■ Walking on, standing or sitting on.
■ As resting place or storage of any kind of load.
Safe and reliable operation is only assured with the enclosure closed.
Access doors are hinged to swing open and removable panels can be lifted off.
Latches are released by a key supplied with the machine.
4.2 Functional Description of the Machine
Functional description using an air-cooled machine as an example.
4 Design and Function
4.1 Enclosure
9_5708 08 USE
Service Manual Screw Compressor
BSD
25

KAESER BSD 50 Specifications

General

Model	BSD 50
Category	Rotary Screw Compressor
Motor Power	30 kW
Noise Level	69 dB(A)
Drive Type	Direct
