WARNING
There is risk of burns from hot components and oil.
➤ Wear long-sleeved clothing and gloves.

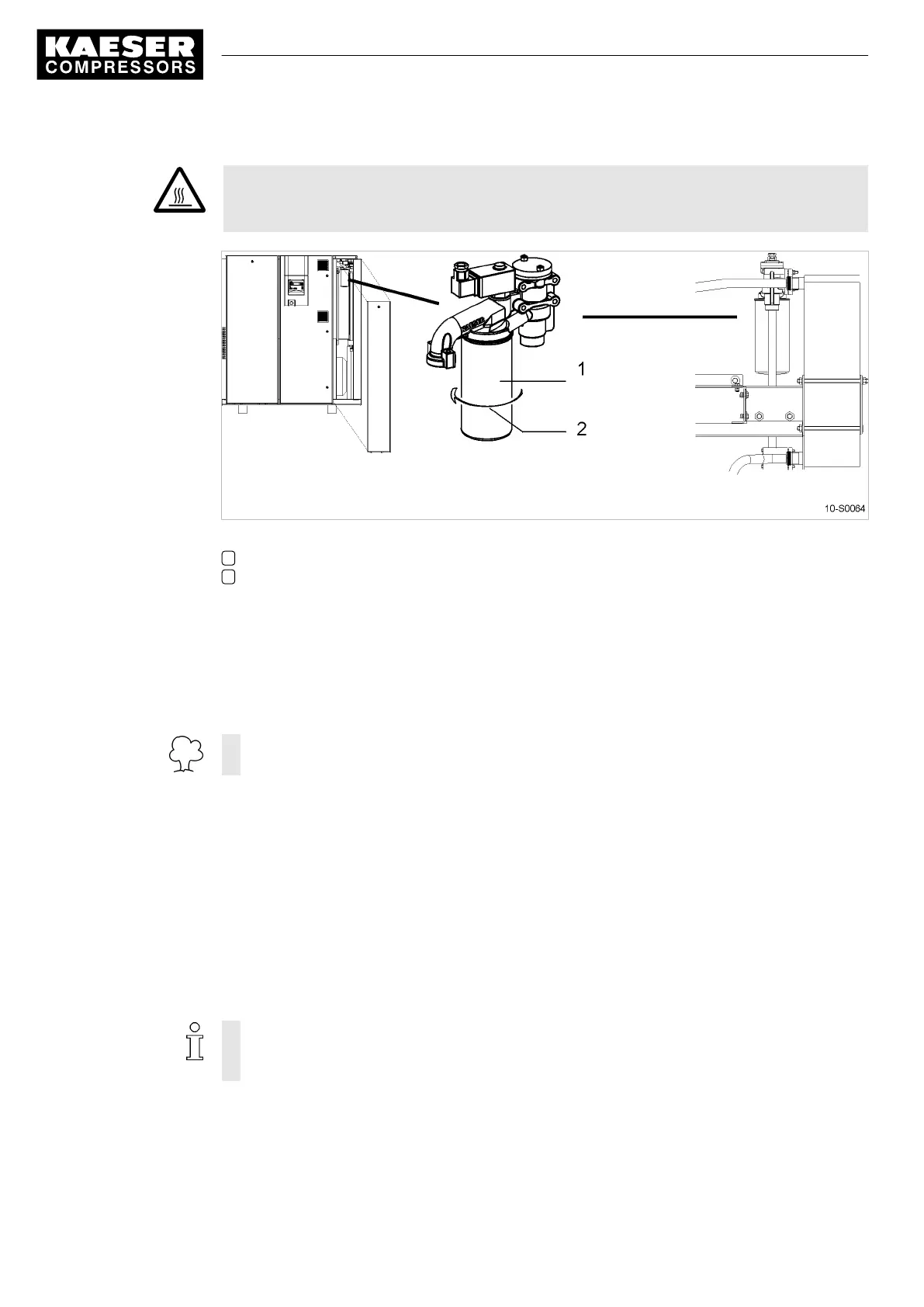

Fig. 37 Changing the oil filter
1 Oil filter
2 Direction to unscrew
Changing the oil filter
1. Unscrew the oil filter counter-clockwise, catch oil spillage and dispose of in accordance with
environmental protection regulations.
2. Lightly oil the new filter's O-ring.
3. Turn the oil filter clockwise by hand to tighten.
➤ Dispose of parts and materials contaminated with oil in accordance with environmental
protection regulations.
Start the machine and carry out a test run
1. Close all access doors; replace and secure all removable panels.
2. Open the user's shut-off valve between the machine and the compressed air system.
3. Switch on the power supply and reset the maintenance interval counter.
4. After about 10 minutes, check the oil level again and top up if necessary.
5. Switch off the machine and visually check for leaks.
10.18 Changing the Oil Separator Cartridge
The machine must be isolated from the compressed air system and completely vented before
undertaking any work on the pressure system.
The oil separator cartridge cannot be cleaned.
