DANGER
Danger of suffocation from toxic exhaust fumes.
Exhaust fumes from internal combustion engines contain carbon monoxide, which is odour‐
less and deadly.
➤
Use the machine only outdoors!
➤ Do not inhale exhaust fumes.
CAUTION
Danger of burns from hot components and sparks.
➤
Wear long-sleeved clothing and gloves.
➤ Wear eye protection.

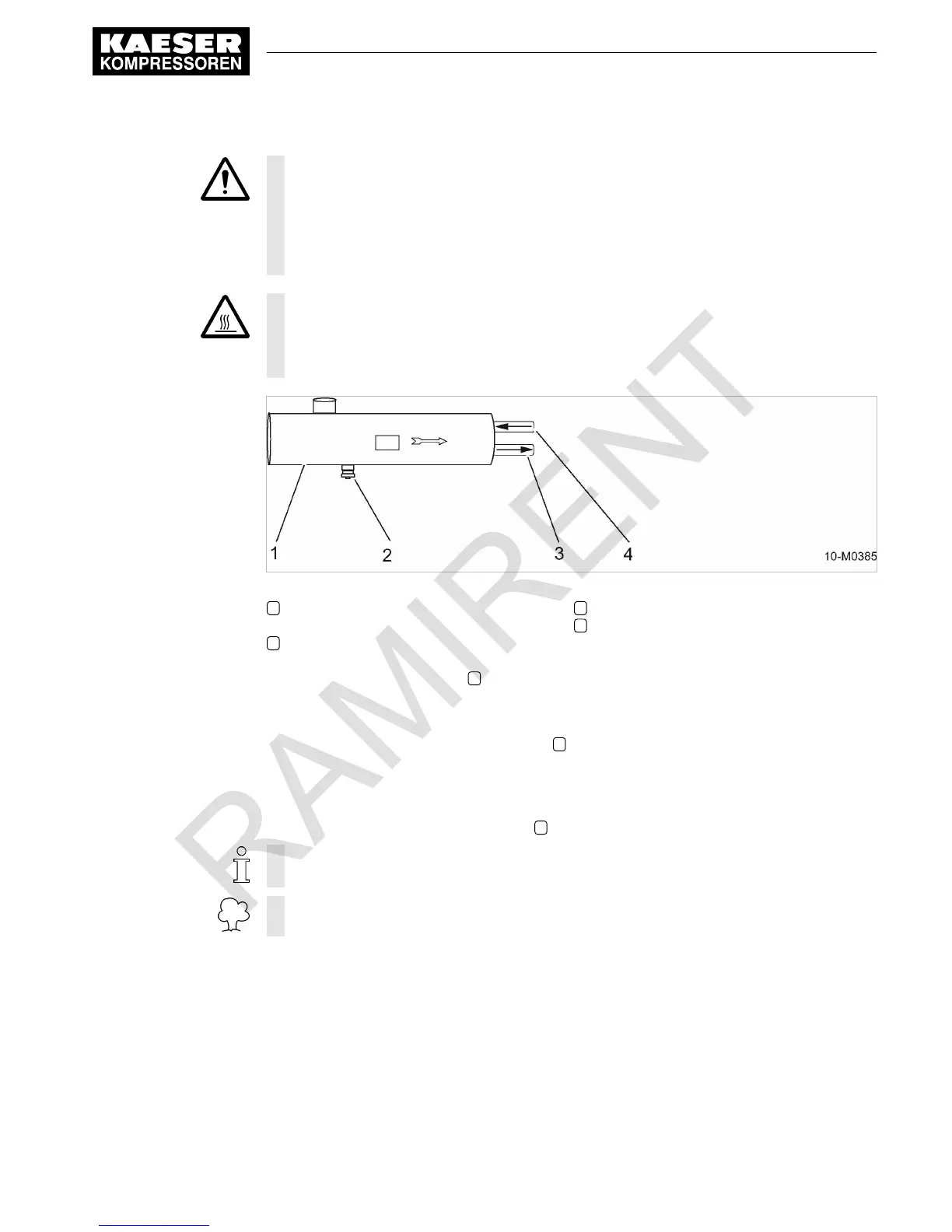

Fig. 43 Spark arrestor cleaning
1 Exhaust silencer with integrated spark ar‐
restor
2 Soot drain plug
3 Exhaust discharge pipe
4 Exhaust inlet pipe
1. Unscrew the soot drain plug 2 .
2.
Push one end of the hose over the drain port and place the other end in the receptacle.
3. Start the compressor engine.
4. Partially cover the exhaust discharge pipe 3
to increase pressure in the exhaust system.
Result Soot will drain through the hose into the receptacle.
1. Shut down the engine.
2.
Remove the hose and replace the plug 2
.
It is recommended to blow out the spark arrestor with compressed air once a year.
Dispose of soot according to environment protection regulations.
