KAESER M43 - Fig. 15 Changing from Eye to Ball Coupling (Fixed Height Towbar with Overrun Brake)

2. If necessary, use a metal rod to adjust until the hole is flush with the sleeve 3 .
3.
Push the ball coupling 5
on to the towbar 6 .
4.
Check the alignment of the holes in the towbar tube 6
and coupling 5 .
5.
Push the fixing bolts 2
through the holes in the coupling 5 and towbar tube 6 .
6.
Screw on and tighten the self-locking nuts 4
.
6.3.3.4 Option se
Changing a fixed height towbar with overrun brake from eye to ball coupling

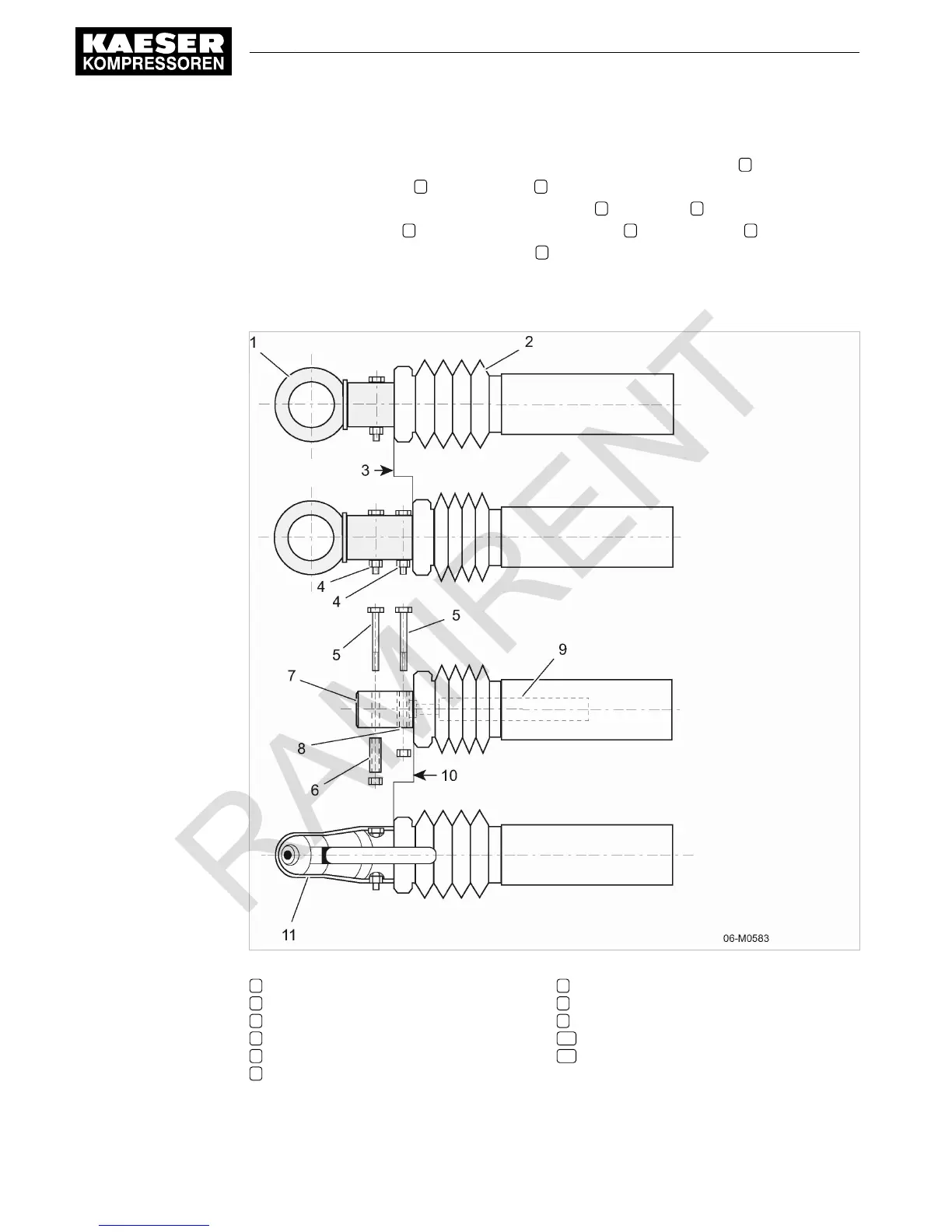

Fig. 15 Changing from eye to ball coupling (fixed height towbar with overrun brake)
1 Towing eye
2 Protective sleeve
3 Direction of arrow: to expose the bolts
4 Self-locking nut
5 Screw
6 Sleeve
7 Towbar tube
8 Bushing overrun damper
9 Overrun damper
10 Direction of arrow: to cover the bolts
11 Ball coupling
6 Installation
6.3 Adjusting the chassis
48
Service Manual Screw Compressor
M43 No.: 9_9432 02 E
