6.3.3.3 Option sd
Changing a fixed height towbar from eye to ball coupling

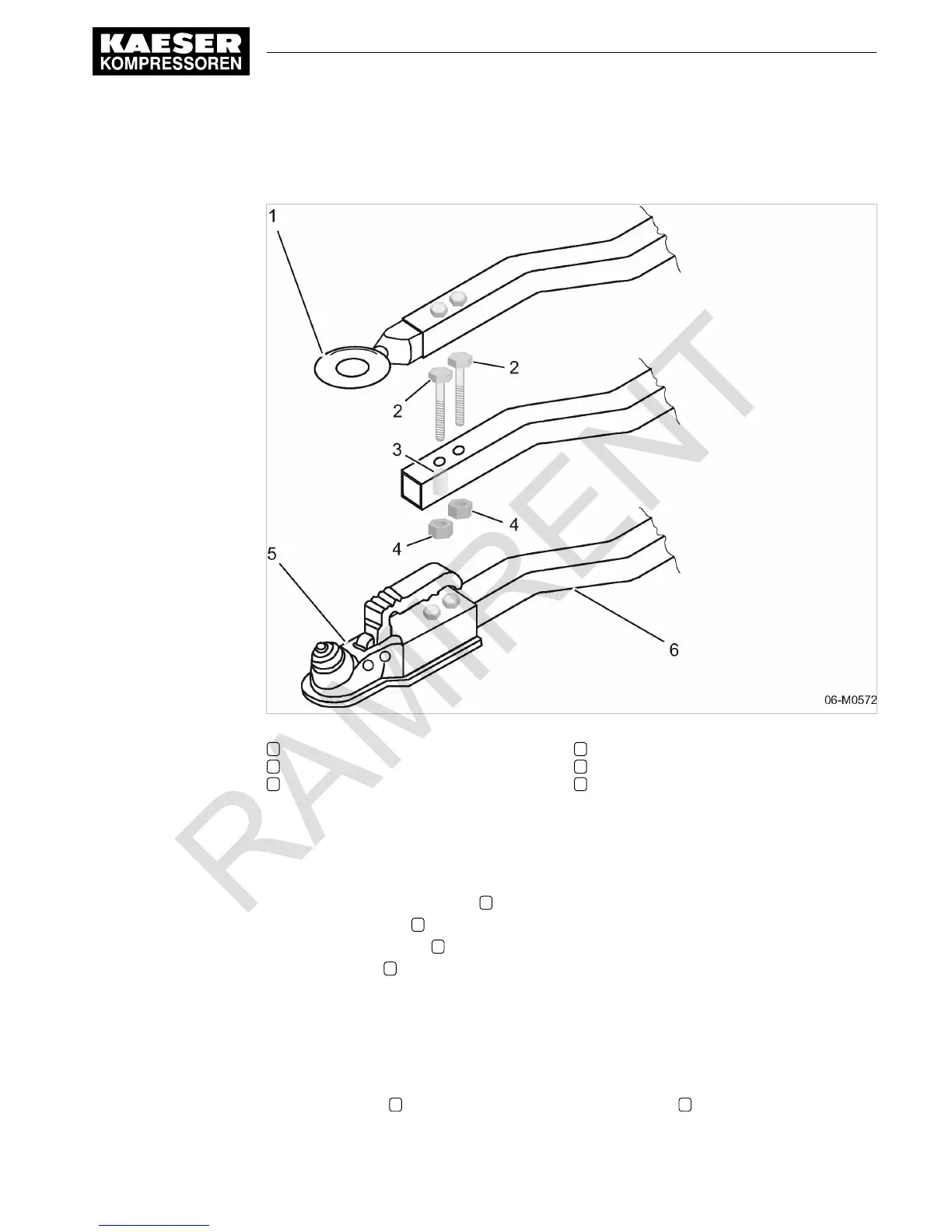

Fig. 14 Change from eye to ball coupling (fixed height towbar)
1 Towing eye
2 Screw
3 Sleeve
4 Self-locking nut
5 Ball coupling
6 Towbar tube
➤ Check that the ball coupling to be fitted is complete.
➤
Proceed as illustrated.
Removing the towing eye
1. Loosen and remove both nuts 4
.
2.
Remove both bolts 2
.
3.
Pull off the towing eye 1
.
4.
Secure sleeve 3
.
Fitting the ball coupling
Precondition The towing eye has been removed.
The assembly condition as shown in the centre graphic in
14 has been achieved.
The complete ball coupling is to hand.
1. Position sleeve 3
on the corresponding hole within the towbar 6 .
6 Installation
6.3 Adjusting the chassis
No.: 9_9432 02 E
Service Manual Screw Compressor
M43
47
