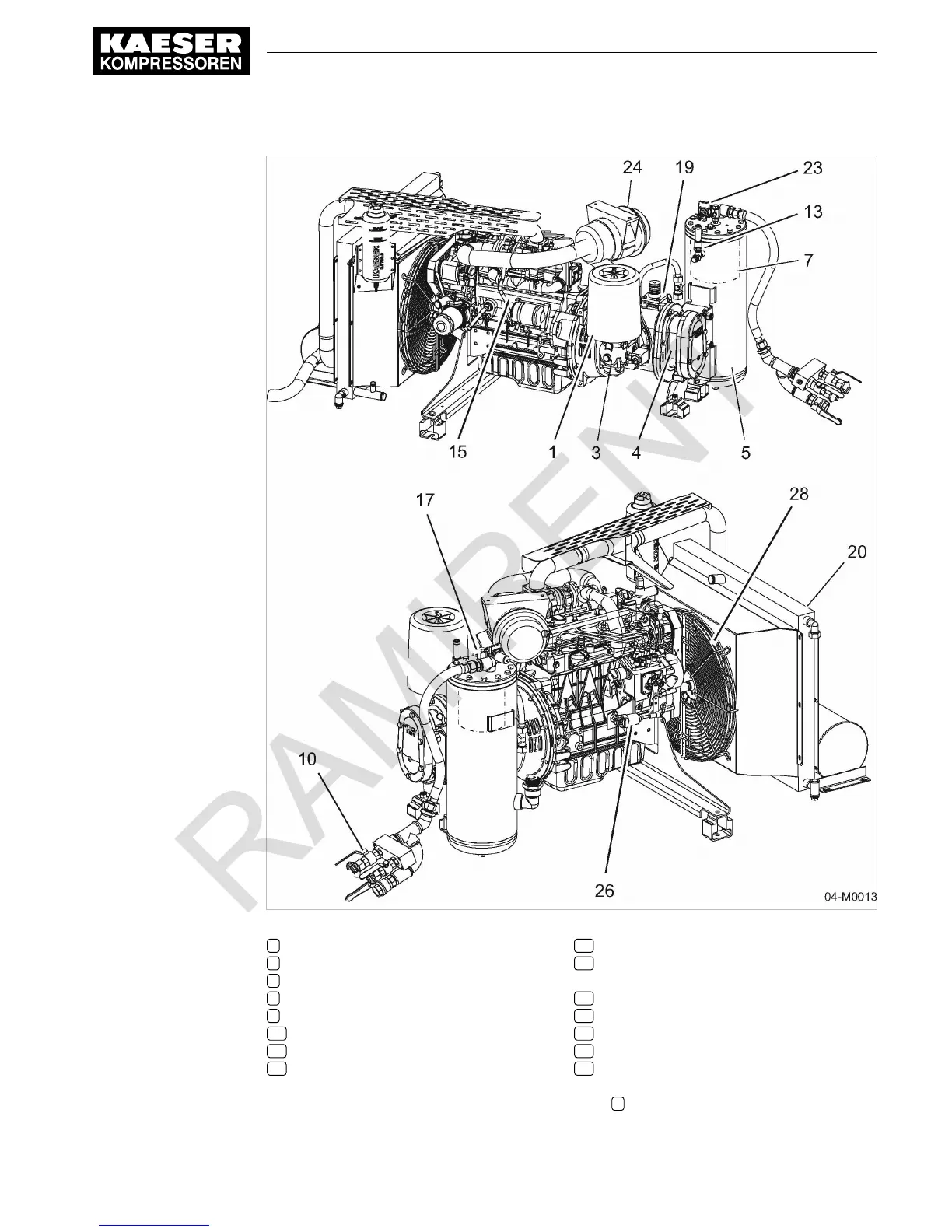

Fig. 4 General design
1 Compressor air filter
3 Inlet valve
4 Airend
5 Oil separator tank
7 Oil separator cartridge
10 Compressed air distributor
13 Pressure relief valve
15 Engine
17 Dirt trap
19 Thermostatic valve (oil temperature con‐
trol)
20 Oil cooler
23 Proportional controller
24 Engine air filter
26 Engine speed control cylinder
28 Fan
Ambient air is cleaned as it is drawn in through the filter 1 .
4 Design and Function
4.3 Machine function
No.: 9_9432 02 E
Service Manual Screw Compressor
M43
27
