KAESER M43 - Fig. 12 Change from Eye to Ball Coupling (Height Adjustable Towbar)

6.3.3.1 Option sa
Changing a height adjustable towbar from eye to ball coupling
The eye coupling on the height adjustable towbar is replaced by a ball coupling.

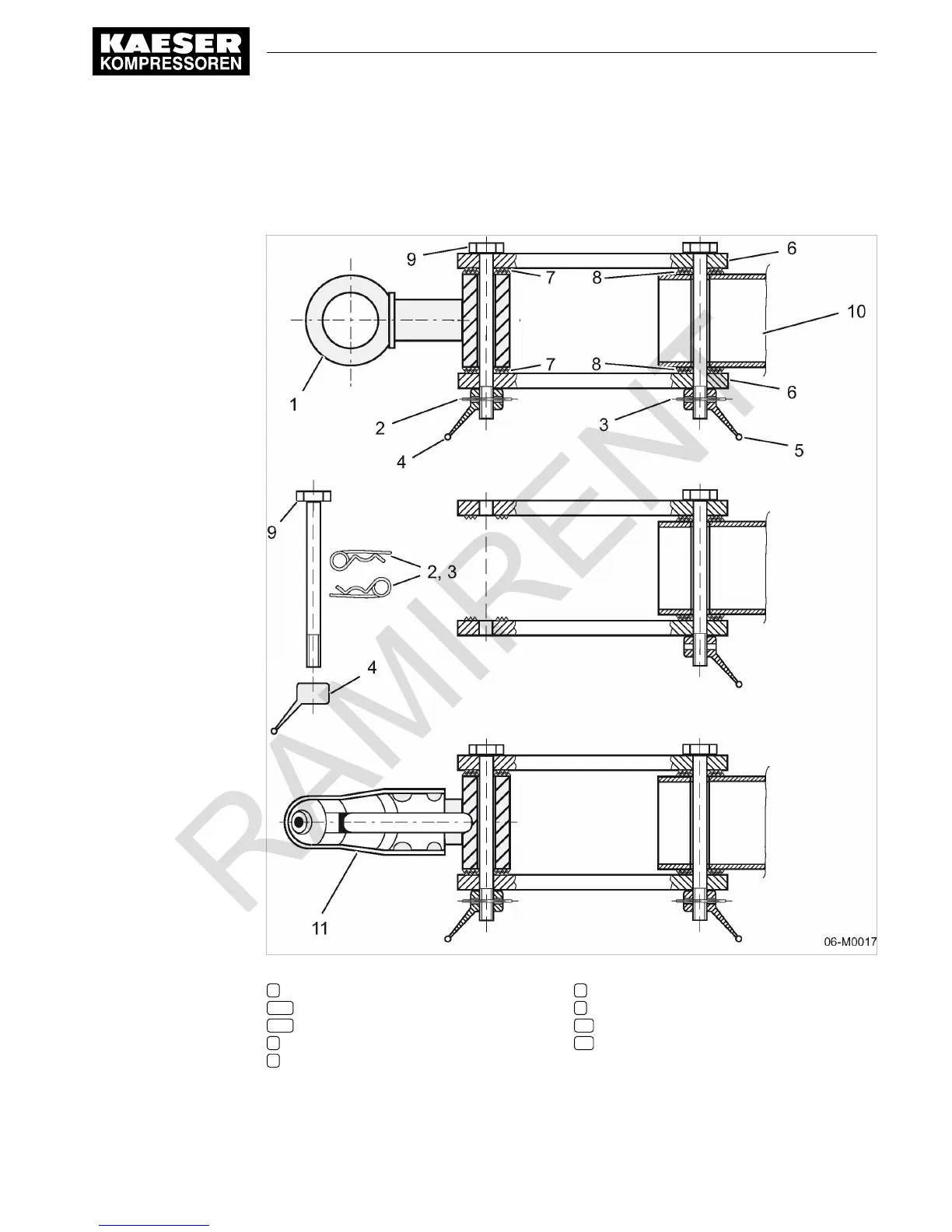

Fig. 12 Change from eye to ball coupling (height adjustable towbar)
1 Towing eye
2, 3 Split pin
4, 5 Locking lever
6 Side part
7 Serrated joint
8 Serrated joint
9 Hex-head bolt
10 Towbar tube
11 Ball coupling
